132

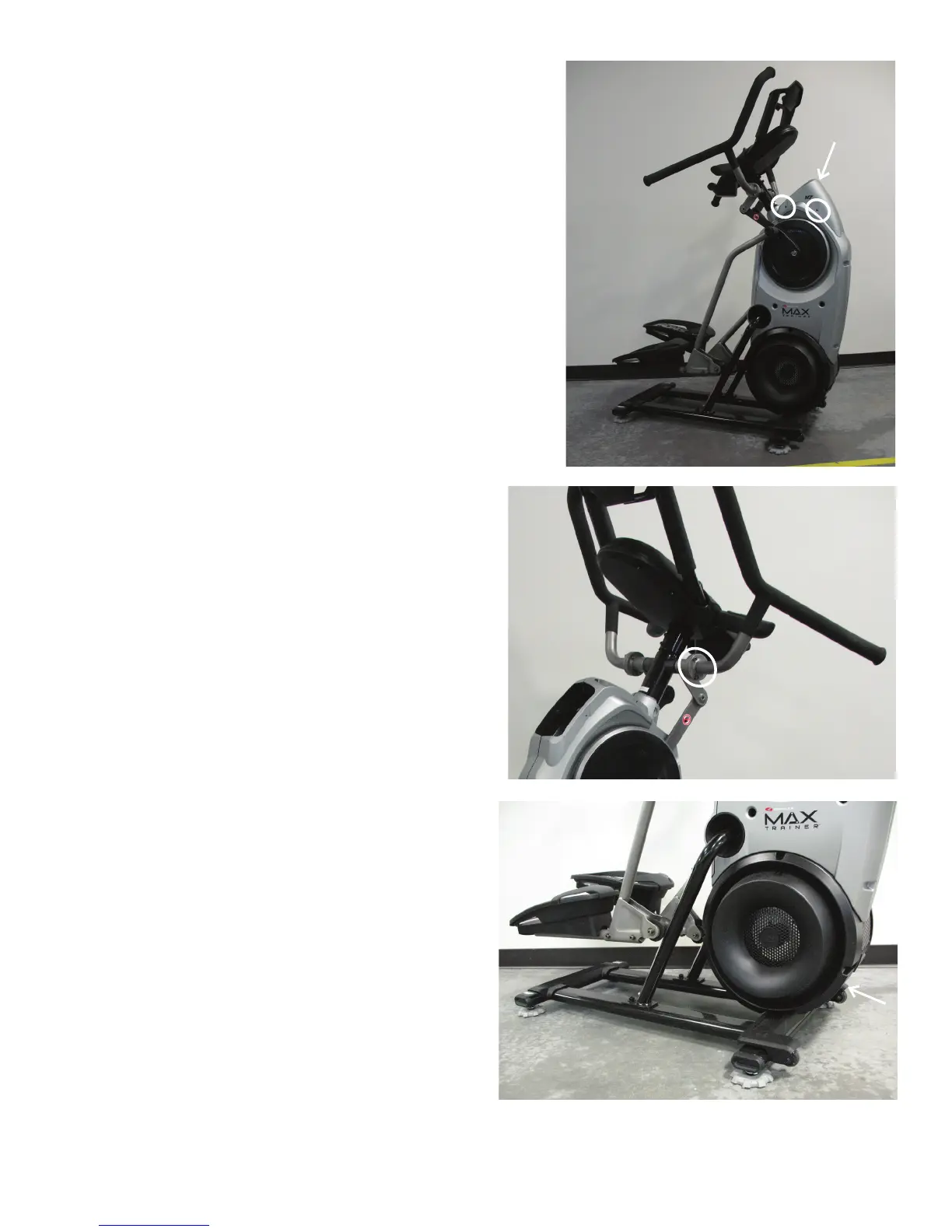

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a #2 Phillips screwdriver, remove the 4 screws (2 indicated on
one side) from the Upper Shroud and remove it.
3. Using a 5mm hex wrench, remove the indicated hardware from the Left
Upper Handlebar and remove it.
Note: Be aware that the Left Upper Handlebar must be supported when
removing the hardware.
4. Remove the Left Stabilizer Shroud from the machine.
Upper Shroud
To Next Page
