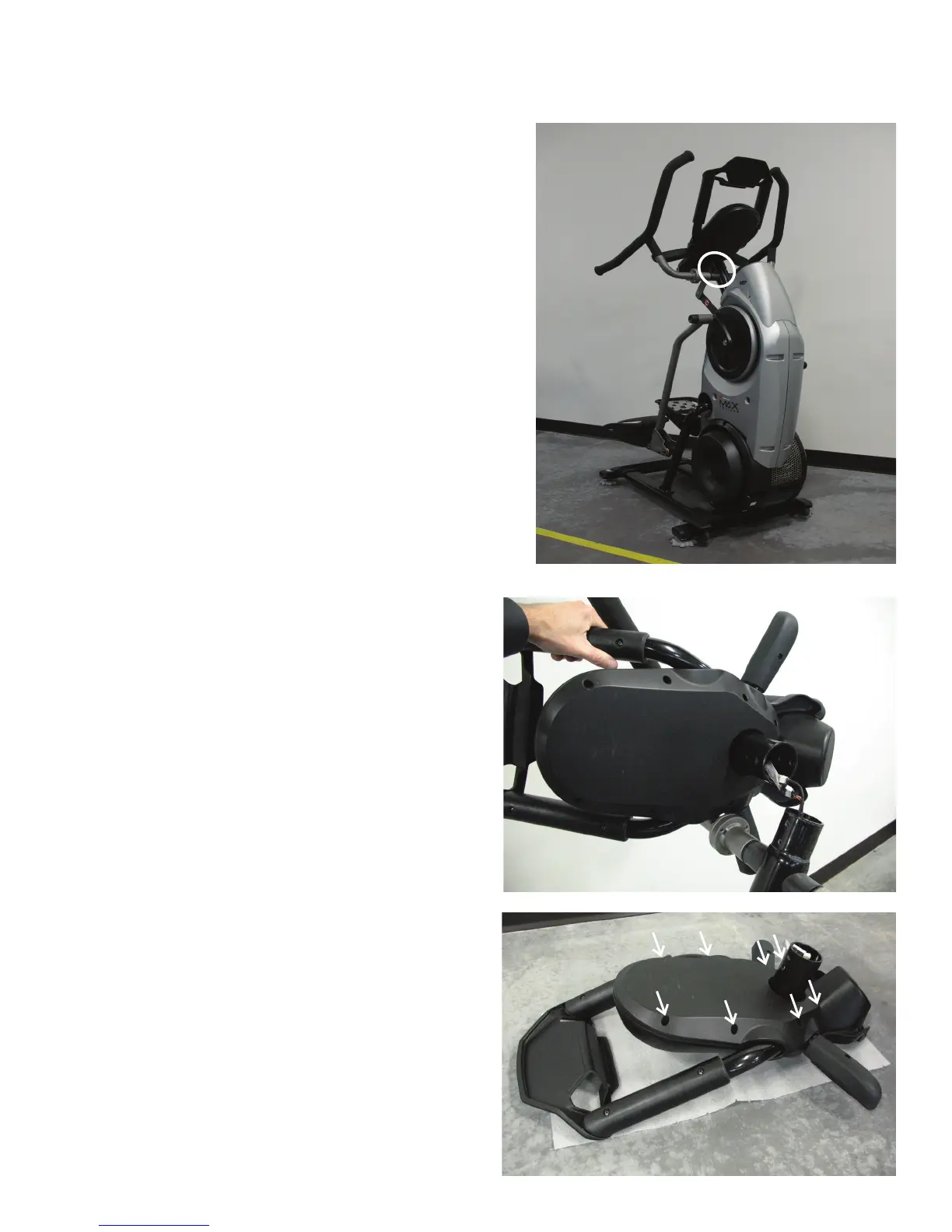

2. Using a 5mm hex wrench, remove the 4 screws (2 on each side of the
Console Mast) from the Console Assembly.
3. Carefully lift the Console Assembly and expose the Cable Connections.
Note: do not crimp any of the Console Cables. This step may require two
people.
4. Carefully disconnect the Cables while not allowing them to fall into the
Console Mast.
Note: do not crimp any of the Console Cables.
5. Using a #2 Phillips screwdriver, remove the 8 indicated screws from the
back of the Console, and remove the Console Backing.
1. Unplug the AC Adapter from the wall outlet and machine.
