Bowflex Max Trainer M7 - Page 55

55

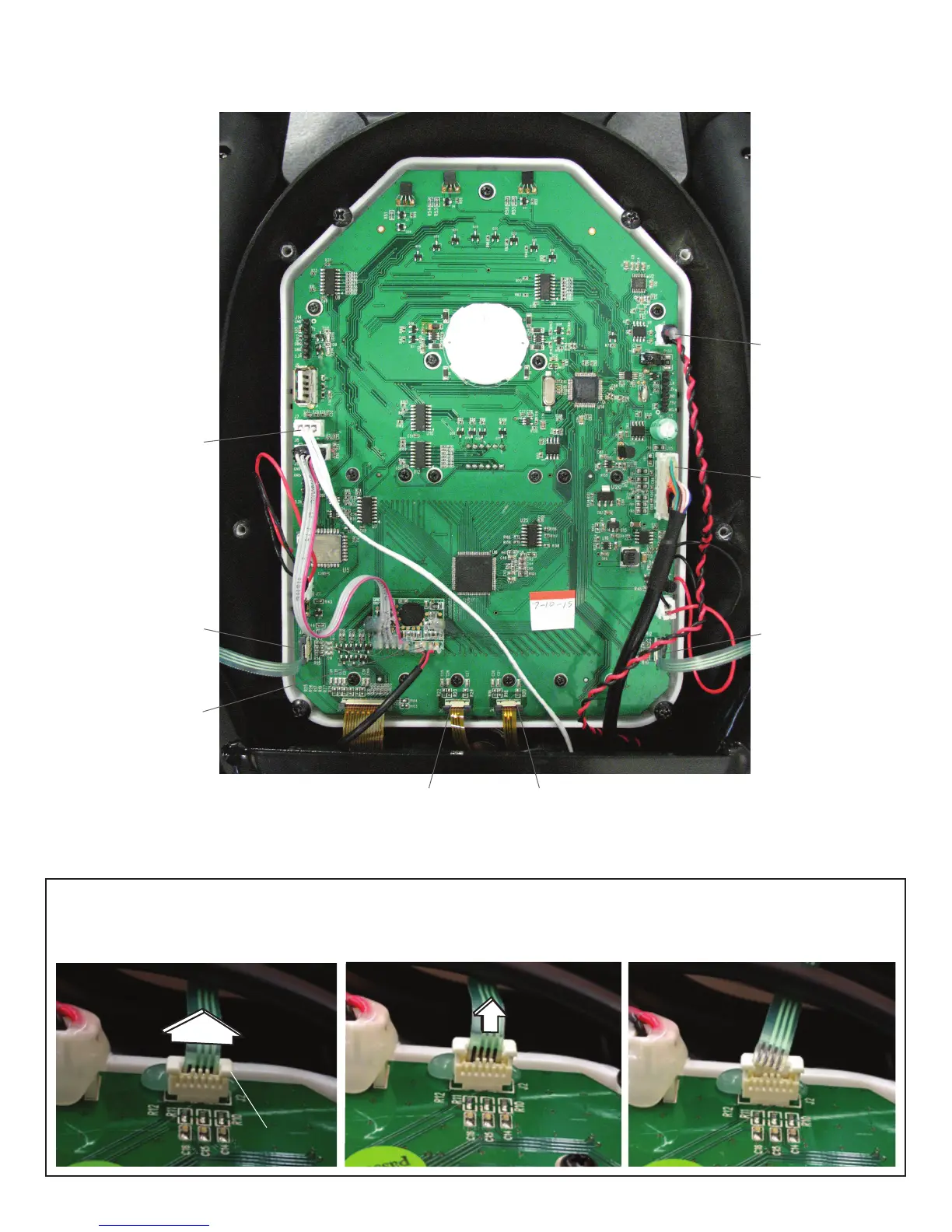

6. After noting their location for re-assembly, disconnect the indicated
cables from the Console Board.
Input/Output
Cable
Wireless Heart
Rate Module
Cable
Contact Heart
Rate
Speaker
Target Burn Rate
(Increase)
[ Zero Insertion Force (ZIF)
Connector ]
Target Burn Rate
(Decrease)
[ Zero Insertion Force (ZIF)
Connector ]
Resistance Level
(Increase)
[ Zero Insertion Force (ZIF)
Connector ]
Resistance Level
(Decrease)
[ Zero Insertion Force (ZIF)
Connector ]
Disconnecting the Zero Insertion Force (ZIF) Connectors:
A. Lift the retaining clip. B. Remove the cable. C. Cable is disconnected from connector.
Zero Insertion Force
(ZIF) Connector
