59

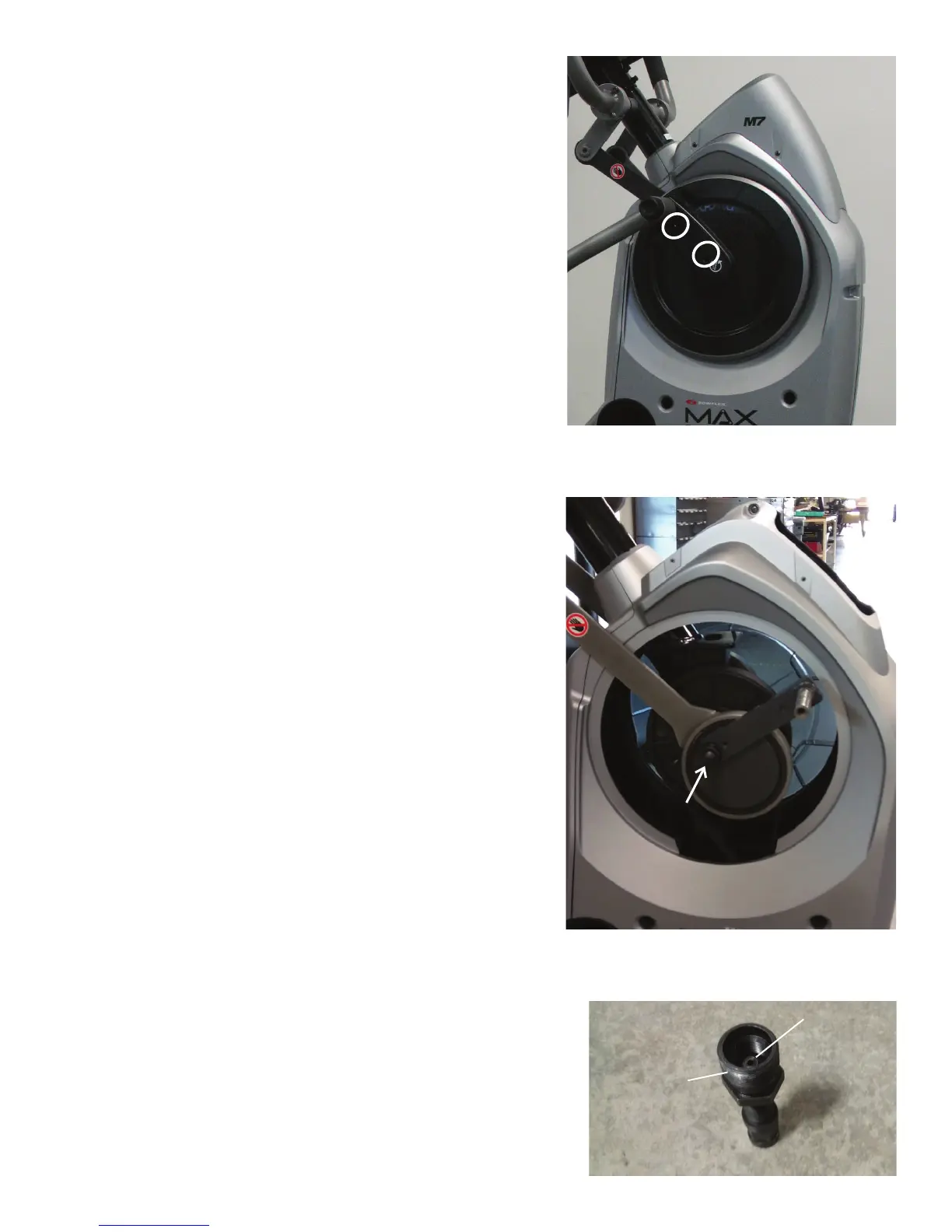

7. Using a #2 Phillips screwdriver, remove the 2 indicated screws
from the Crank Cover.
8. Remove the Crank Cover from the machine.
9. Using a 9/16” or 14mm socket and wrench, remove the indicated
nut from the Crank Assembly.
10. Adjust the Crank Puller until the end of the Bolt is inside the Nut
(as shown).
Bolt
Nut
Crank Cover
