74

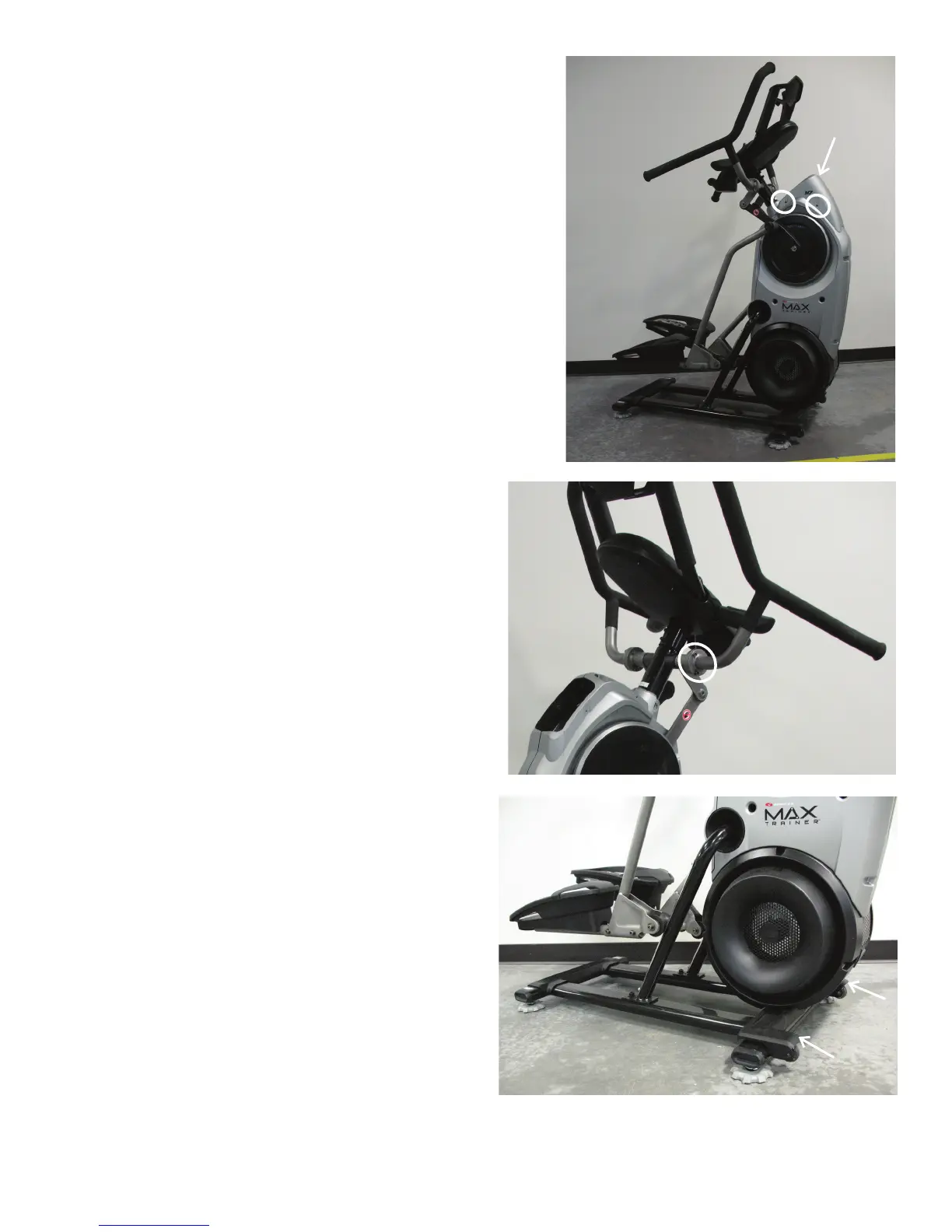

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a #2 Phillips screwdriver, remove the 4 screws (2 indicated on
one side) from the Console Assembly.
3. Using a 5mm hex wrench, remove the indicated hardware from the Left
Upper Handlebar.
Note: Be aware that the Upper Handlebar must be supported when
removing the hardware.
4. Remove the Right and Left Stabilizer Shrouds from the machine.
Upper Shroud
