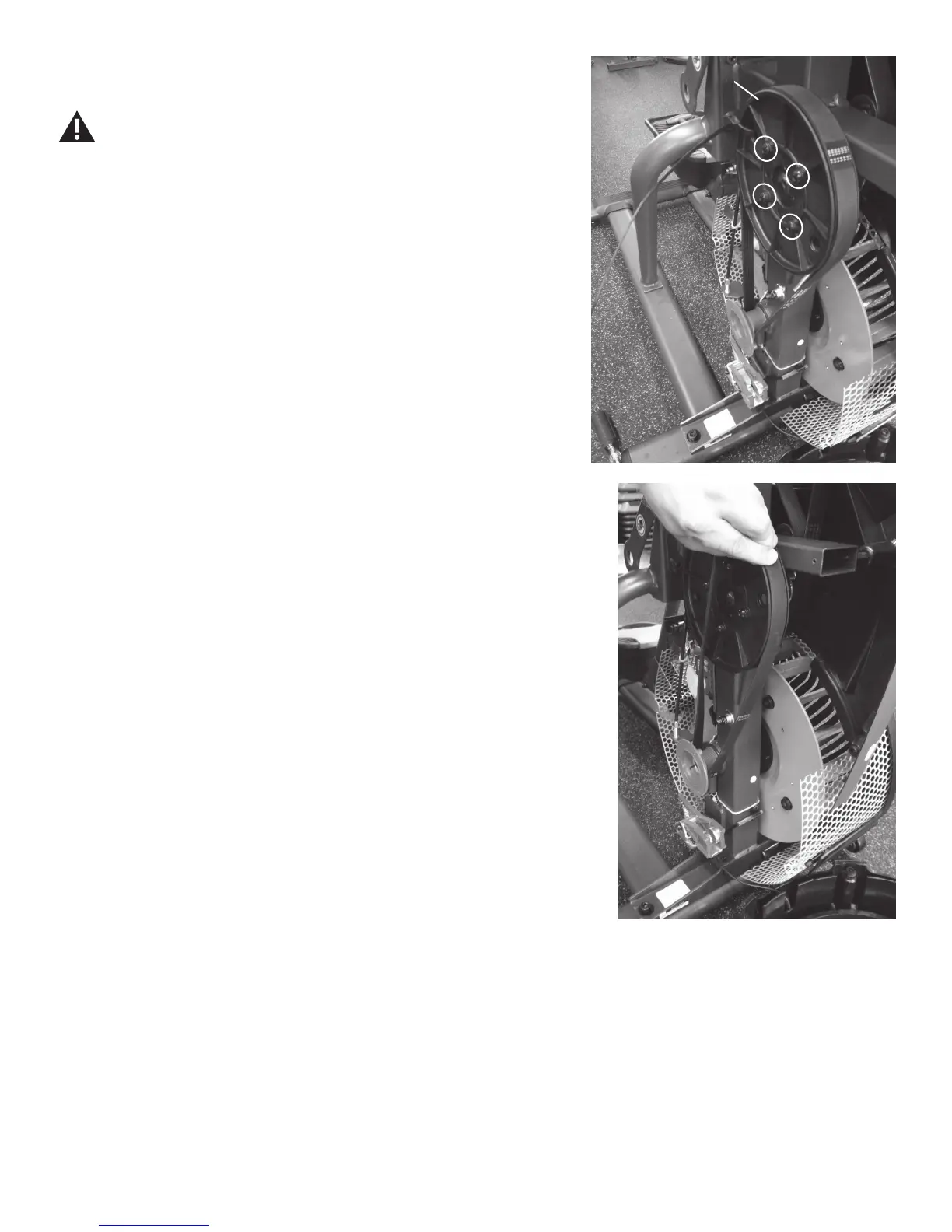

27. Turn the Fan Pulley while forcing the Fan Belt to the outside. Belt will come
off of the Fan Pulley.
Keep ngers out of any pinch opportunities when removing the
Fan Belt.
28. Using a 10mm wrench, remove the securing nuts (if present) from the back
side of the Drive Pulley.
29. Using a 5mm hex wrench, remove the four screws that attach the Fan Pul-
ley. Be sure to support the weight of the Fan Pulley when removing hardware
because it will fall.
30. Using a 5mm hex wrench, attach the new Fan Pulley to the Frame As-
sembly.
31. Loop the new Fan Belt around the lower Pulley and start it on the face of
the Fan Pulley.
32. Be sure the Fan Belt is centered on both pulleys.
Fan Pulley
