Bowflex MAX Trainer M9 - Parts

7

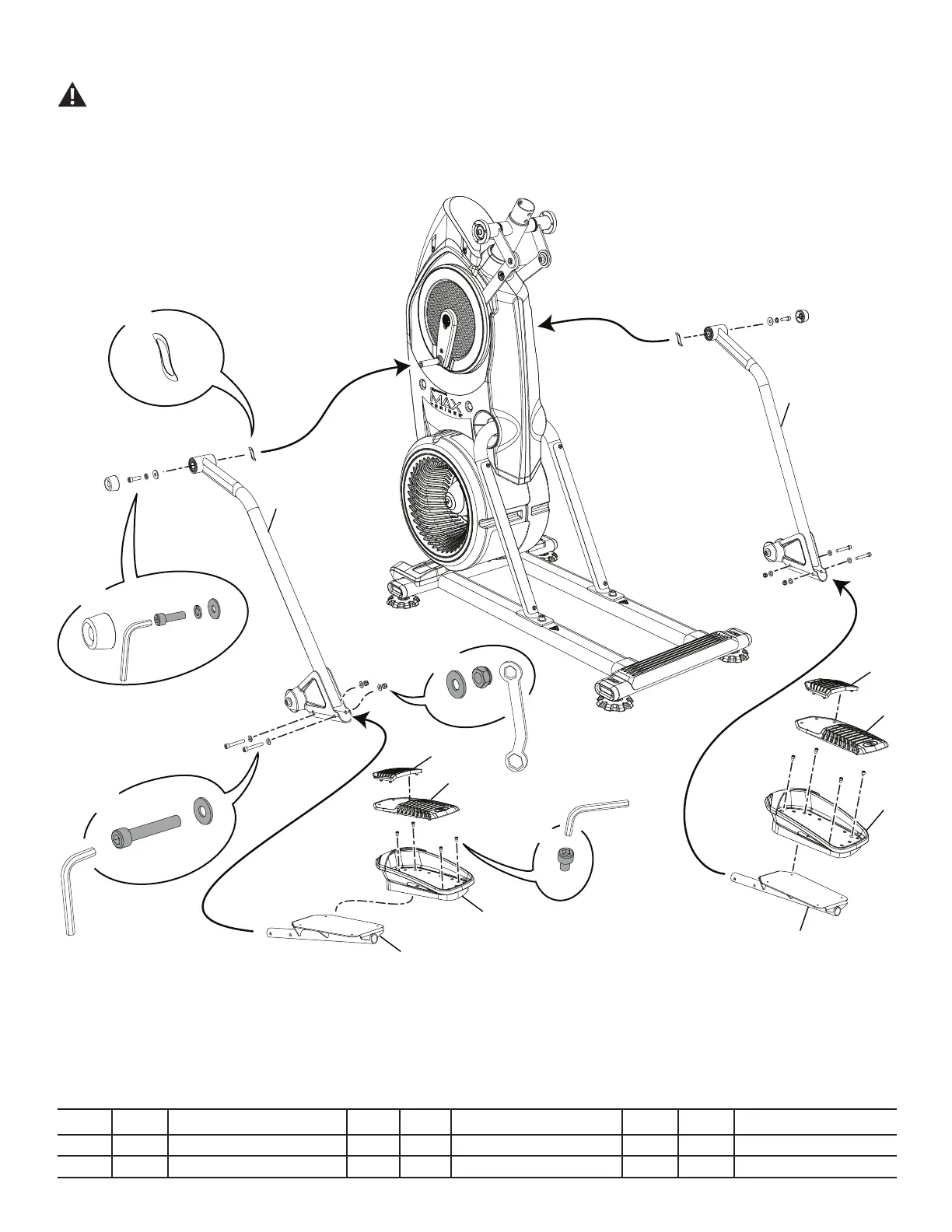

Step 3.
Be aware that the Legs are connected and when either of these parts move the other does as well. In order to avoid possible serious injury, when inserting the tube
ends into the Leg Assemblies be careful to avoid fingers or hands being caught or pinched.
9
9
6mm
H
G
B
A
X2
I
X2
10
10
X4
6mm
J
C
C
K
X4
13mm
13
12
11
13
12
11
X8
5mm
L
Item Qty Description Item Qty Description Item Qty Description
9 2 Leg 11 2 Foot Platform 13 2 Foot Pad Insert
10 2 Pedal 12 2 Foot Pad
