Bowflex T9 - Page 11

11

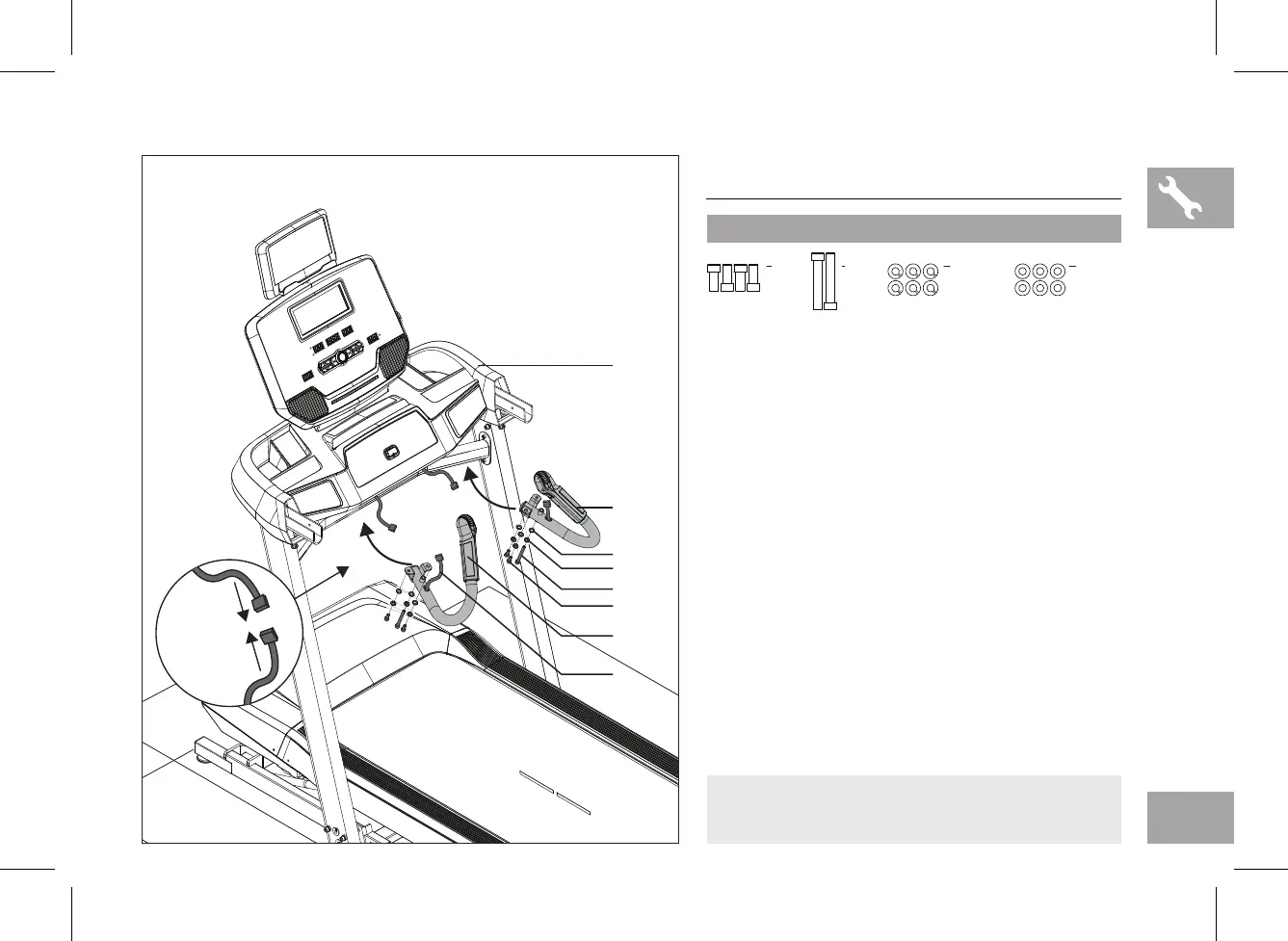

ASSEMBLY STEP 7
7.1 Open hardware for Step 7.
7.2 Connect Pulse Grip Cables (18) to Cables
on bottom side of Console Base (15) and
tuck excess cable into console base to avoid
damage.
7.3 Secure Pulse Grip Handlebars (19L & 19R) to
Console Base (15) using 4 Short Bolts (F), 2
Long Bolts (I), 6 Spring Washers (C) and 6 Flat
Washers (D).
F
Bolt
M8x15L
Qty: 4
C
Spring Washer
Ø8xØ13
Qty: 6
D
Flat Washer
Ø8.2xØ15
Qty: 6
I
Bolt
M8x60L
Qty: 2
STEP 7 HARDWARE :
I
C
19R
15
D
F
19L
18
NOTE: Be careful not to pinch any wires while
assembling the Pulse Grip Handlebars.
STEP 7. 2
