Bowflex T9 - Page 12

12

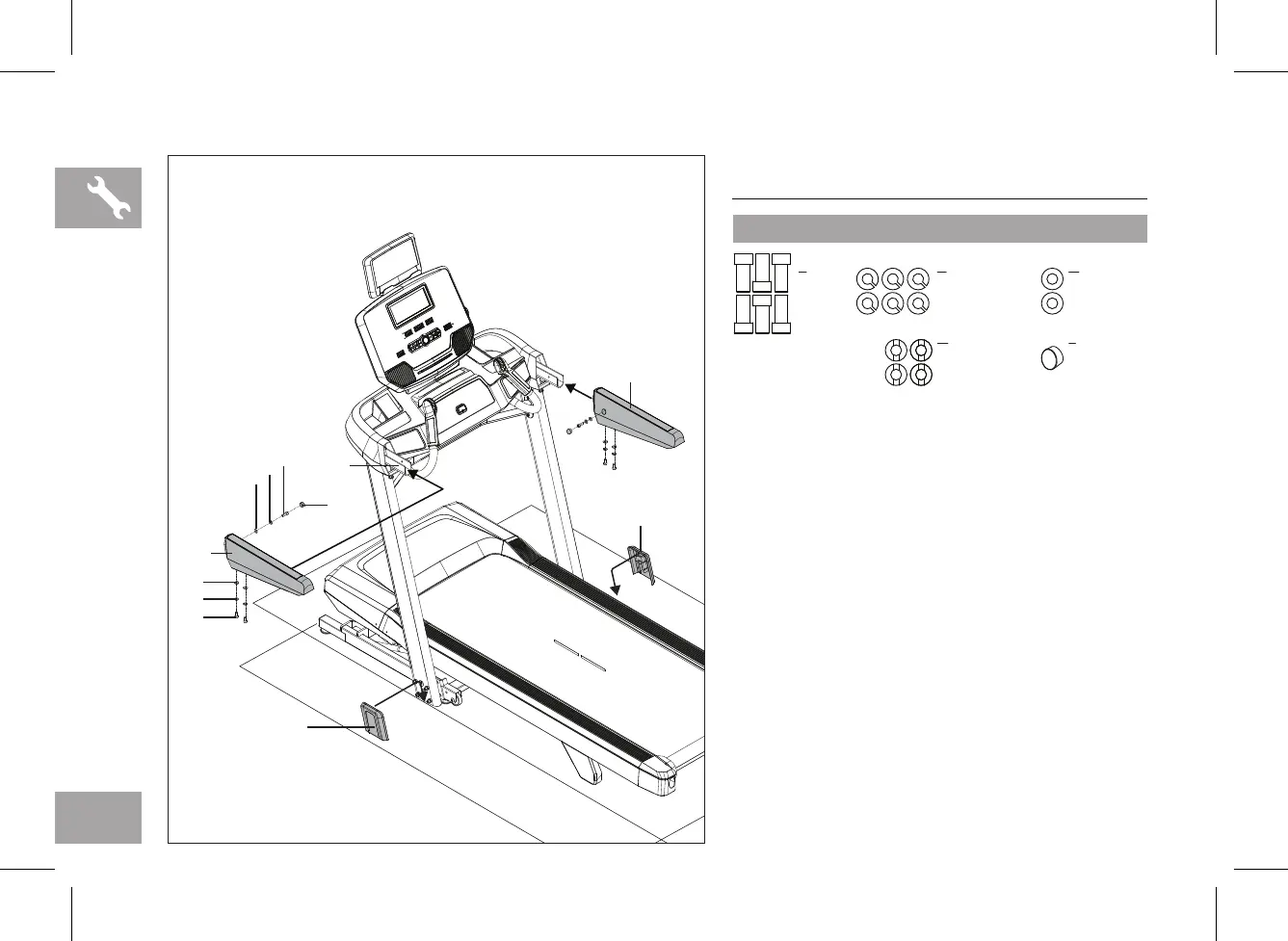

ASSEMBLY STEP 8
8.1 Open hardware for Step 8.
8.2 Slide Left Handlebar (20L) onto Console
Bracket (21) and secure side with 1 Bolt (F), 1
Spring Washer (C) and 1 Flat Washer (D).
8.3 Secure bottom of Left Handlebar (20L) with
2 Bolts (F), 2 Spring Washers (C) and 2 Arc
Washers (G).
8.4 Repeat Steps 7.2 & 7.3 with Right Handlebar
(20R) and fully tighten all bolts.
8.5 Insert Bolt Cap (J) to cover bolt holes on
Handlebars (20L & 20R).
8.6 Slide Mast Covers (23L & 23R) over mast bolts.
F
Bolt
M8x15L
Qty: 6
C
Spring Washer
Ø8xØ13
Qty: 6
D
Flat Washer
Ø8.2xØ15
Qty: 2
G
Arc Washer
Ø8.2xØ18
Qty: 4
J
Bolt Cap
Qty: 2
STEP 8 HARDWARE :
J
20R
23R
21
20L
G
C
F
23L
F
C
D
