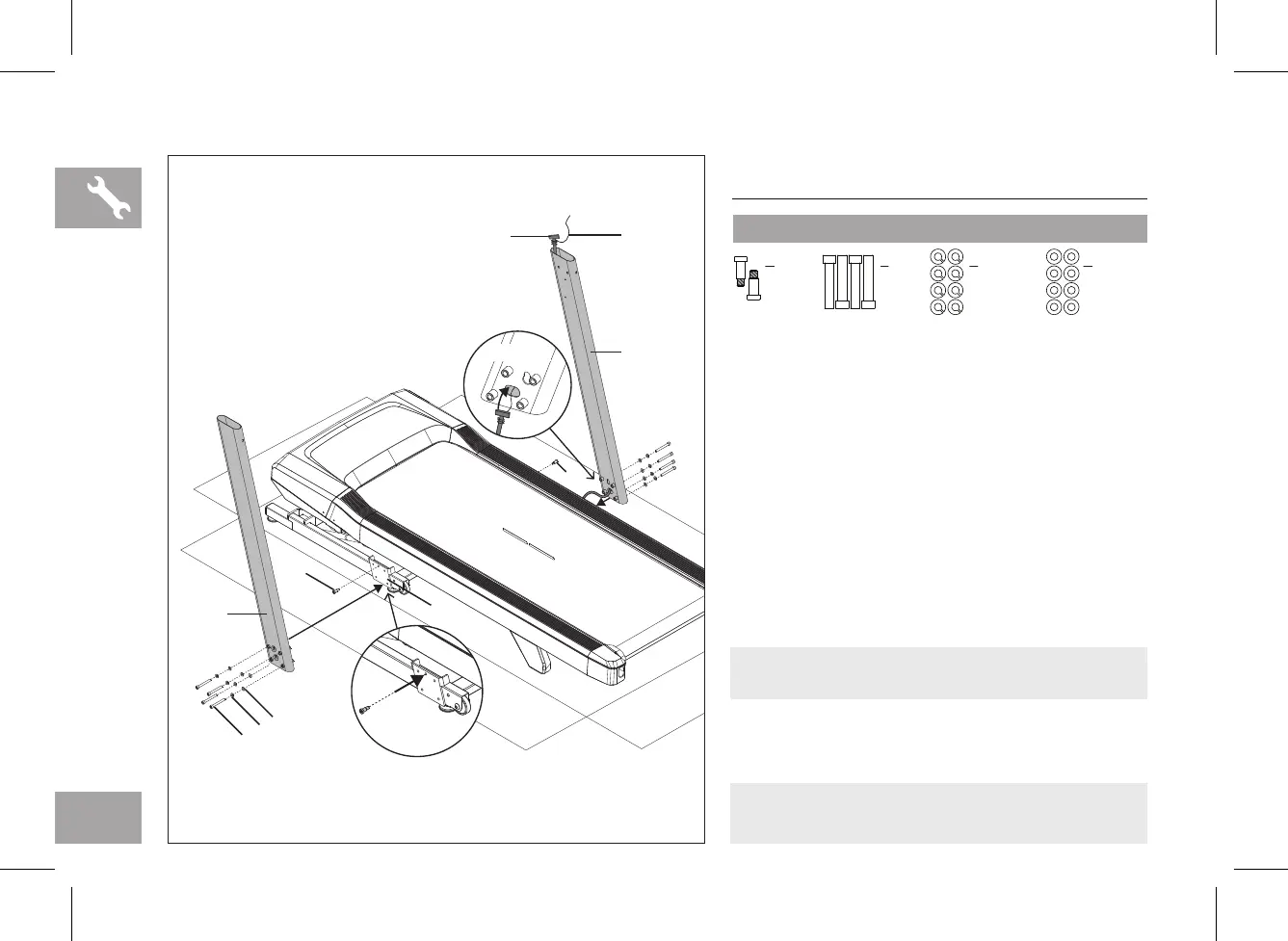

ASSEMBLY STEP 1
1.1 Open hardware for Step 1.
1.2 Insert 2 Guide Bolts (A) into the Base Frame
(11) using the 5mm L-Wrench. Tighten firmly.
1.3 Attach Lead Wire (12) to end of Console Cable
(13). Pull Lead Wire (12) and Console Cable
(13) through bottom hole on Right Console
Mast (14R). After pulling the Lead Wire (12)
through the mast, the top of the Console Cable
(13) should be located at the top of the Right
Console Mast (14R).
1.4 Attach Right Console Mast (14R) to Base
Frame (11) using 4 Bolts (B), 4 Spring Washers
(C) and 4 Flat Washers (D).
1.5 Repeat Step 1.4 for Left Console Mast (14L).
A
Guide Bolt
M8x28.5L
Qty: 2
B
Bolt
M8x70L
Qty: 8
C
Spring Washer
Ø8xØ13
Qty: 8
D
Flat Washer
Ø8.2xØ15
Qty: 8
STEP 1 HARDWARE :
NOTE: Be careful not to pinch any wires while
assembling the masts.
NOTE: Do not fully tighten bolts until the end of
STEP 3.
A
11
B
14R
12
13
STEP 1.3
STEP 1.2
14L
C
D
A
