8

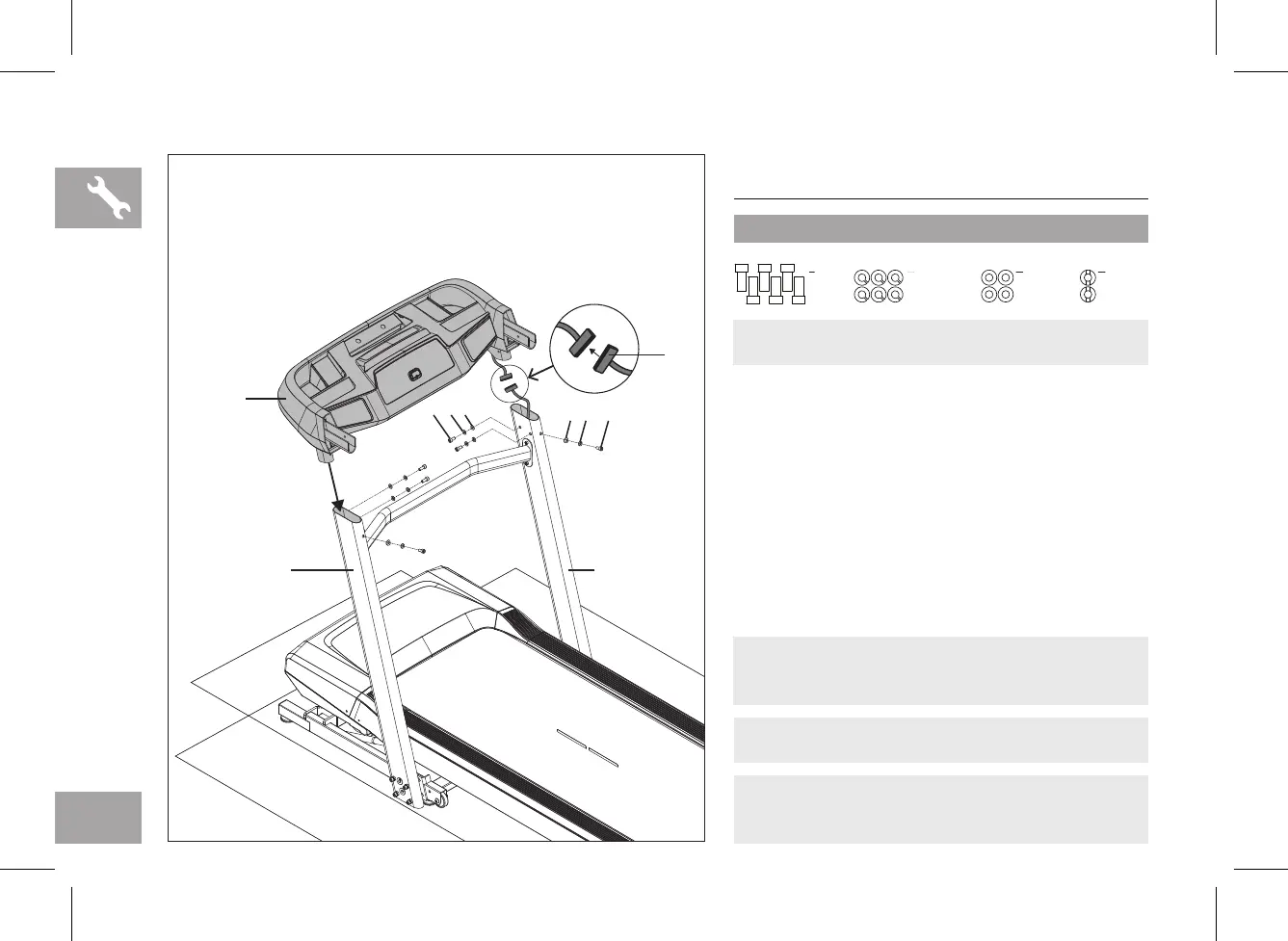

ASSEMBLY STEP 3
3.1 Open hardware for Step 3.
3.2 Carefully connect both ends of Console Cable
(13) and tuck extra cable into Right Console
Mast (14R).
3.3 Carefully place the Console Base (15) on the
Console Masts (14 L&R) and attach using 6
Bolts (F), 6 Spring Washers (C), 4 Flat Washers
(D) and 2 Arc Washers (G).
C
Spring Washer
Ø8xØ13
Qty: 6
D
Flat Washer
Ø8.2xØ15
Qty: 4
G
Arc Washer
Ø8.2xØ18
Qty: 2
F
Bolt
M8x15L
Qty: 6
STEP 3 HARDWARE :
NOTE: Fully tighten bolts from Steps 1-3.
NOTE: ASSEMBLY STEP 4 is not applicable to
markets outside of the U.S, Canada and Mexico.
NOTE: Be careful not to pinch any wires while
assembling the console.
NOTE: 2 people recommended for Step 3 assembly.
13
14R
F C D
FCG
14L
15
STEP 3.2
