ASSEMBLY STEP 5

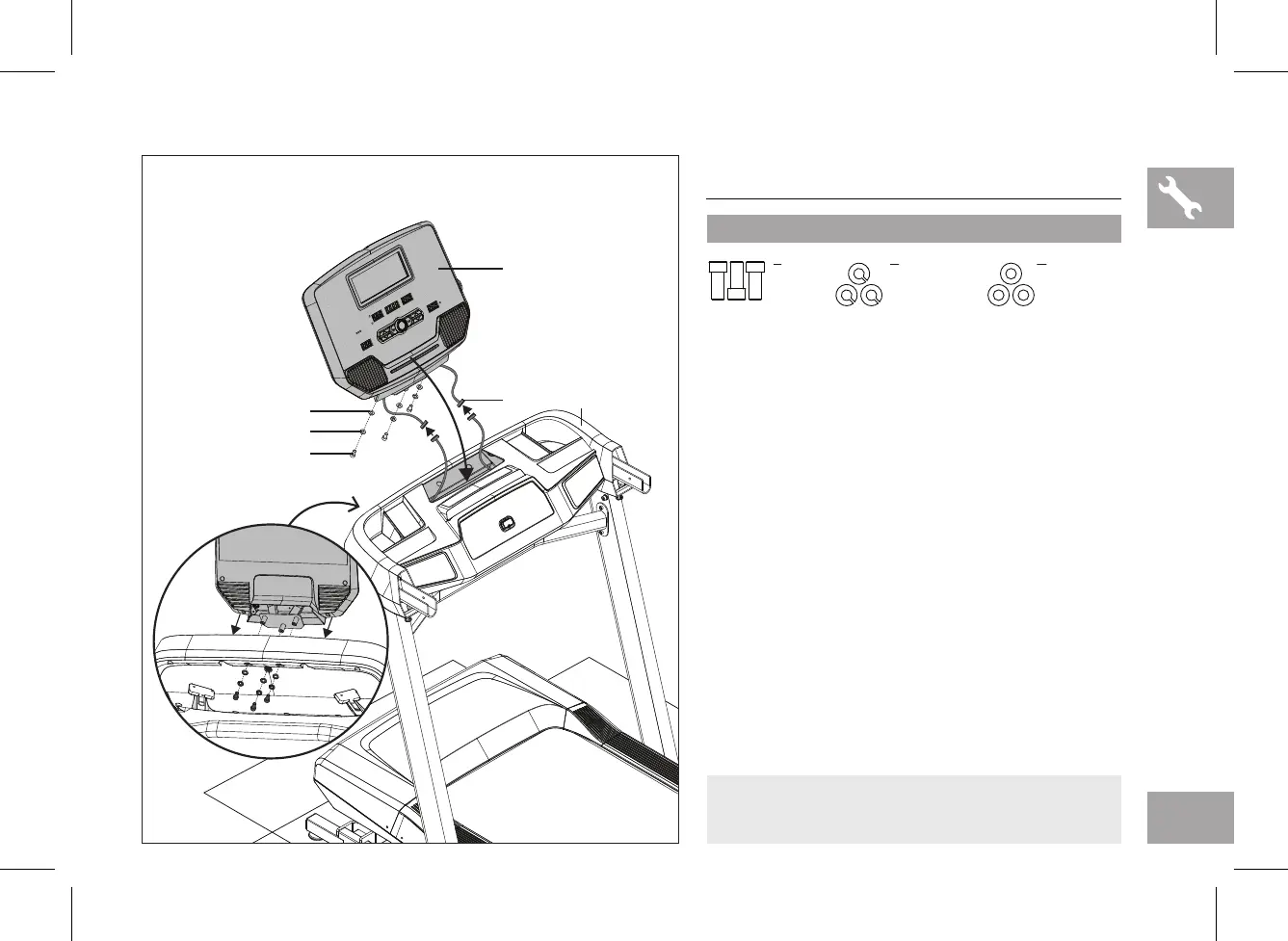

5.1 Open hardware for Step 5.
5.2 Fold up the treadmill deck. Make sure the deck
is securely latched.
5.3 Remove remaining parts boxes from under
treadmill deck and lower the deck down for the
remainder of assembly.
5.4 Carefully connect the Left and Right Console
Cables (13) and tuck extra cable into Console
Base (15).
5.5 Attach Console (16) to the Console Base (15)
using 3 Bolts (F), 3 Spring Washers (C) and 3
Flat Washers (D).
F
Bolt
M8x15L
Qty: 3
C
Spring Washer
Ø8xØ13
Qty: 3
D
Flat Washer
Ø8.2xØ15
Qty: 3
STEP 5 HARDWARE :
16
13 15
D
C
F
NOTE: Be careful not to pinch any wires while
assembling the Console.
