Assembling Your Bowflex Ultimate
®
2
STEP 3 – Use two people for this step!
Parts:
• Front Base Assembly
• Rear Base Platform (Box 2)
Tool:
• Hex Key (7/32”)
• Wrench (9/16”)
- or Adjustable Wrench

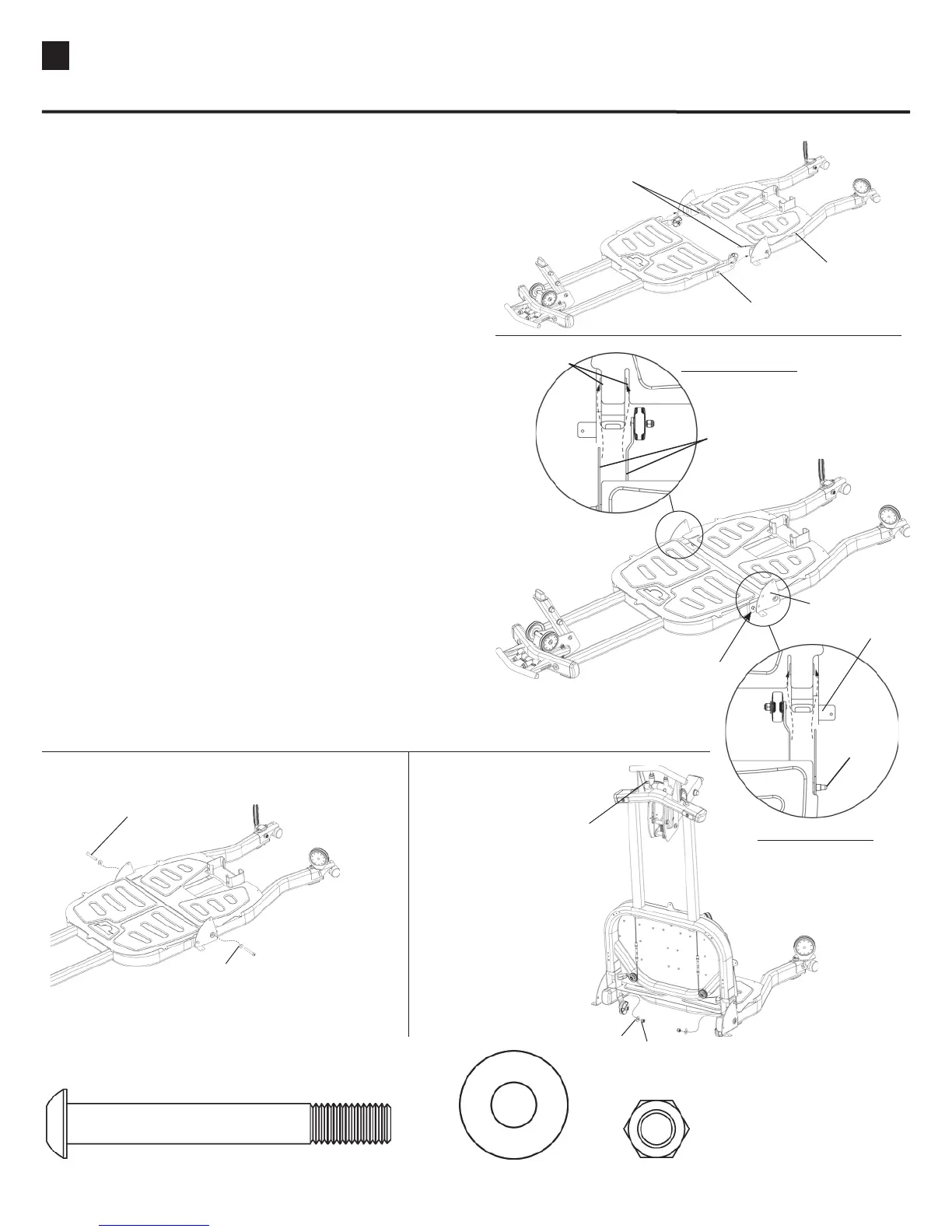

3-1 Remove Wire Ties from Bushings.
3-2 Slide Front Base toward rear base until the
Locking Pins make contact with the side plates.
MAKE SURE the Flanges slide over the Bushings
during this procedure.
(See Top Detail View)
3-3 Squeeze the Front Handle to retract the Locking
Pins, lift the handle about 3-4 inches and push
Front Base completely into the Rear Base.
Release the handle and make sure the Locking
Pins protrude through the Side Plates.
3-4 Insert the Button Head Bolt and Washer then
squeeze Front Handle and fold Front Base up to
install Inside Washer and Hex nut. Completely
tighten hardware.
2 Pan Head Allen Bolt (3/8” X 3”) 4 Washers (3/8”)
Hardware (1:1):
2 Nylock Nut (3/8”)
Remove Wire Ties from
Bushings
TOP DETAIL VIEW
Bushings
Make sure Flanges
slide over Bushings
TOP DETAIL VIEW
Slide Front Base
towards Back Base
Until it Contacts Pins
Locking Pin
Pan Head Allen Bolt
Washer
Squeeze Handle and
Fold Front Base up
to install Nylock Nut
and Washer
A
B
C
D
Washer
Nylock Nut
Side Plate
Side Plate
Locking Pin
Rear Base
Platform
