Assembling Your Bowflex Ultimate
®
2
STEP 4
Parts:
• Base Assembly
(from step 3)
• Front & Rear Plastic Base Covers (Box 2)
Tool:
• Hex Key (7/32”)

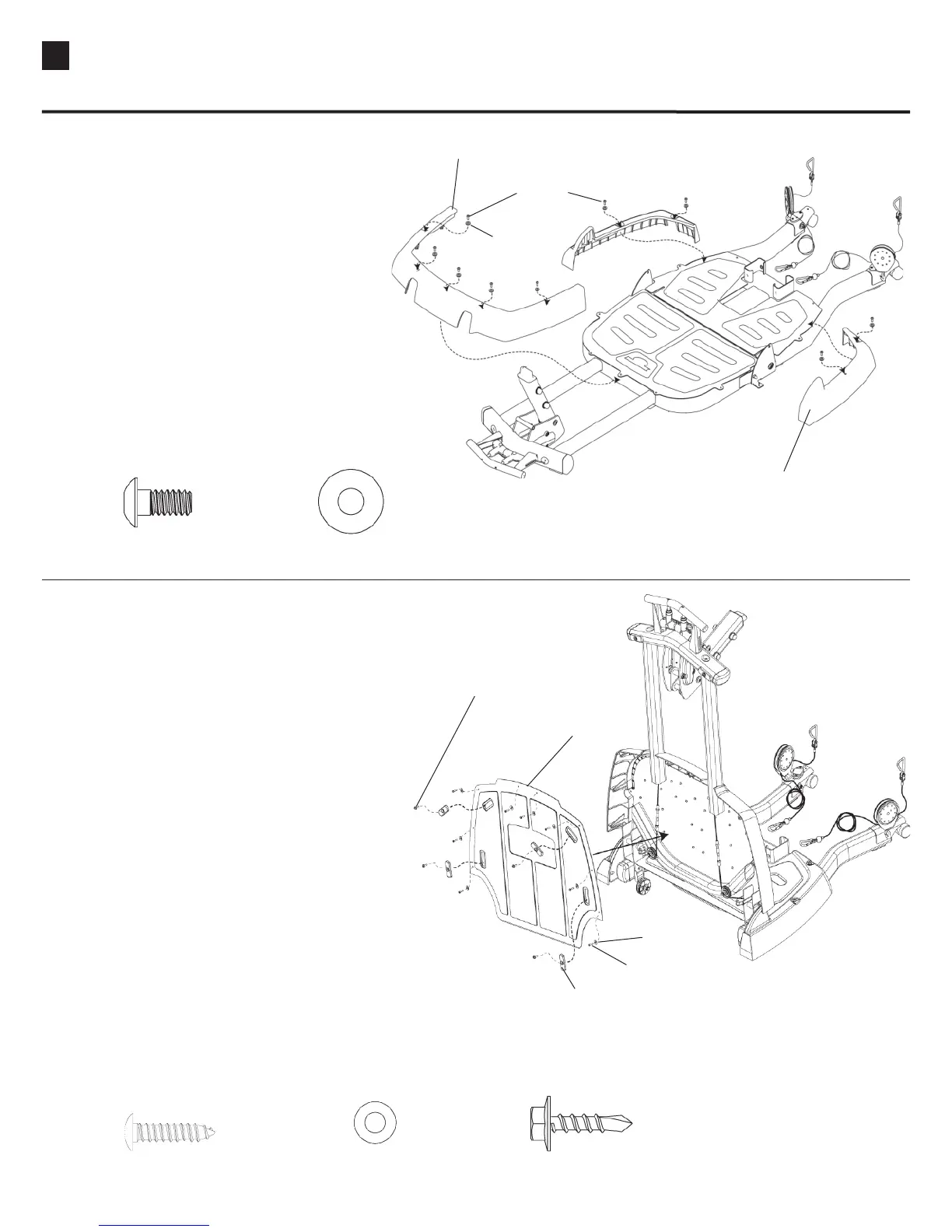

4-1 Position Plastic Covers on Front and
Rear Base Platforms.
4-2 Install and completely tighten the hardware.
9 Pan Head Allen Bolt (1/4” X 1/2”)
9 Washers (1/4”)
Hardware (1:1):
Pan Head Allen Bolt
Washer
Rear Plastic Cover
STEP 5
Parts:
• Base Assembly
• Front Base Plate (Box 3)
• Front Base Feet (4) (Box 5)
Tools:
• Wrench (5/16”)
• Phillips Head Screwdriver
5-1 Fold the front base assembly into the
upright position.
5-2 Position the Base Plate and secure with
eight Phillips Head Screws and Washers.
5-3 Position the four Base Feet and secure with
Hex Washer Head Screws.
Do not over tighten.
Feet could crack with excess pressure!
5-4 Completely tighten the Base Plate hardware.
Hardware (1:1):
Front Base Plate
Phillips Head Screw
Hex Washer Head Screw
Front Base Foot
Washer
8 Self Tapping Screws (#8 X 3/4”) 8 Washers (#8 ) 4 Coach Screws (#10 X 3/4”)
Front Plastic Cover
