Tools Required
7/32" Allen Wrench (included)
You will also need:
9/16" Socket Wrench
9/16" Wrench or Adjustable Wrench
Utility knife or scissors to cut nylon ties
Parts
# Qty. Description
1 1 BASE SUPPORT
2 1 CURL BAR HOOK, RIGHT
3 1 CURL BAR HOOK, LEFT
4 2 BRACKET, BAR HOOK
5 1 TOWEL RACK
6 1 MOUNT, PREACHER CURL ASSEMBLY
7 4 WASHER HOOK
8 1 FLEX BAG
9 2 SIDE TUBE ASSEMBLY
10 1 BOTTOM BRACKET ASSEMBLY
11 1 BASE PLATE ASSEMBLY
12 2 3/8" X 7/8" ALLEN BOLT
13 20 3/8" X 2 3/4" ALLEN BOLT
14 20 3/8" NYLOCK NUT
15 38 M10 or 3/8" WASHER
Hardware

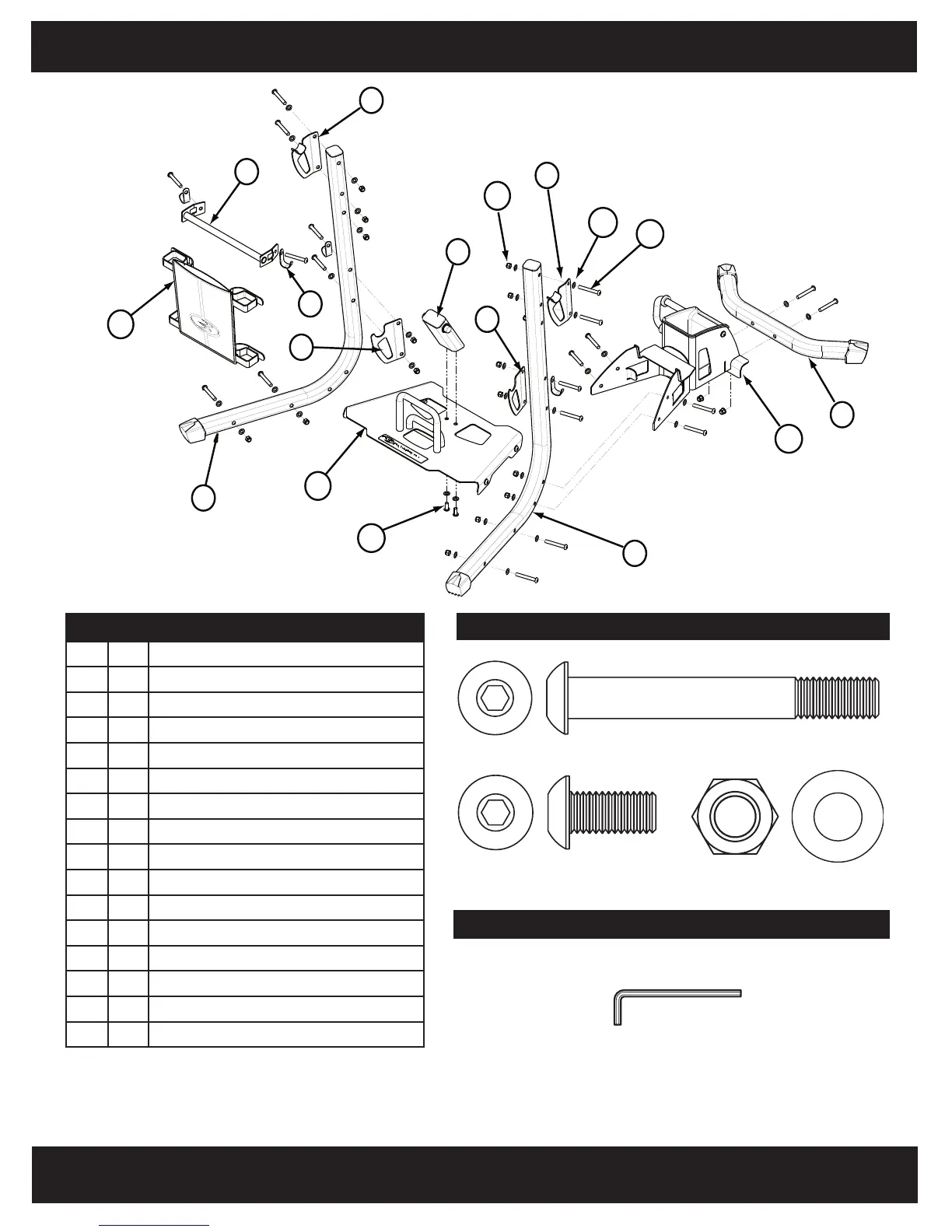

Complete Rack Component Diagram
2 3/4" Allen Bolt
Washer
Lock Nut
7/8" Allen Bolt
To Next Page
