5
step
1

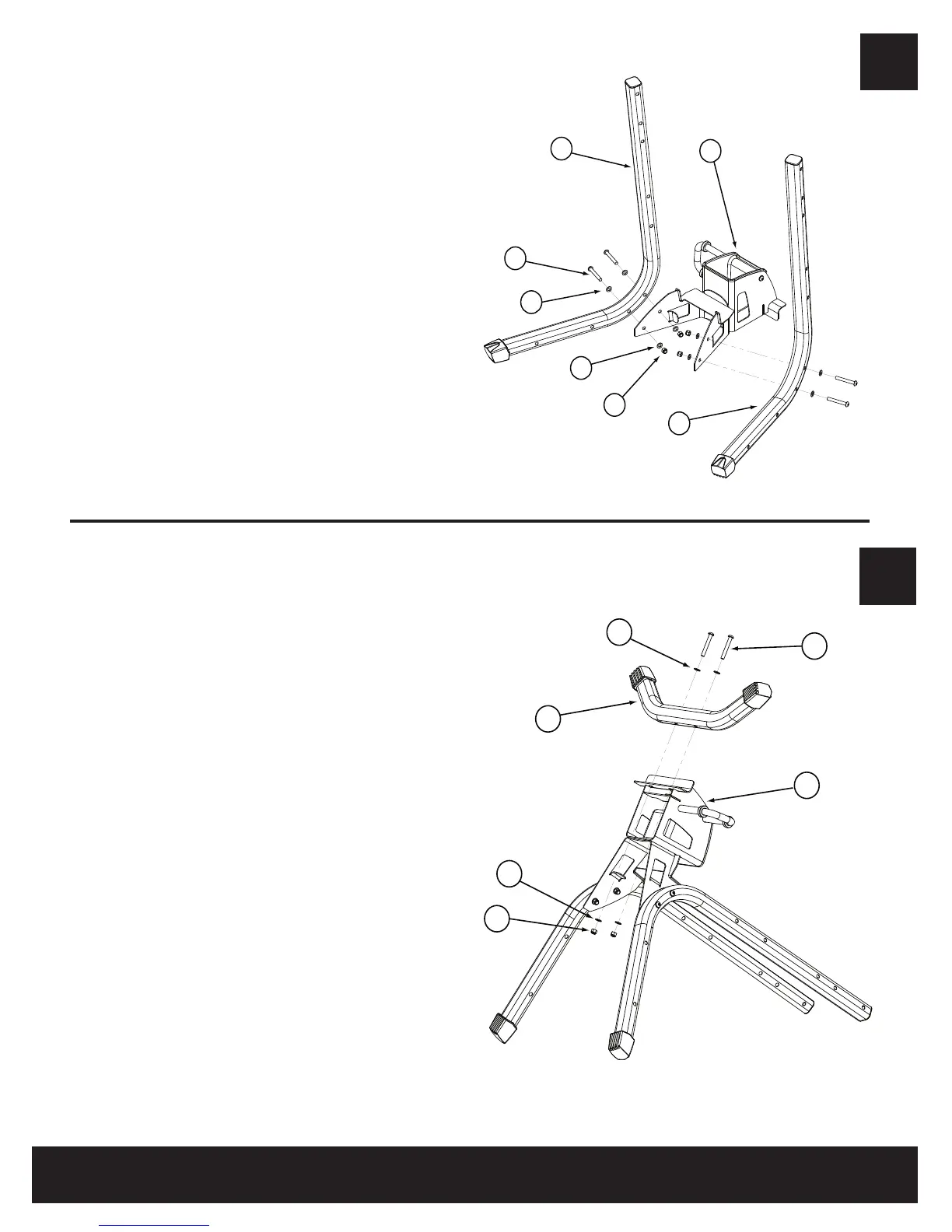

Figure 1
Figure 2
Parts:
• Side Tubes (#9)
• Bottom Bracket (#10)
Hardware Qty
• 2 3/4" Bolts (#13) 4
• Washers (#15) 8
• Nuts (#14) 4
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
1-1 Attach the Bottom Bracket (#10) to the Side
Tubes (#9) using the hardware shown in Figure 1
.
Note: Do not tighten hardware at this time.
step
2
Parts:
• Base assembly from Step 2
• Base Support (#1)
Hardware Qty
• 2 3/4" Bolts (#13) 2
• Washers (#15) 4
• Nuts (#14) 2
Tools:
• Allen wrench (7/32”)
• Wrench/Socket (9/16”) or Open End Wrench
2-1 Carefully tilt the base assembly forward to rest
on the four Side Tube ends. Attach the Base
Support (#1) to the Bottom Bracket (#12) using
the hardware as shown in Figure 2. Make sure
that the Base Support feet are pointing away
from the base assembly.
Note: Do not tighten hardware at this time.
2-2 Turn the base assembly upright to rest on all
four feet.
To Next Page
