Bpt Agata V - Call Transfer Procedures; Select Receiver for Transfer; Active Call Between Receivers; Connect Second Receiver to Panel

Int. 1 Int. 2
Int. 2
Int. 2
Int. 2Int. 1
Int. 1
2
Int. 1
Page 5 - Manual code FB00080-EN - vers. 1
- 12/2015 - © Came S.p.A. - The contents of the manual are to be considered as subject to change at any time and without the need for any advance warning.

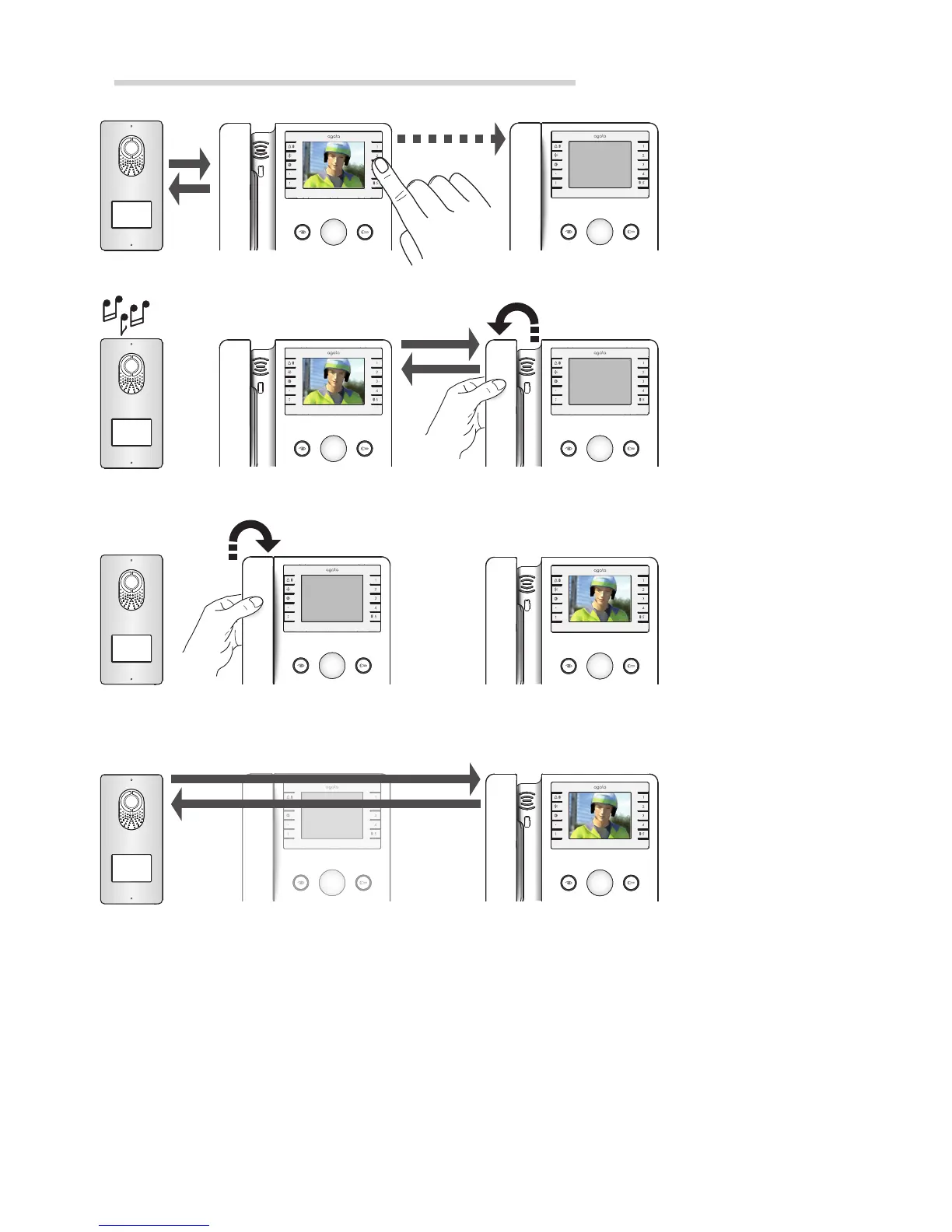

With a call active,
select the internal
receiver to which
the call is to be
transferred.
As soon as the
internal receiver
which has been
called picks up the
handset, the call is
active between the
two receivers; the
entry panel remains
on hold.
To connect internal
receiver 2 with
the entry panel,
internal receiver 1
must replace the
handset.
The internal
receiver receiving
the call can
retransfer it.
Call transfer (Agata VC/B - Agata VC/B-L only)
