CONNECTIONS
22
ENGLISH

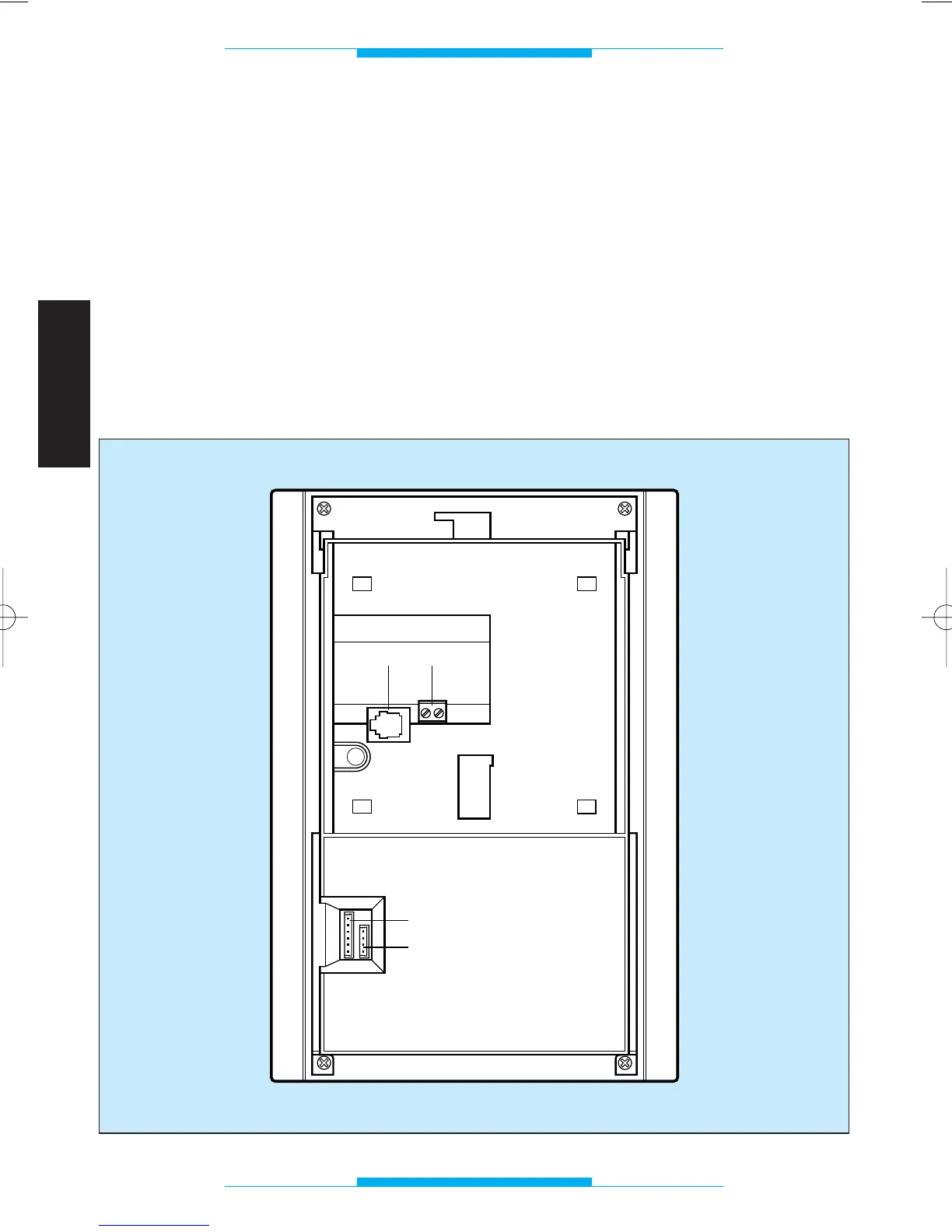

Connector CN3
This is used for connecting the monitor
module with the telephone in the system
300.
ConnectorCN5
This is used for connecting the unit to the
telephone line, in the table-top version.
Terminal block M1
ae local line
be local line
In order to make wiring easier, pull the ter-
minal block out from the bottom of the unit.
NOTE. The unit must be connected on ana-
logue telephone lines only and not digital
ISDN lines.
Connector CN2
This is used for connection to modules with
supplementary functions.
