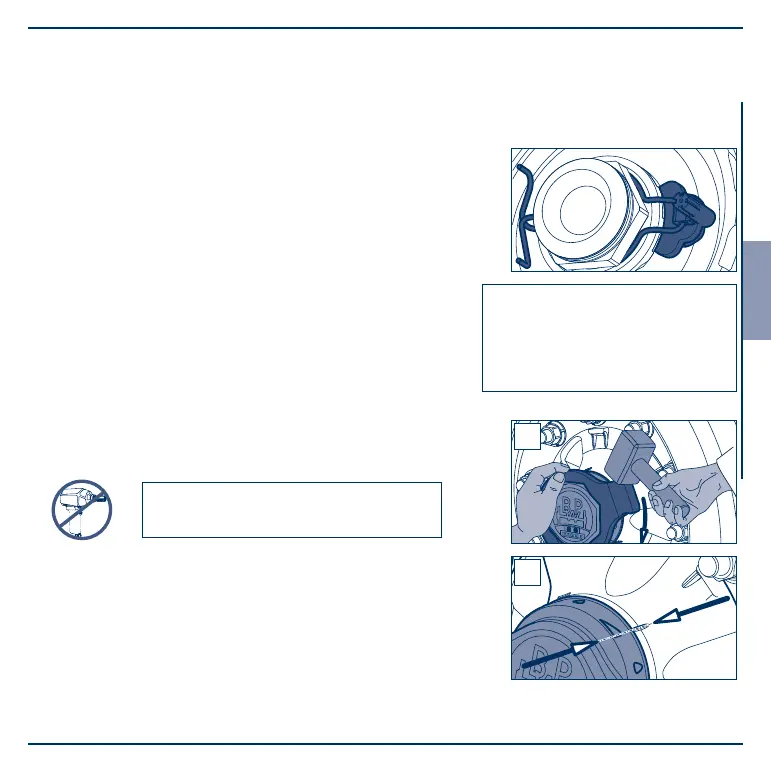

Insert the clasp locking ring into the groove on the end of
the hexagon profi le of the axle screw and make sure it is
exactly seated. Press the wire into the groove if necessa-
ry.
Insert the new O-ring into the groove in the wheel hub.
4. After setting the tyre rolling circumference (--> page 14),
apply a thin coat of BPW special long-life grease ECO-
Li
Plus
to the ECOMETER in the area of the O-ring contact
surface and the bayonet lock.
Push on the ECOMETER, see position 3, and turn it
clockwise at the same time as pressing on axially to lock
it in place.
Important: bayonet lock!
Do not use an impact driver.
A tight seat is provided when position 4 is reached.
Important!
The axle screw may come loose
under extreme circumstances
if the wedge is lost (danger of a
wheel coming o !).
