Moto3 User Manual
Motor Indicator Lamp
Ref No. Parts name Note

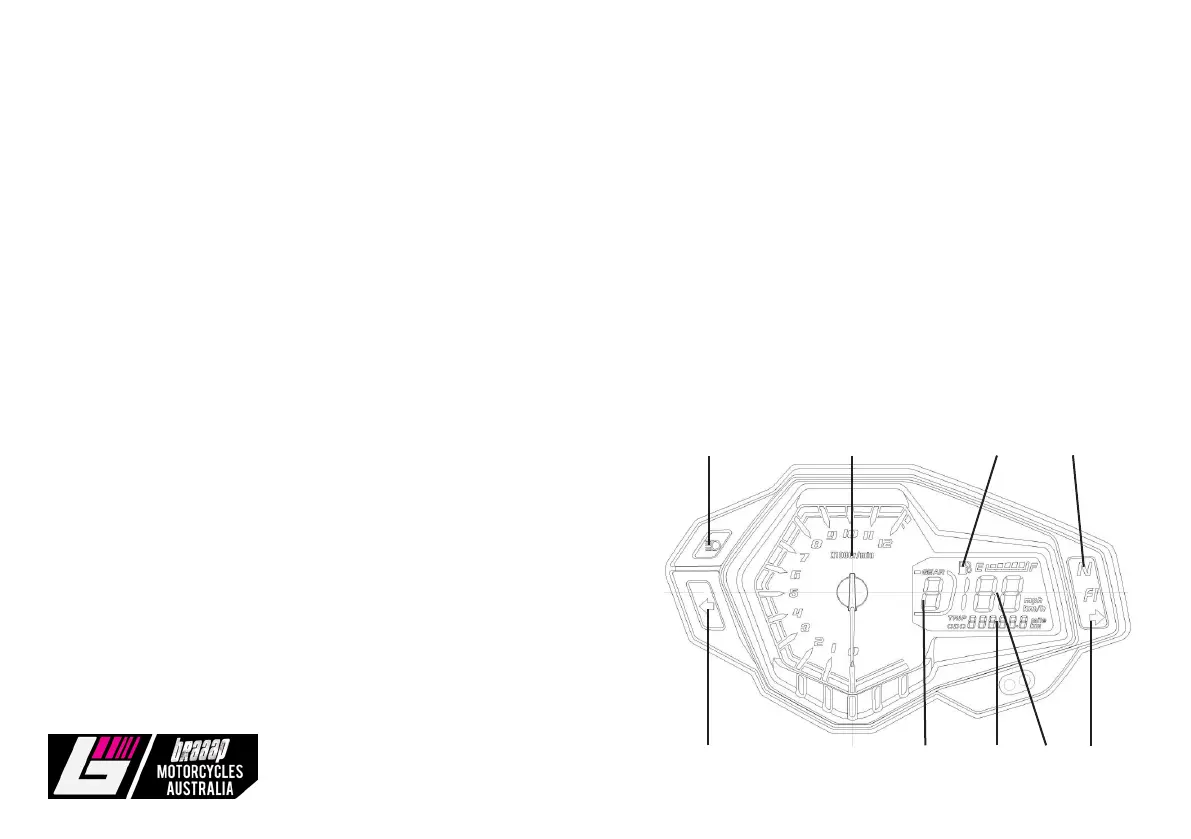

1. Speed meter Indicates running speed, unit: km/h.
2. Odometer Indicates total mileage.
3. Fuel indicator When the needle is point at F it means the fuel tank is full, when it is pointing at the red
zone it means the fuel tank is low.
4. Gear indicator This Indicates which gear the motorcycle is currently in.
5. Tachometer Indicates the rotational speed of engine (r/min).
6. Right turning signal Indicator light flashes when turning right.
7. High beam This light flashes when you turn on the high beam.
8. Neutral indicator This light flashes when you are in neutral gear.
9. Left turning signal Indicator light flashes when turning left.
Warning 7 5 3 8
When indicating be sure to switch the indicator off
9 4 2 1 6
