MOUNTING KIT INSTALLATION
617 TRENCHER
4. Attach the two hydraulic hoses supplied in the kit to the trencher as shown in
Figure #3.
5. Attach the appropriate couplers to their corresponding hydraulic hoses. See
your skid steer owner's manual for proper identification of auxiliary hydraulic
coupler flow. Flow through the hydraulic hoses is noted in Figure #3.

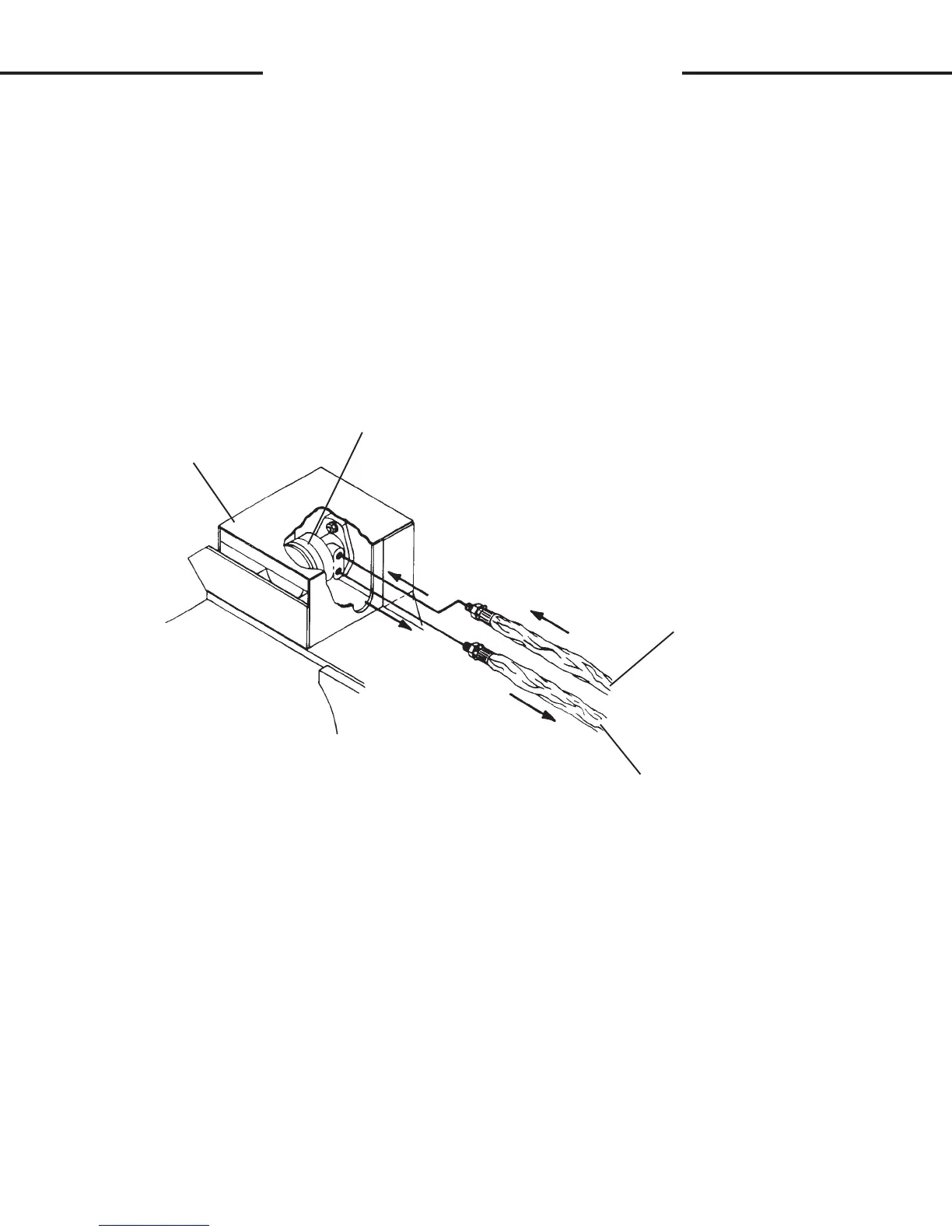

FIGURE #3
HYDRAULIC MOTOR
TRENCHER
POWER TO TRENCHER
RETURN FROM TRENCHER
5779
2-21-92
