OPERATING INSTRUCTIONS
OPERATING TECHNIQUES
SKID STEER TRENCHERS
G
G
5793
2-26-92
TURNING WHILE TRENCHING
Gradual turns can be made while trenching. However, the tightness
of the turn is directly proportional to the angle and length of the boom. In
other words the greater the angle of the trencher boom to the ground level,
the sharper the turn that can be trenched. (See Figures #11 & #12) Also
the shorter the boom length the sharper the possible turn. Remember, the
greater the increase in boom angle the higher the unit will have to be raised
out of the trench to keep a unified trench depth. Shallow boom angles will
severely limit turning ability.
IMPORTANT: Turning too tightly while trenching will cause the trencher to
jam in the trench and stall, leading to excessive oil temperatures. Turning
too tightly can also cause the trencher boom to bend. Take it easy when
turning. Proceed slowly with caution.

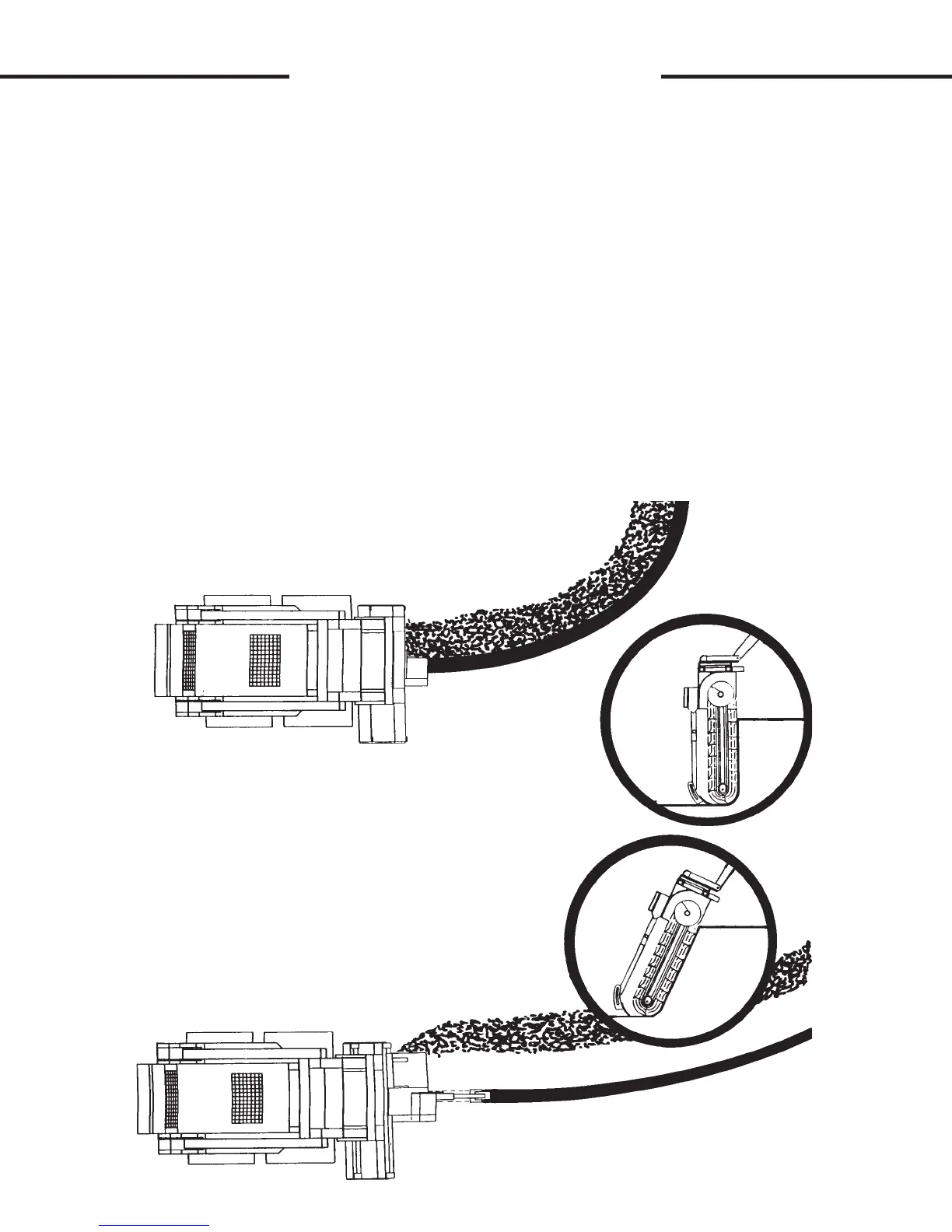

FIGURE #11
TOP VIEW
TURNING WITH THE BOOM
AT A 90° DIGGING ANGLE
TURNING WITH THE BOOM AT
A 60° DIGGING ANGLE
TOP VIEW
FIGURE #12
