DIGGING CHAIN OPTIONS
2.00" PITCH CHAIN REPLACEMENT PARTS
J
J
5806
10-4-95
GENERAL INFORMATION
You can purchase individual chain links and pins for your trencher.
These can be used to repair a damaged chain, or lengthen and modify an

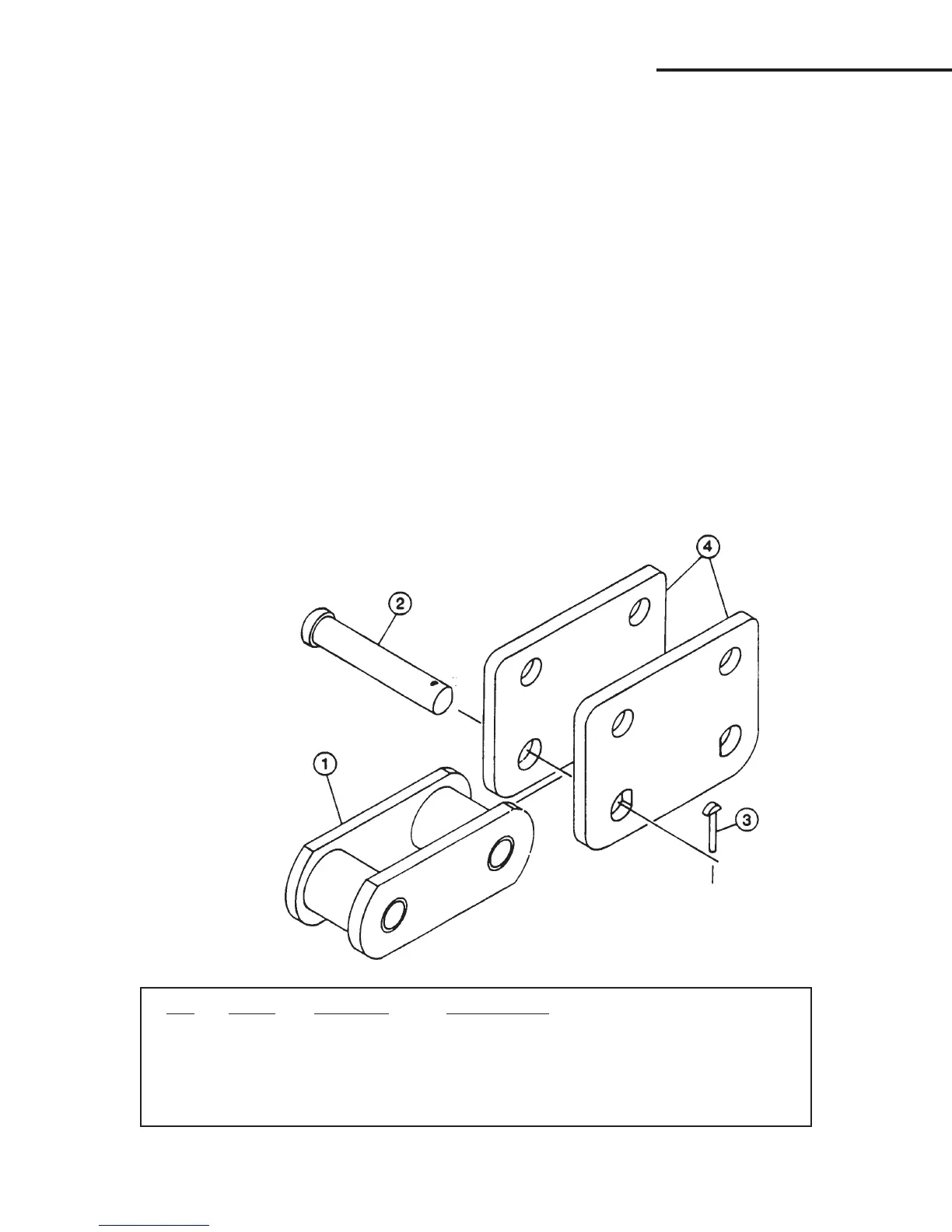

existing chain. Below is a diagram of the chain’s basic components with
their descriptions and corresponding part numbers. Use these numbers
when ordering. You can also order a complete bare chain (without teeth
and spacers) in any length desired. The chain is ordered under part number
79018 for 2.00" Pitch. Just specify the length you want in pitches. (See
“2.00” PITCH DIGGING CHAIN ASSEMBLIES” chart located in this section.)
When pinning links of chain together, first tap the pin through the
connector link with the perfectly round holes and then on through the inner
link. Place the second connector link in position, you will note that the end
of the pin has one side flattened. Rotate the pin until its flat side lines up
with the corresponding flat side of the connector link hole and tap the pin
on through. Place the chain keeper pin into the hole at the end of the main
pin and tap down tight. Finally, bend the end of the keeper pin over to
secure it in place.
NO. REQ’D PART NO. DESCRIPTION
1 Varies 54757 Inner Link
2 Varies 54731 Pin
3 Varies 54732 Chain Keeper Pin
4 Varies 54730 Connector Link includes (2) Pins #54731 and (2)
Chain Keeper Pins #54732
