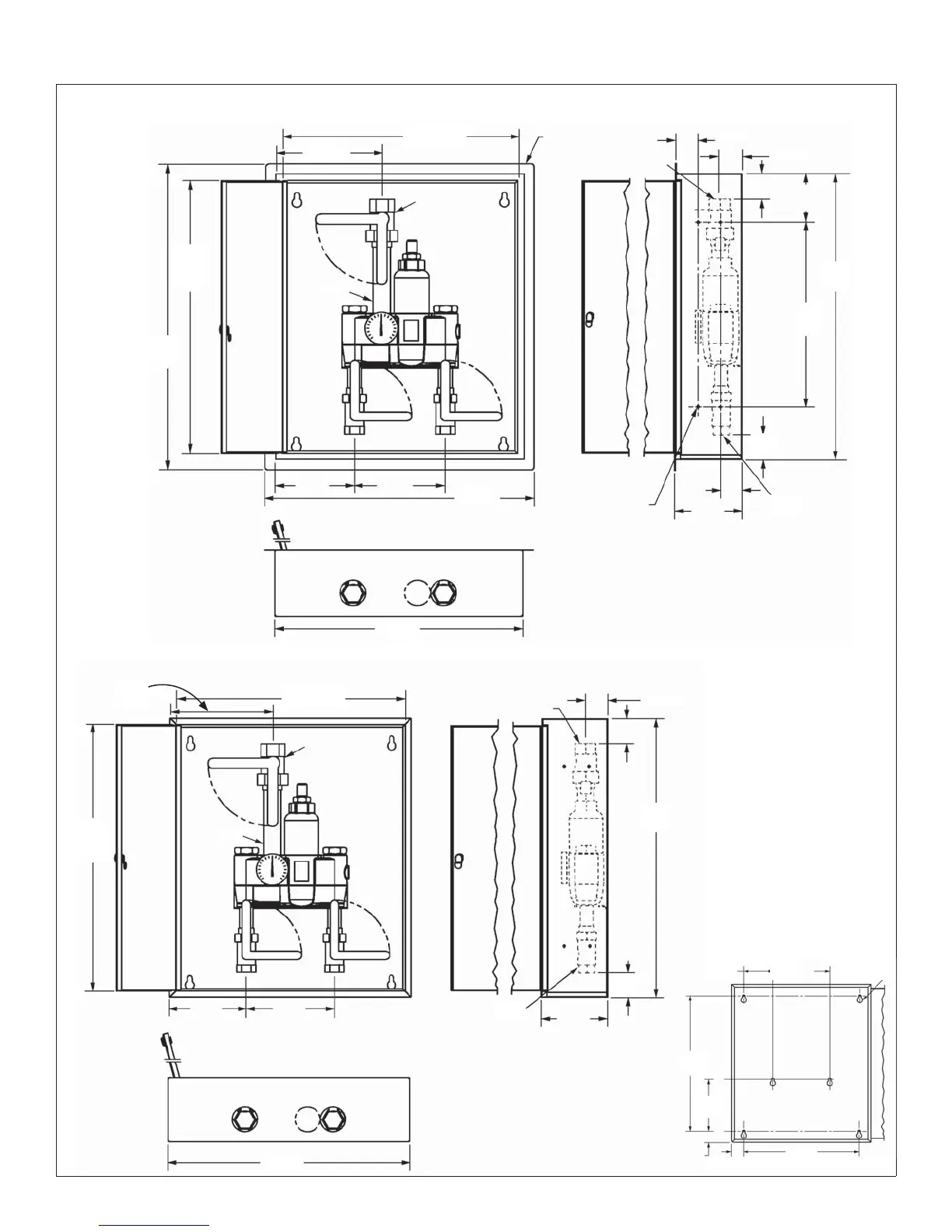

Installation EFX 60/S19-2200
Bradley Corporation • 215-1289 Rev. L; EN 10-09-018 4-19-2011 3
(mm)
22-3/4" (578)
Door
10-3/16"
(259)
7-5/8"
(194)
8-3/4"
(222)
26"
(660)
24"
(610)
Nipple
Union Ball
Valve
2" (51)
1-1/4" NPT
Outlet
0.28" Dia. Holes
(4) each side,
(8) Total
6-1/2"
(165)
2"
(51)
1" NPT
Inlets
2-1/2"
(64)
5"
(127)
2-1/2"
(64)
18"
(457)
28"
(711)
Wall
Flange
26-3/4"
(679)
Door
2-1/4" (57)
30"
(762)
Bottom View
Side ViewFront View
22-3/4" (578)
Door
10-3/16"
(259)
7-5/8"
(194)
8-3/4"
(222)
24"
(610)
Nipple
Union Ball
Valve
1-1/4" NPT Outlet
6-1/2"
(165)
1" NPT
Inlets
2-1/2"
(64)
2-1/2"
(64)
28"
(711)
26-3/4"
(679)
Door
2-1/4" (57)
Mounting Hole Locations
9-3/4"
(248)
9-3/16"
(233)
24"
(610)
20"
(508)
5-1/8"
(130)
2"
(51)
2"
(51)
0.47 Dia. Holes
(6) Places
Optional Recessed Cabinet
Optional Surface-Mounted Cabinet
Wall Opening:
24-1/2" W x 28-1/2" H
