Bradley S19-2200 Installation Instructions

EFX 60/S19-2200 Installation
8 4-19-2011 Bradley Corporation • 215-1289 Rev. L; EN 10-09-018
Item Qty. Description
4 1 Washer
9 1 Washer
32 2 Seal
33 2 Washer
45 1 Washer
Washer/Seal Kit S65-311
Item Qty. Description
2 1 O-Ring
10 1 O-Ring
12 1 O-Ring
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
21 1 O-Ring
26 2 O-Ring
28 2 O-Ring
36 2 O-Ring
O-Ring Kit S65-177
Item Qty. Description
25 2 Cap
26 2 O-Ring
27 2 Stem
28 2 O-Ring
29 2 Strainer
30 1 Hot Supply
Spring
31 2 Holder
(for Seal)
32 2 Seal
33 2 Washer
34 2 Nut
35 2 Seat
36 2 O-Ring
47 1 Cold Supply
Spring (Blue)
Check/Stop Kit S65-359
Item Qty. Description
15 1 Thermostat
17 1 O-Ring
21 1 O-Ring
Thermostat Kit S65-178
Item Qty. Description
2 1 O-Ring
3 1 Liner
4 1 Washer
5 1 Screw
6 1 Spring
7 1 Lower Overheat
Chamber
8 1 Spring
9 1 Washer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 Upper Overheat
Chamber
14 1 Upper Seat
45 1 Washer
Piston & Liner Kit S65-180
Item Qty. Description
2 1 O-Ring
3 1 Liner
4 1 Washer
5 1 Screw
6 1 Spring
7 1 Lower Overheat
Chamber
8 1 Spring
9 1 Washer
10 1 O-Ring
11 1 Piston
12 1 O-Ring
13 1 Upper Overheat
Chamber
14 1 Upper Seat
15 1 Thermostat
16 1 Pushrod
17 1 O-Ring
18 1 O-Ring
19 1 O-Ring
20 1 Mixing Valve Cap
21 1 O-Ring
22 1 Control Cap
23 1 Set Screw
24 1 Screw
45 1 Washer
Center Section Kit S65-305
Kit numbers for rough brass fi nish and standard range
thermostat. Contact Bradley for other confi gurations.
Brass Pipe (3/4" IPS)Valve Body
Thermometer

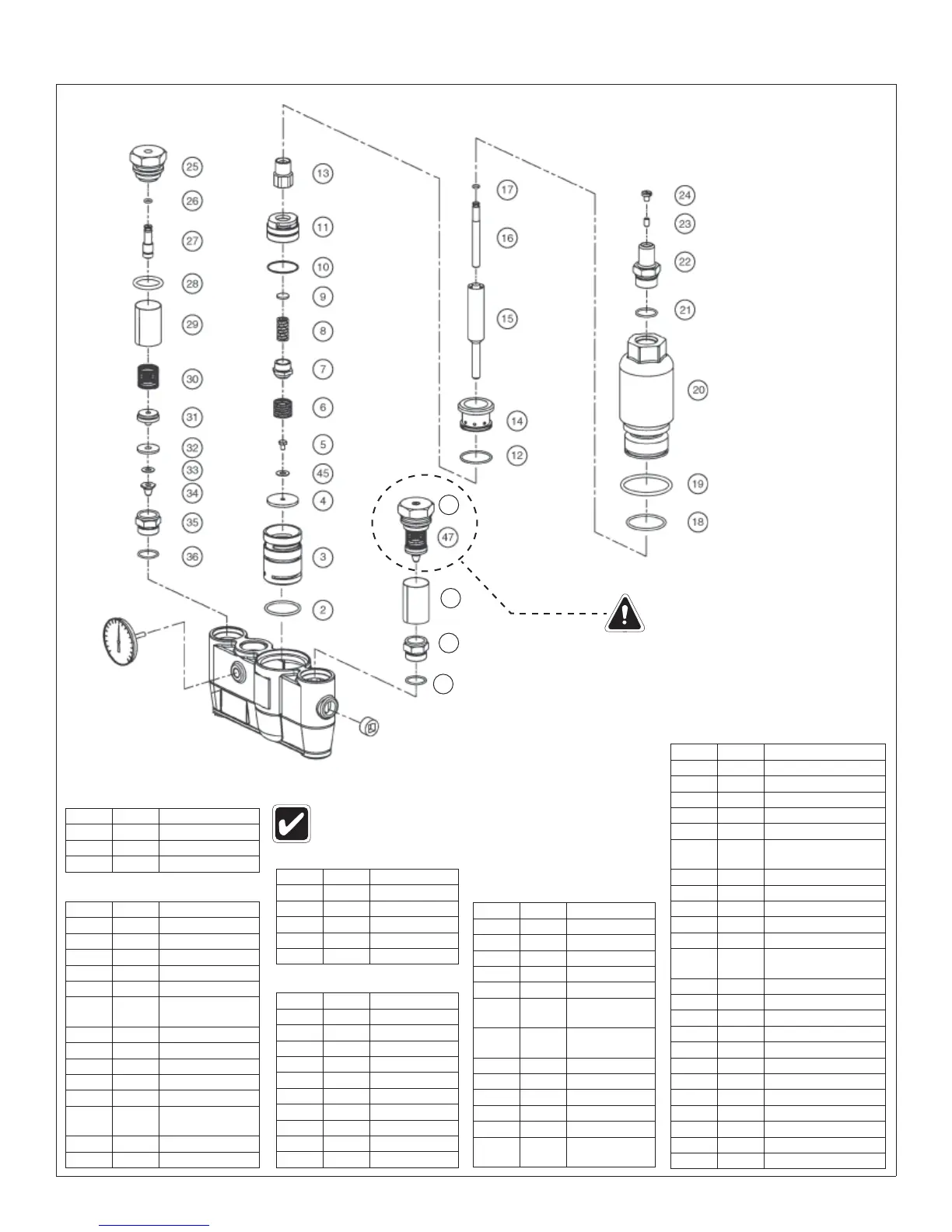

Parts Breakdown
Cold Supply Spring is marked with
blue paint. DO NOT SWITCH WITH
HOT SUPPLY SPRING (30).
36
29
35
46
