Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
18 4/6/2007

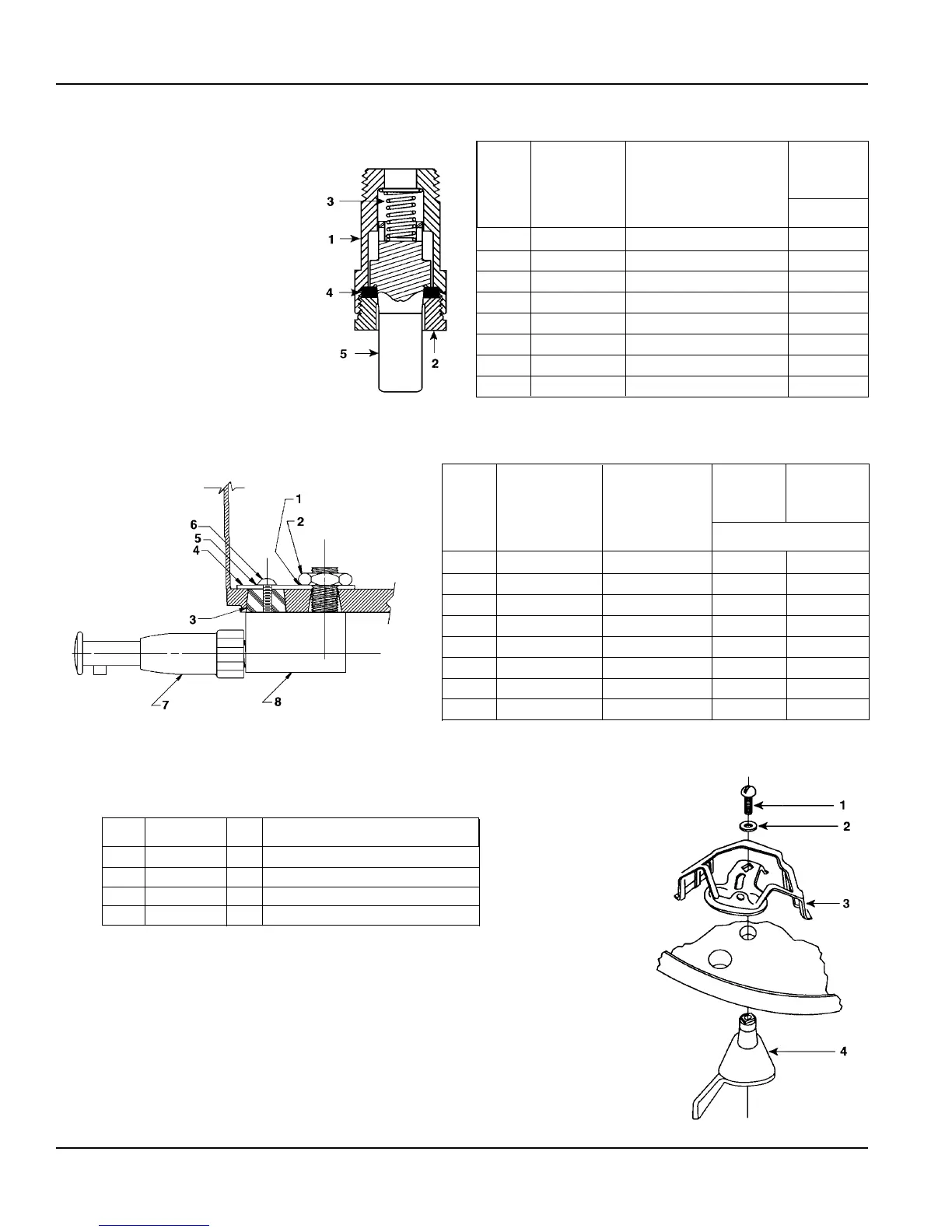

Soap Valve - Liquid - S09-007S
This valve delivers a measured
amount of soap with each
upward stroke. The soap
dispenser has been standard on
washfountains since 1983 and
is not well-suited for very thick
lotion soaps.
NOTE: Lotion soap will clog
liquid soap valves. Use only
lotion soap valves with lotion
soap.
Soap Valve - Lotion - S09-057S
Soap Valve - Powdered - S09-010A
NOTE: Reducer plugs are available for use with fine granulated soap to
reduce the flow.
NOTE: Valves can be changed from powdered to liquid by plugging the
innermost, or “bearing” hole with rubber plug, part number 125-001AK.
To change from liquid to powdered, the plug must be removed. If none is
present, it will be necessary to drill out the bearing hole with a 1/2" or
5/8" drill. The plastic container configuration forms a natural template
for locating the bearing hole.
1 118-025 Valve Body 1
2 110-007 Packing Nut 1
3 135-001L Spring 1
4 125-001BU Washer 1
5 119-028 Plunger 1
* 161-014 Nut 1
* 124-001D Washer 2
* 142-002AH Washer - Stainless Steel 1
Attaching
Parts
S09-007S
Item Part No. Description Qty
Parts List
* Not Illustrated
1 124-001D Washer — 1
2 110-057 Nut — 1
3 125-001AN Stopper — 1
4 159-114 Reinforcing Plate — 1
5 124-001AT Washer — 1
6 160-176 Screw — 1
7 S09-040 Valve 1 1
8 S53-045 Adaptor 1 1
Valve Attaching
Assembly Parts
S09-057 S09-057S
Item Part No. Description Qty
Parts List
1 160-069 1 Screw, 1/4-20 RD
2 142-002X 1 Washer, 1/4 Split-Lock
3 S62-002 1 Agitator / Slide Assy.
4 192-004 1 Lever - Powdered Soap
Item Part No. Qty Description
Parts List
To Next Page
