Bradley WF2605 - Step 2: Assembling the Pedestal; Pedestal Mounting and Assembly

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
8 4/6/2007
Installation Instructions continued . . .
Step 2: Assembling the Pedestal
1. Assemble the leg and scuff base panels with the 5/16” carriage bolts and nuts provided (Figure 2).
2. Attach the pedestal frame members with the 5/16” stove bolts and nuts provided (Figures 2 and 3).
3. Add the foot levers and operating cross to the pedestal assembly (Figures 2 and 4).
4. Press the foot rail into place with a rolling motion. The joint of the foot rail should be placed in
the clevis of one of the foot valves (Figure 2).

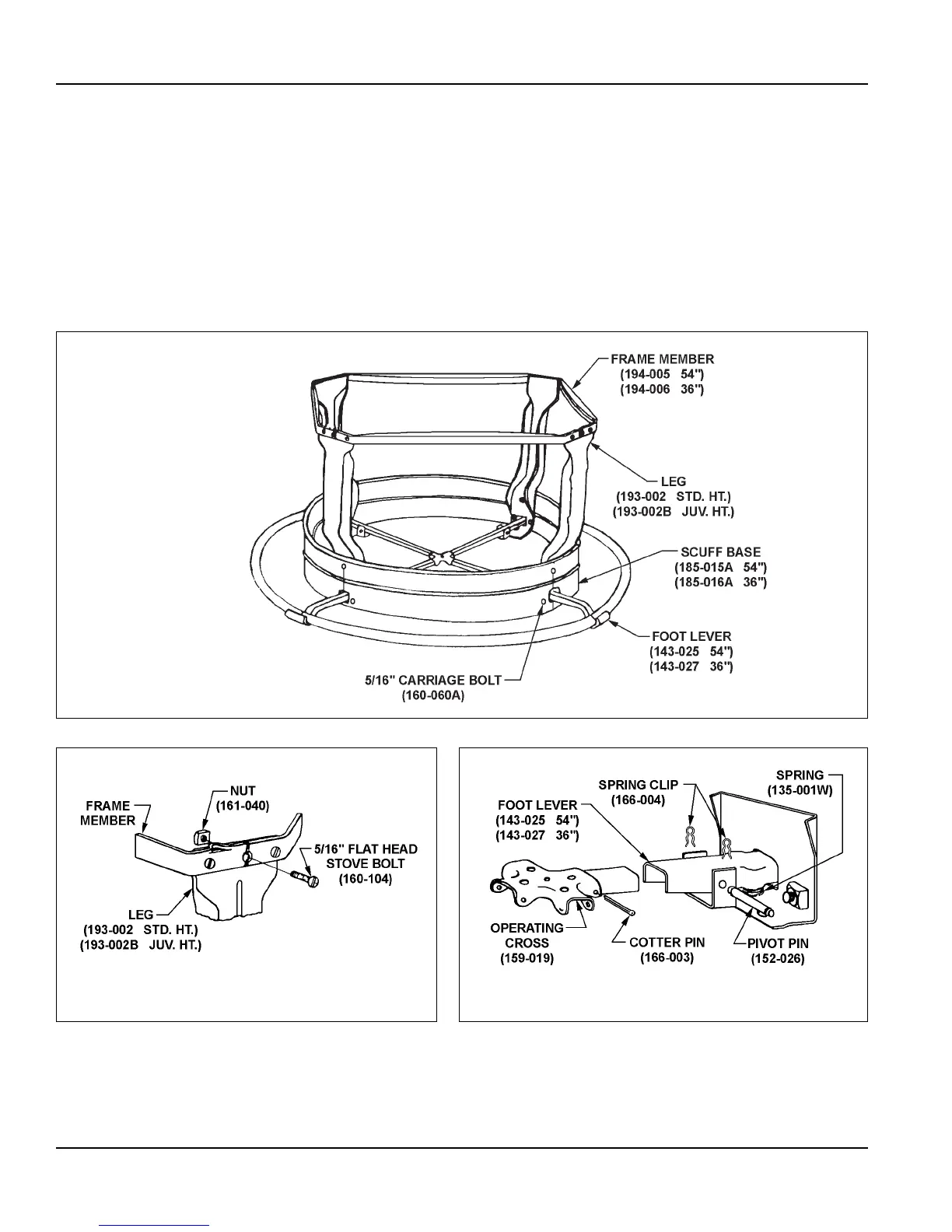

Figure 2
Figure 3 Figure 4
