Classic Circular 36"/54" Washfountain with Foot Control

WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions

Bradley Corporation • 215-603 Rev. M; EN 06-915B

22 4/6/2007

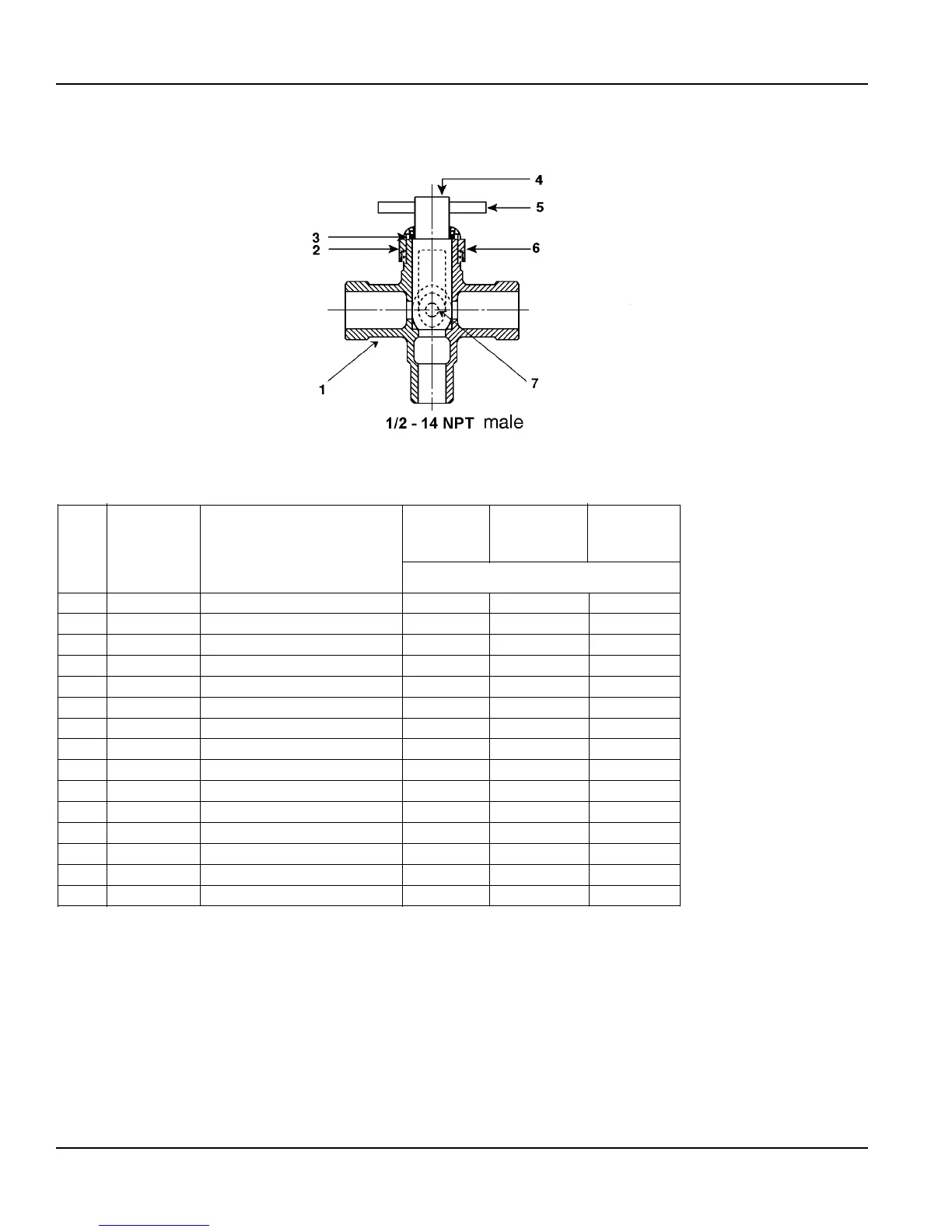

Manual Mixing Valve Repair Parts

1 118-034 Mixing Valve Body - Brass 1 1 —

1 118-034A Mixing Valve Body - Chrome — — —

2 124-001BD Fiber Washer 1 1 1

3 125-001BC O-Ring 1 1 1

4 119-059 Mixing Valve Core 1 1 1

5 152-038 Roll Pin 1 1 1

6 121-016 Bonnet - Brass 1 1 1

6 121-016A Bonnet - Chrome — — —

7 160-197 Screw - Brass 1 1 —

7 160-189 Screw - Stainless Steel — — —

* 129-007 Tailpiece - Brass — 2 —

* 110-005 Tailpiece Nut - Brass — 2 —

* 129-007A Tailpiece - Chrome — — —

* 110-005A Tailpiece Nut - Chrome — — —

* 124-001AF Tailpiece Washer — 2 2

Valve Valve and

Assembly Tailpieces Repair Kit

S01-038 S01-038S S45-197

Item Part No. Description Qty

Manual Mixing Valve Parts List

* Parts not shown
