Sprayhead Troubleshooting and Repair Parts
Problem: Water splashes over the rim of the bowl.
Cause: Foreign matter has reduced the size of the sprayhead slots, causing greater pressure at the
open slots.
Solution: Clean the sprayhead:
1. Disassemble the sprayhead and dislodge any dirt, lime build-up and foreign debris with a wire
brush.
2. Sprayheads with rubber grommet spray rings may be cleaned by rubbing a coin over the grommet.
3. Throttle down the volume control (water spray should strike the bowl without splashing outside
of the bowl).
Problem: Water flow diminishes from the sprayhead.
Cause: Strainer portion of the stop-strainer-check valve is plugged.
Solution: Remove and clean the strainer screen from the stop-strainer-check valve.

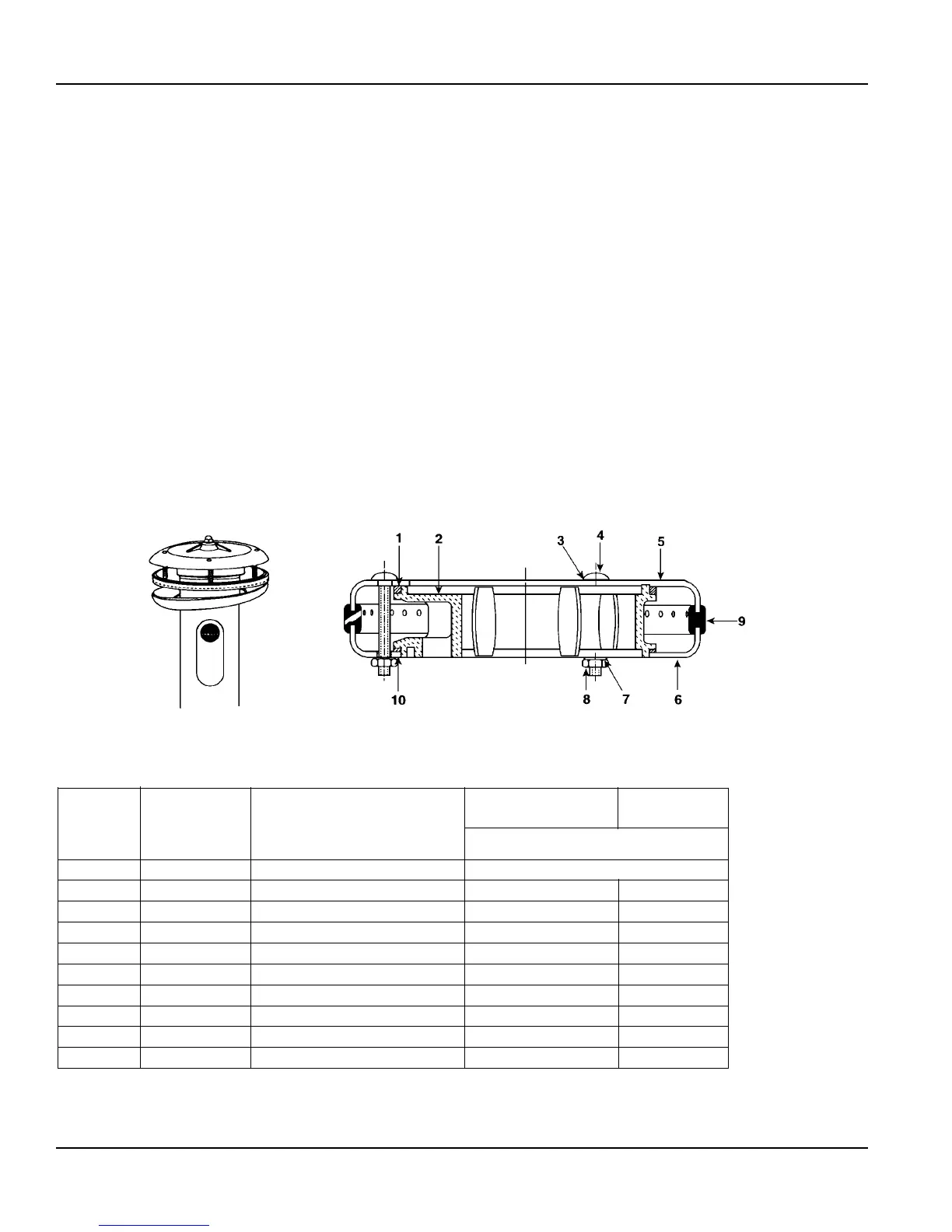

NOTE: The sprayhead shown below includes a perforated rubber spray ring grommet that is self-
cleaning. The water pressure flexes the spray holes which slows accumulation of foreign matter and
tends to “break loose” any such deposits that may have accumulated.
1 125-001DE Neoprene Washer-Top 1 1
2 139-031 Sprayhead Manifold 1 —
3 124-001AL Washer 3 4
4 160-211 Carriage Bolt 3 4
5 115-061 Sprayhead Top 1 —
6 116-008 Sprayhead Bottom 1 —
7 124-001AT Washer 3 4
8 161-025 Nut 3 4
9 124-020C Sprayhead Grommet - Circle 1 —
10 125-001DF Neoprene Washer-Bottom 1 1
Sprayhead Assembly Repair Kit
S05-054 S45-051
Item Part No. Description Qty
Parts List
