Bradley WF2605 - Page 26

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
26 4/6/2007
9
6
5
4
3
2
7
8
Spring
Thermostat
Piston
Stem
O-Ring
O-Ring
Cap
Nut 3/8-24 Hex Jam
10
Seal Cup
1
Valve Body

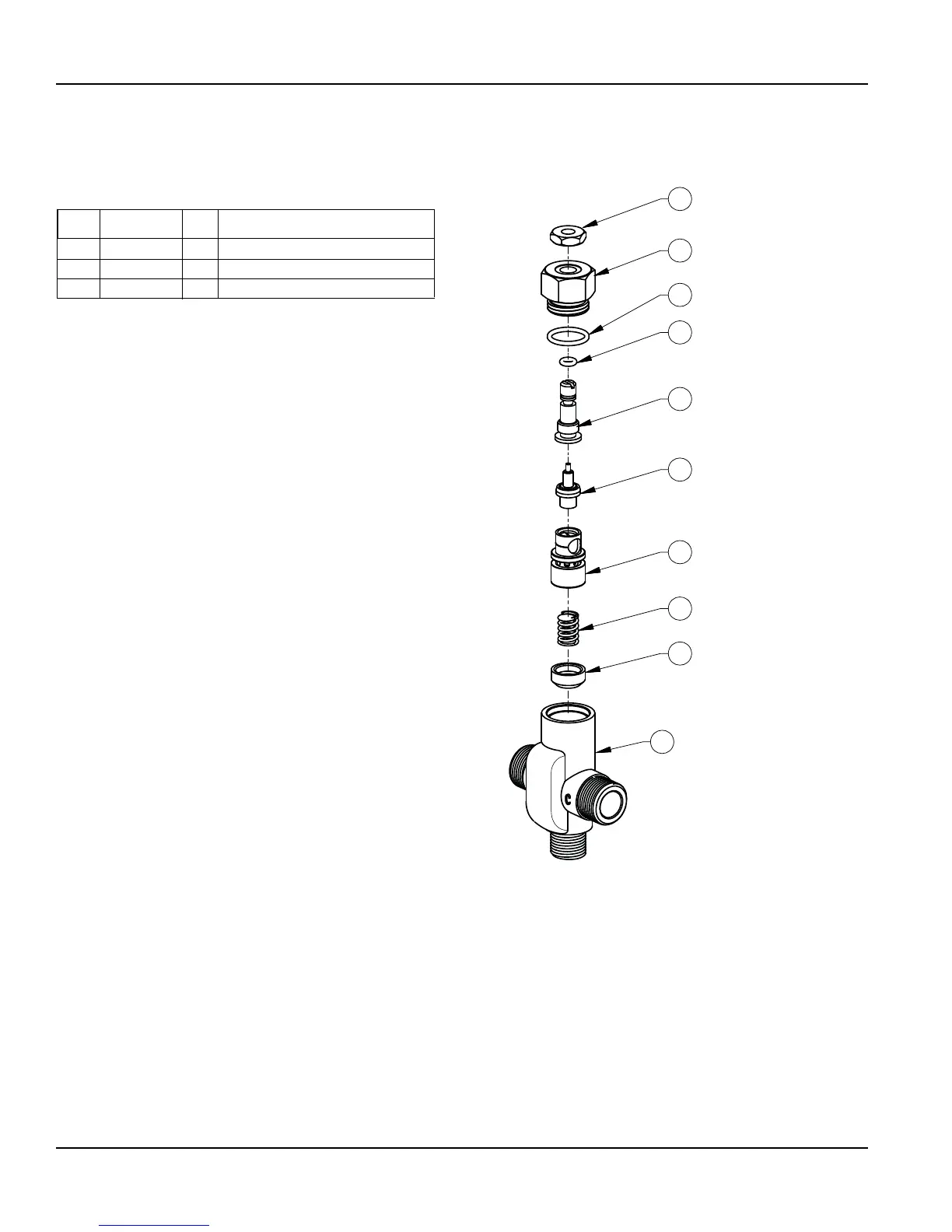

Vernatherm Thermostatic Mixing Valve (S01-525) Parts List — Repair Kit S65-259
Figure 14
5 S39-413 1 Thermostat
7 125-001BX 1 O-Ring
8 125-157 1 O-Ring
Item Part No. Qty Description
Parts List S65-259 Valve Repair Kit
