Installing a Ribbon Cartridge

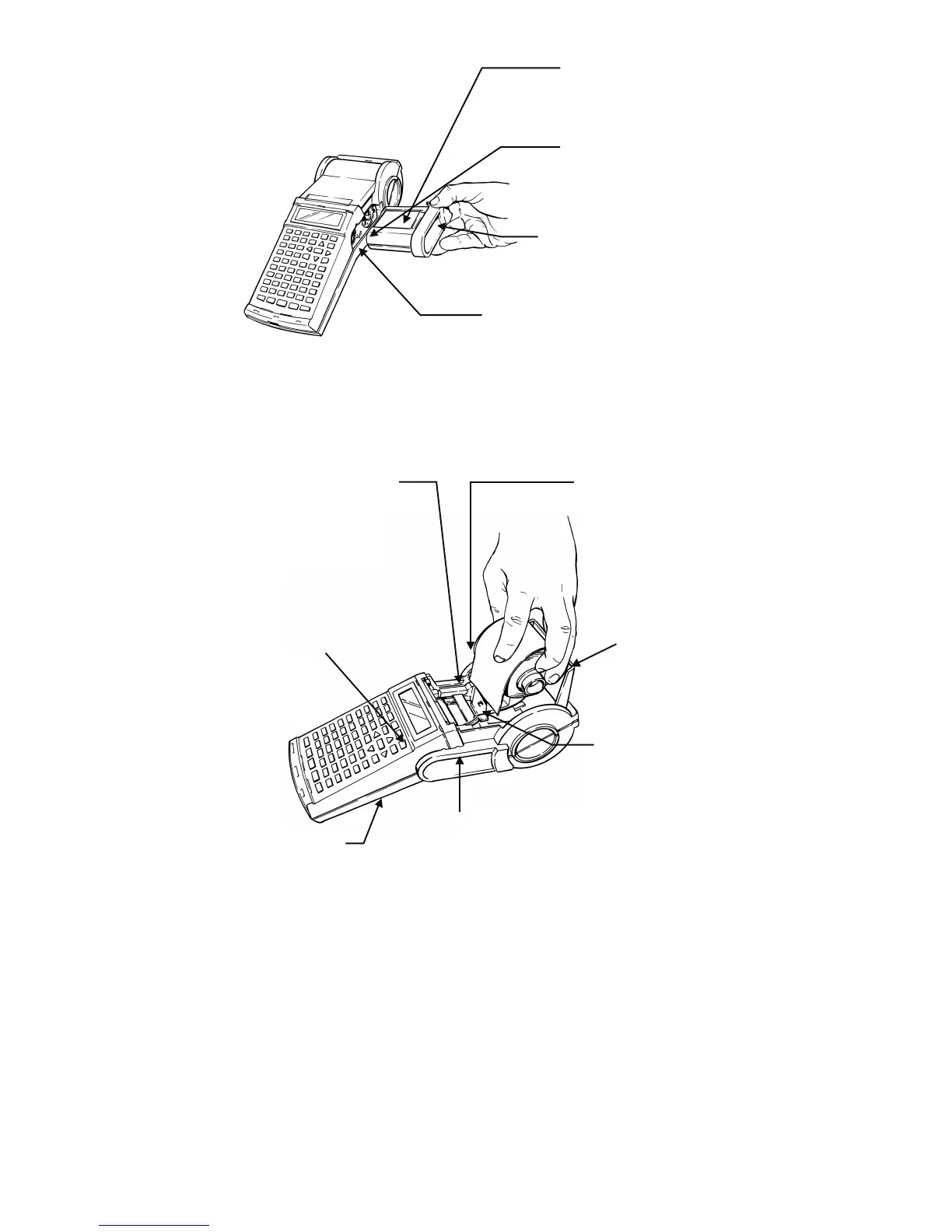

Install a ribbon cartridge as shown below:
Installing a Label Roll
Use the following instructions to install a label roll into your printer (follow steps 1-8 in
order).
Ribbon
Avoid touching or
wrinkling.
1. Ribbon Cartridge
Slide firmly into printer.
(Locking Lever must be in
unlock position - see below)
2. Locking Lever (Underneath the printer)
Push the lever towards the back of the
printer to close print head and lock ribbon
cartridge in place. Pull the lever towards the
front of the printer to open the print head
and release the installed cartridge.
5. Make sure labels unroll
from the top and label
roll is firmly snapped
into cradle.
6. Press <Enter> to clear
message on display:
“ERROR No Label
Present”
3. Roll Door
Open by lifting
at the edges.
4. Guide Plate Lever
Press down and slide
the lever to match the
width of the label roll.
7. Guide Slot
Feed the leading edge
of the label roll through
the black plastic guide
slots until you meet
resistance.
8. <Feed> Key
Press to feed
labels through
the print head.
1. Ribbon Cartridge
Make sure cartridge is
installed and lever is
locked.
2. Power Switch
Turn the printer
ON.
Take-up Spool Remove
any ribbon slack by
rotating spool end
towards you (↓).
