Architectural Specifications
The digital non-programmable thermostat shall be a Braeburn
®
model number 1020NC, 3.62” high x 4.72” wide x 1.38” deep, powered independently
with either 24 Volt AC or with two “AA” Alkaline batteries (3.0 Volt DC). The thermostat shall be compatible with single stage gas, oil or electric heating
or cooling systems including single stage heat pumps and 250mv – 750mv millivolt heating systems. The thermostat shall have a bright blue backlight
display, adjustable temperature limits and separate sub-base for trouble free installation. Temperature control range shall be between 45° and 90° F (7°
and 32°C), accuracy of +/- 1° F (+/- .5° C), humidity range between 5% and 95% relative humidity. The thermostat shall include non-volatile memory
to retain user settings. Thermostat shall have low battery indication and a front reset button will return user settings to default values when pressed. The
thermostat can be mounted to a horizontal junction box.
©2012 Braeburn Systems LLC • Patents Pending • All Rights Reserved • 1020NC-300-001
Product Specifications
Dimensions: 3.62” x 4.72” x 1.38”
Electric Rating: 24 Volt AC (18-30 Volt AC)
1 amp maximum load per terminal
3 amp total maximum load (all terminals)
AC Power: 18-30 Volt AC
DC Power: 3.0 Volts DC
(2 “AA” Alkaline batteries included)
Compatibility: Single stage gas, oil or electric systems
Single stage heat pump systems
250mv – 750mv millivolt heating systems
Control Range: 45° to 90° F (7° to 32° C)
Display Range: 40° to 99° F (5° to 37° C)
Accuracy: +/- 1° F (+/- .5° C)
Temperature
Differential: .5°, 1°, or 2° F (.25°, .5°, or 1° C)
Storage Temperature: 14° to 140° F (-10° to 60° C)
Operating Humidity: 5% to 95% Relative Humidity
Terminations: Rc, Rh, B, O, Y1, W1, G, C
Accessories
2950 Universal Wall Plate (6.5” x 6.5” x .125”)
5970 Universal Thermostat Guard
Shipping Information
INDIVIDUAL CARTON MASTER CARTON
Dimensions: 3.8” x 5.8” x 1.6” Quantity: 12
Weight: .70 lbs. Dimensions:
11” x 11.7” x 4.3”
Cubic Feet: .32
Weight: 9.2 lbs.
Braeburn 1020NC Replaces*
Honeywell
®
TH1110
White-Rodgers
®
1F78-144, 1F78H-144
*Verify specific application requirements.
All trademarks are the property of their respective owners.
FREE Contractor Branding Available!
Visit our website (www.braeburnonline.com) for more information, contact your
local distributor or call our sales department toll-free at 866.268.5599 (U.S.),
+1.630.844.1968 (Outside the U.S.).

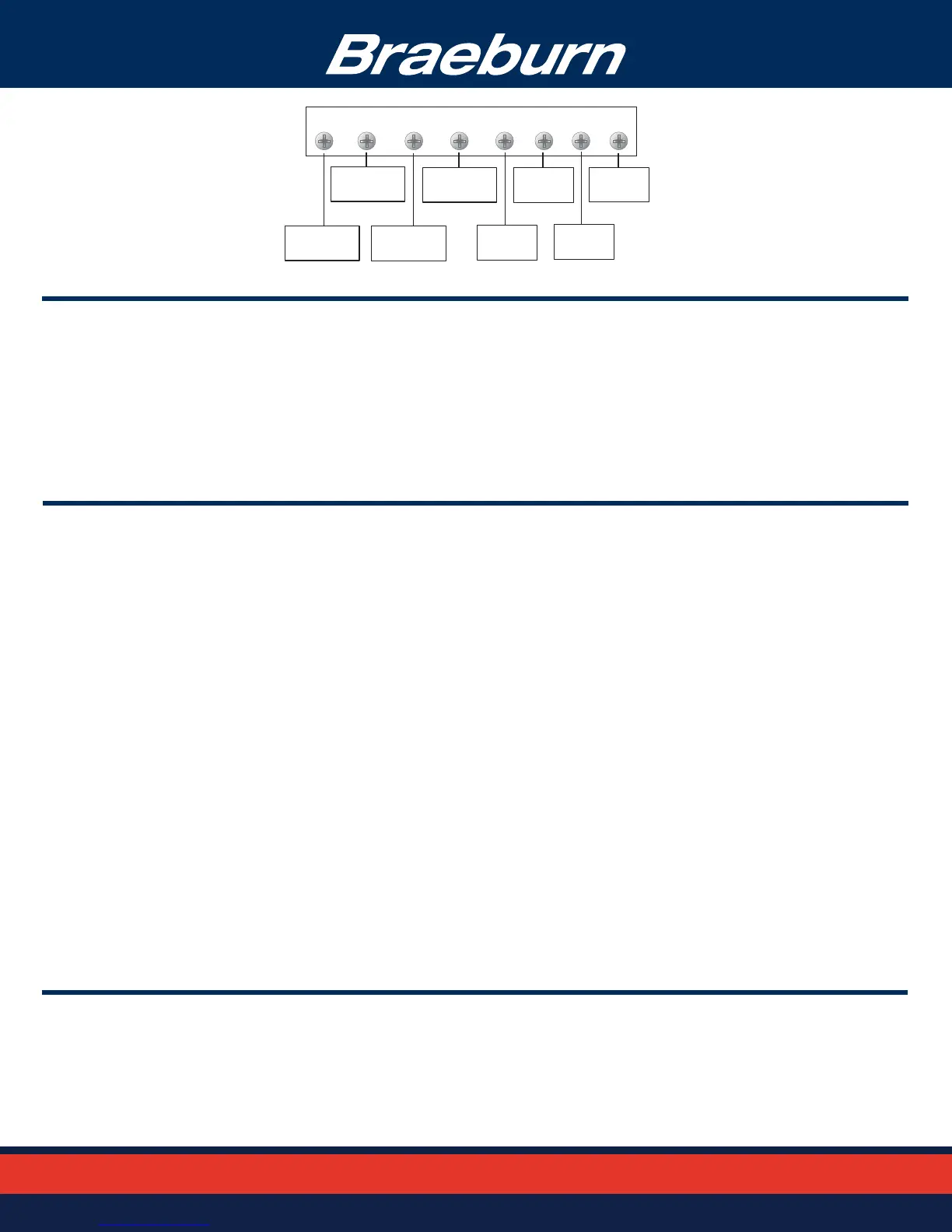

Terminal
Designations
Date: _____________________________________________
Job Name: _________________________________________
Location: __________________________________________
Contractor: ________________________________________
Engineer: __________________________________________
Model No.: _________________________________________
Submitted By: ______________________________________
Submitted For Approval: ___________ Record: ___________
Braeburn Systems LLC • 2215 Cornell Avenue • Montgomery, IL 60538 • Toll-Free 866.268.5599 (U.S.) +1.630.844.1968 (Outside the U.S.)
®
Rh Rc O B Y1 W1 G C
Cool
Control
Fan
Control
Transformer
Common
Reversing Valve
Cool Active
Reversing Valve
Heat Active
Heat 24 Volt AC
Transformer
Cool 24 Volt AC
Transformer
Heat
Control
