ED-593 : 8 Thermocouple Inputs
2. Pin Outs...
ED-582 : 4 RTD Inputs

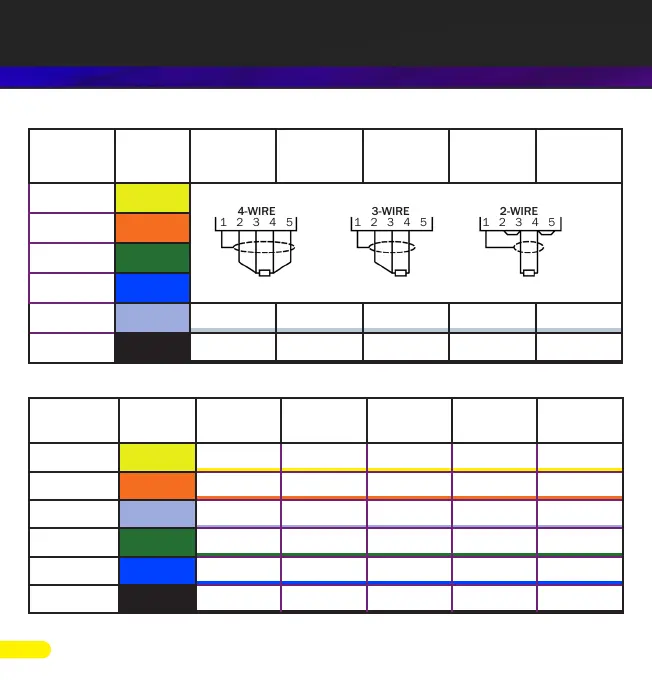

1 2 3 4 5
2-WIRE
1 2 3 4 5
4-WIRE
1 2 3 4 5
3-WIRE
Type of
Port
Terminal
Block
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
RTD Input 0
Yellow
RTD Input 1
Orange
RTD Input 2
Green
RTD Input 3
Blue
Expansion Grey SIG GND RS-485 D- RS-485 D+ RS-485 D+ RS-485 D-
Power Black -V +VA +VB -V Func. GND
Type of
Port
Terminal
Block
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5
TC Input Yellow
AGND TC 0- TC 0+ TC 1- TC 1+
TC Input Orange
AGND TC 2- TC 2+ TC 3- TC 3+
Expansion Grey
GND RS-485 D- RS-485 D+ RS-485 D+ RS-485 D-
TC Input Green
AGND TC 4- TC 4+ TC 5- TC 5+
TC Input Blue
AGND TC 6- TC 6+ TC 7- TC 7+
Power Black
-V +VA +VB -V Func GND
ED-593 : 8 Thermocouple Inputs
