Branson 2000X aed - Stand (Actuator on a Base)

4-4 100-214-276 Rev. 3
Chapter 4: Installation and Setup
Handling and Unpacking
4.2.3 Stand (actuator on a base)
CAUTION
!
Heed the “This End Up” arrows and the “Open Top First” instructions. The packaging is
designed to be removed from the assemblies from an upright orientation only.

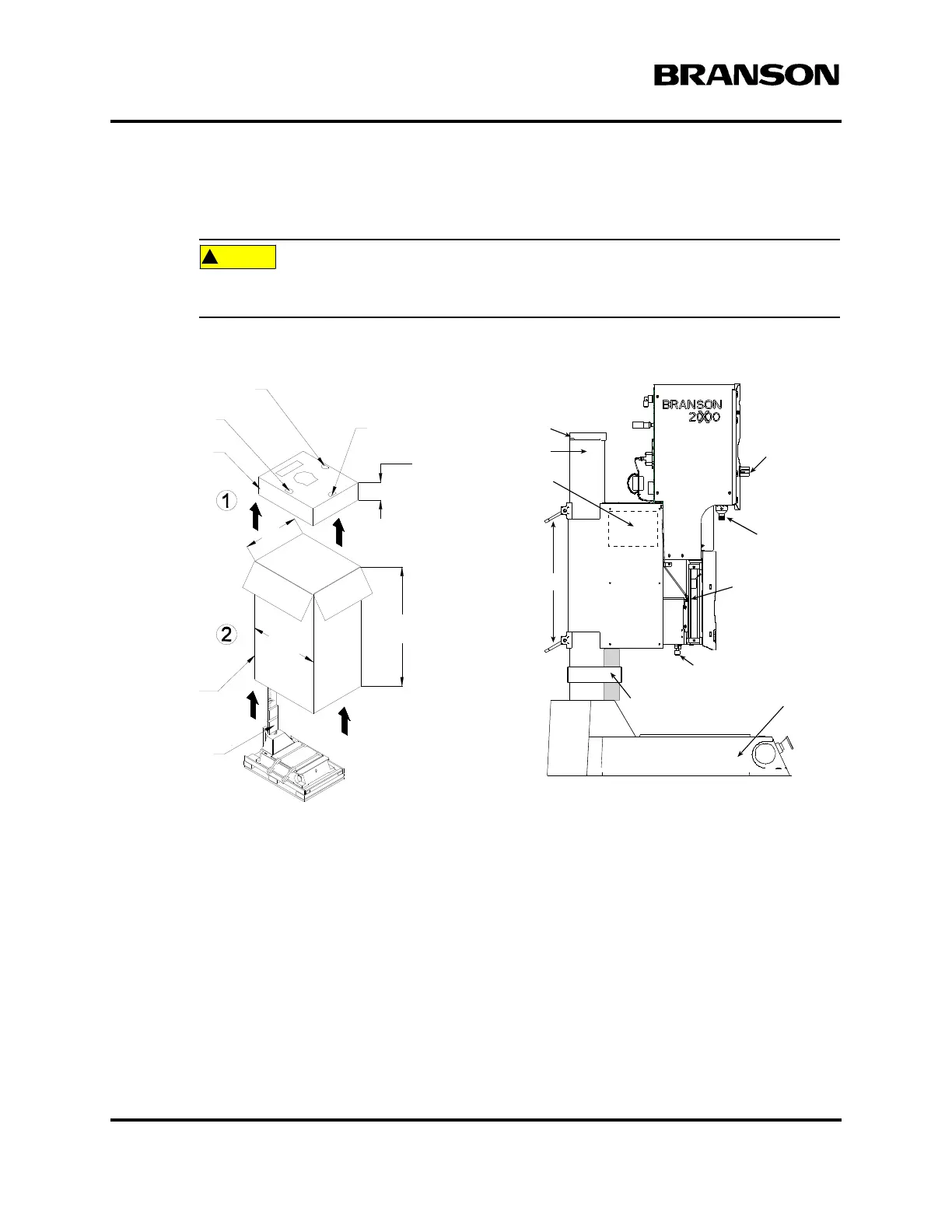

Figure 4.2 Unpacking the Stand (Actuator on a Base); Left-side View of Stand
Air Pressure
Adjust
Downspeed
Control
Encoder
(2000X aed only)
Mechanical
Stop Adjust
Column Support Clamps
Actuator
Support
Column
Base
Spring
Swivel
Wood Block for Shipping
Tool Kit
Converter
Booster
18in.
Protective
Box
wood block
for shipping
53in.
32-1/2in.
Insert
Box
