outer side up and off the hook located on the opposite side
(see figure 6).

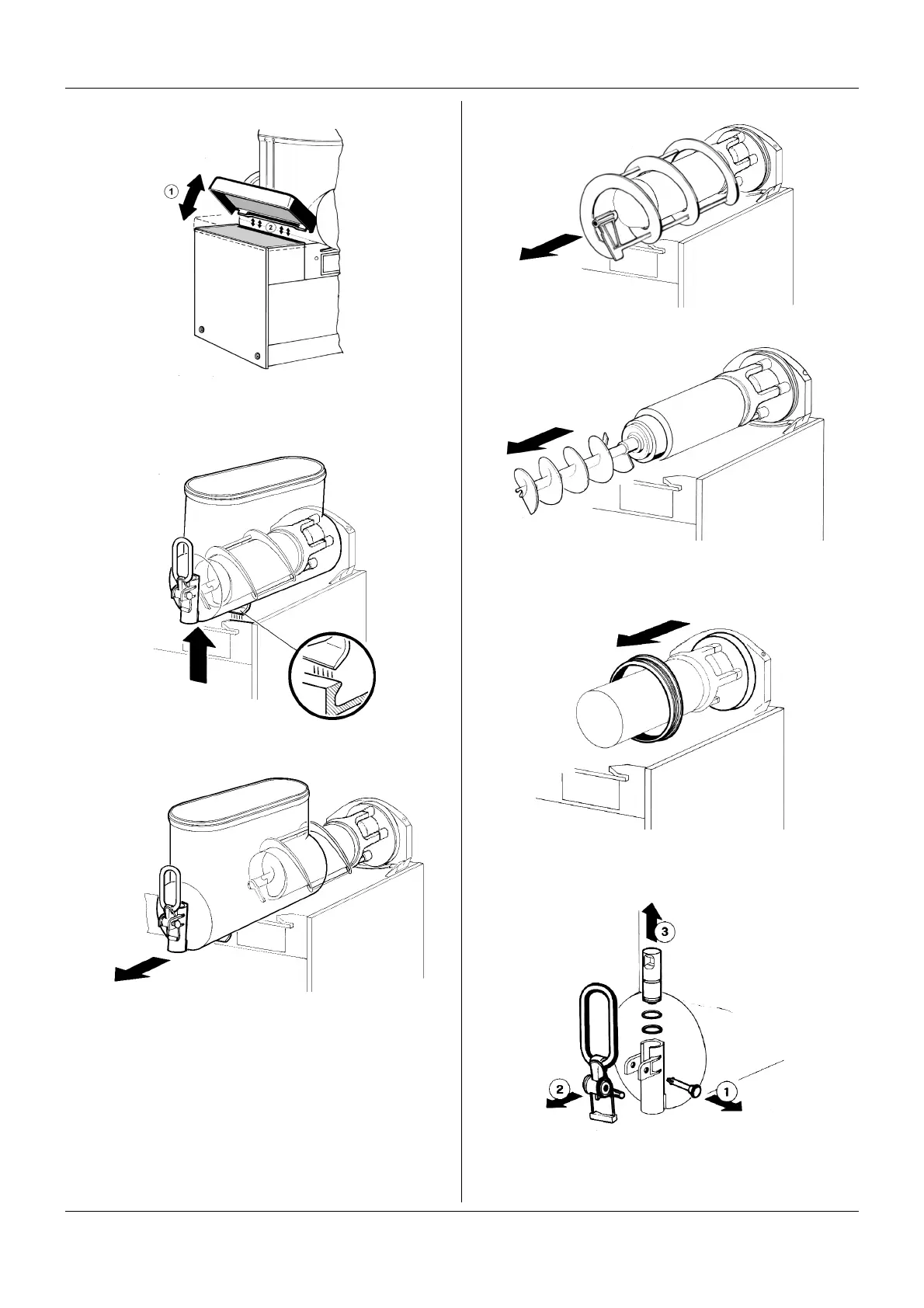

figure 6
3 - Remove the bowl by lifting its faucet side up and off the
fastening hooks (see figure 7) and slide it out (see figure
8).
figure 7
figure 8
4 - Slide the outer spiral out (see 4 -) and then the inside
auger (see figure 10).
figure 9
figure 10
5 - Remove the bowl gasket from its seat (see figure 11).
figure 11
6 - Dismantle the faucet assembly (see figure 12).
figure 12
7 - Slide the drip tray out and empty it.
