Brasch GSE Generation 2 - Page 45

IOM01
Rev 1.0 – December 22, 2020 45
JP2 JP3
4-20 mA
2-10 VDC
1-5 VDC
0.2-1 VDC
JP2 JP3
JP2 JP3
JP2 JP3

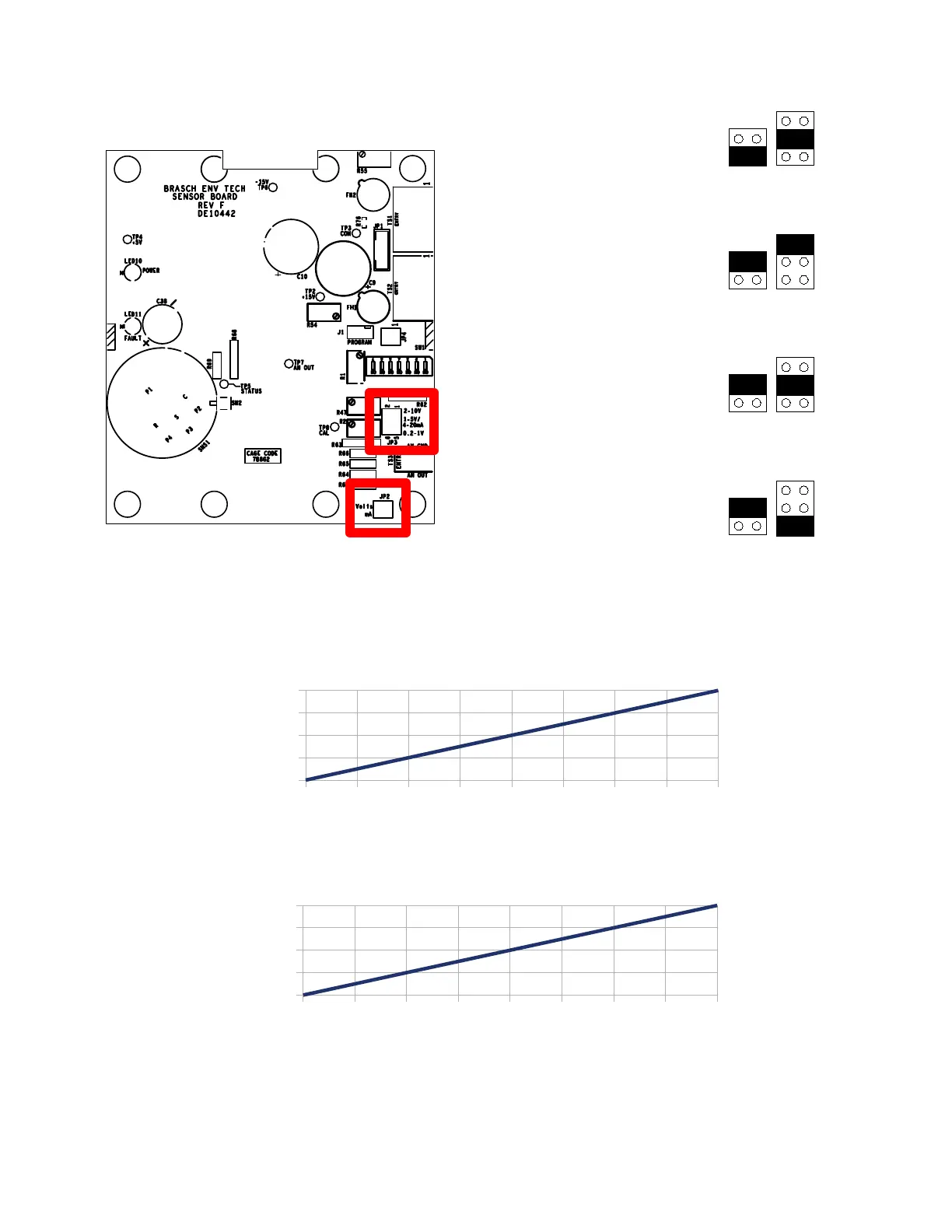

Figure 13: Proportional Output Settings
Figure 14: Proportional Output Graphs
4 6 8 10 12 14 16 18 20
0
50
100
150
200
Carbon Monoxide
Output (mA)
Concentration (ppm CO)
4 6 8 10 12 14 16 18 20
0
2.5
5
7.5
10
Nitrogen Dioxide
Output (mA)
Concentration (ppm NO2)
