Braun 07 Series User Manual

Page 75
T
M
U
N
F
O
LD
(O
UT
)
F
O
L
D
(
I
N
)
D
O
W
N
U
P
ADA Standee
and Interlock
Decal #19342
Actual Size:
2-1/2" W. x 3-1/8" T.
Warnings and
Lift Operating
Instructions
Decal 27204
Actual Size:
2-1/2" W.
x
9-5/8" T.
Note: Additional
instruction decals
supplied in the
installation package.
Die-Cut
Braun Logo
Decal
#29823
Actual Size:
2-3/8" W.
x
14-1/4" T.
Actual Size:
1-13/16" W. x 2-1/16" T.
Braun 2000
“Providing Access
to The World™”
Logo Decal
#25652
25580

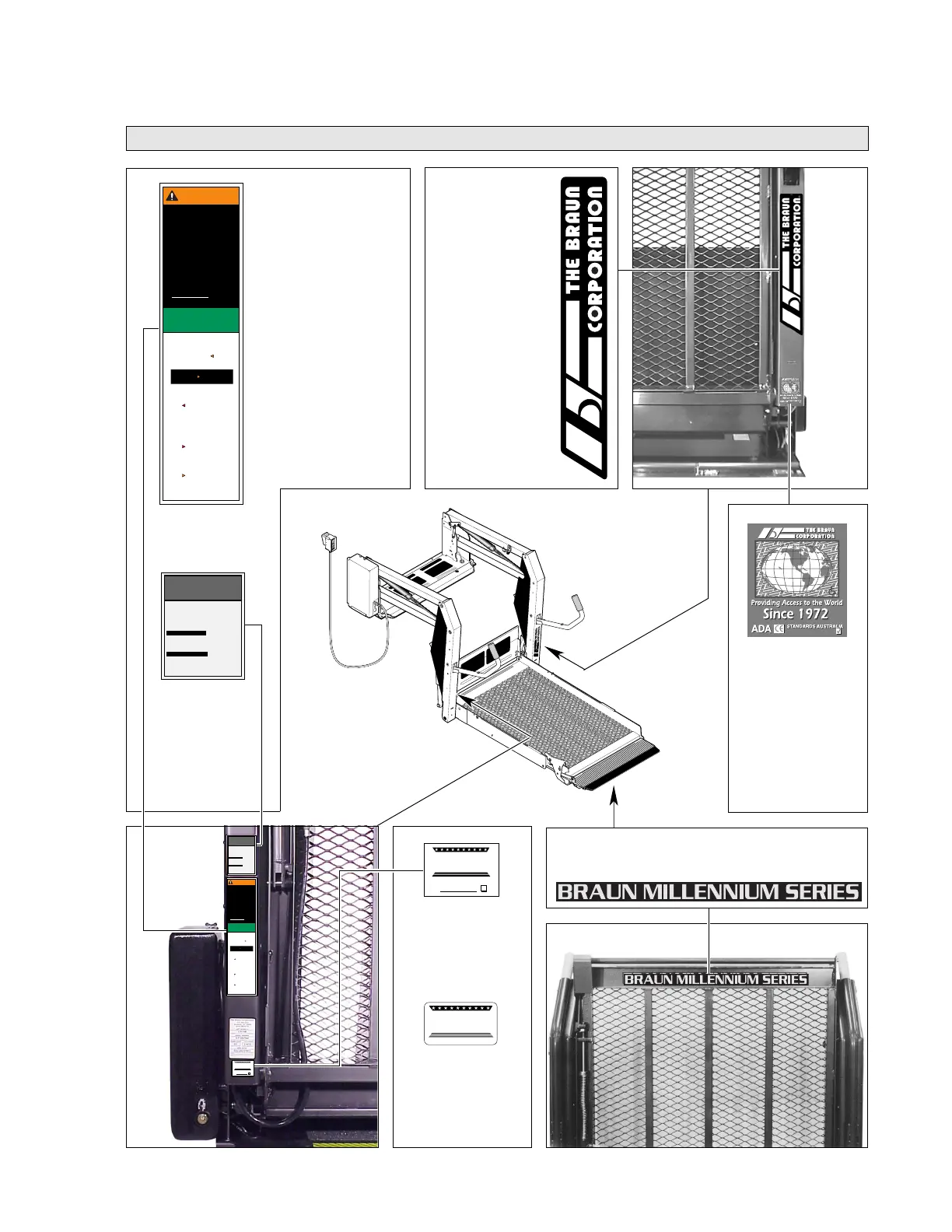

Decals and Antiskid
Lift-Posted Decals
25652
25652
Note: Made-In-
America (only)
Decal #15641
is available.
Made-In-America
and Inspected By
Decal #18229
Actual Size:
1-11/16" W. x 1-3/16" T.
Braun Millennium Series™ Decal #25580
Actual Size: 24" W. x 1-1/2" T.
25580
OPERATING
INSTRUCTIONS
19342
Standees must
stand at center of platform (fully inside
yellow boundaries), grip handrails and
lower head to clear door jamb header.
Lift Interlocks
vary in type and operation. Interlock
(if equipped) must be operated as
instructed by transit authority.
Read warnings and operate lift as
outlined on LIFT OPERATING
INSTRUCTIONS decal. Lift operating
instructions apply to wheelchair
passengers and standees.
Standee Instructions:
Interlock Instructions:
U.S. Patent No. 6,065,924
Patents Pending
W
A
RNING
LIFT OPERATING
INSTRUCTIONS
• Read manual before operating lift.
• Load and unload on level surface
only.
• Engage vehicle parking brake before
operating lift.
• Provide adequate clearance outside
of vehicle to accommodate lift.
• Do not operate lift if you suspect lift
damage, wear or any abnormal
condition.
• Keep operator and bystanders clear
of area in which lift operates.
Whenever a wheelchair passenger
is on the platform, the:
• Passenger must be positioned
fully inside yellow boundaries
• Wheelchair brakes must be locked
• Roll stop(s) must be up
Failure to follow these rules may result
in serious bodily injury and/or property
damage.
OPEN DOOR(S) AND SECURE
TO UNFOLD PLATFORM:
Stand clear and press UNFOLD
switch until platform stops (reaches
floor level).
Note: In event platform does not
unfold, press FOLD switch to
release Lift-Tite™ latches.
TO UNLOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press DOWN switch until entire
platform reaches ground level and
roll stop unfolds fully.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO LOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press UP switch to fold roll stop
up and raise platform to floor level.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO FOLD PLATFORM:
Press FOLD switch until platform
stops. Release switch.
CLOSE DOOR(S)
27204
U.S. Patent No. 5,261,779
U.S. Patent No. 5,806,632
U.S. Patent No. 6,065,924
Patents Pending
W
A
RNING
LIFT OPERATING
INSTRUCTIONS
• Read manual before operating lift.
• Load and unload on level surface
only.
• Engage vehicle parking brake before
operating lift.
• Provide adequate clearance outside
of vehicle to accommodate lift.
• Do not operate lift if you suspect lift
damage, wear or any abnormal
condition.
• Keep operator and bystanders clear
of area in which lift operates.
Whenever a wheelchair passenger
is on the platform, the:
• Passenger must be positioned
fully inside yellow boundaries
• Wheelchair brakes must be locked
• Roll stop(s) must be up
Failure to follow these rules may result
in serious bodily injury and/or property
damage.
OPEN DOOR(S) AND SECURE
TO UNFOLD PLATFORM:
Stand clear and press UNFOLD
switch until platform stops (reaches
floor level).
Note: In event platform does not
unfold, press FOLD switch to
release Lift-Tite™ latches.
TO UNLOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press DOWN switch until entire
platform reaches ground level and
roll stop unfolds fully.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO LOAD PASSENGER:
1. Load passenger onto platform and
lock wheelchair brakes.
2. Press UP switch to fold roll stop
up and raise platform to floor level.
3. Unlock wheelchair brakes and unload
passenger from platform.
TO FOLD PLATFORM:
Press FOLD switch until platform
stops. Release switch.
CLOSE DOOR(S)
27204
U.S. Patent No. 5,261,779
U.S. Patent No. 5,806,632
®
29823
MADE IN
AMERICA
Quality inspected
By:
✓
18229
S
S
S
S
MADE IN
AMERICA
15641
OPERATING
INSTRUCTIONS
19342
Standees must
stand at center of platform (fully inside
yellow boundaries), grip handrails and
lower head to clear door jamb header.
Lift Interlocks
vary in type and operation. Interlock
(if equipped) must be operated as
instructed by transit authority.
Read warnings and operate lift as
outlined on LIFT OPERATING
INSTRUCTIONS decal. Lift operating
instructions apply to wheelchair
passengers and standees.
Standee Instructions:
Interlock Instructions:
MADE IN
AMERICA
Quality inspected
By:
✓
18229
S
S
