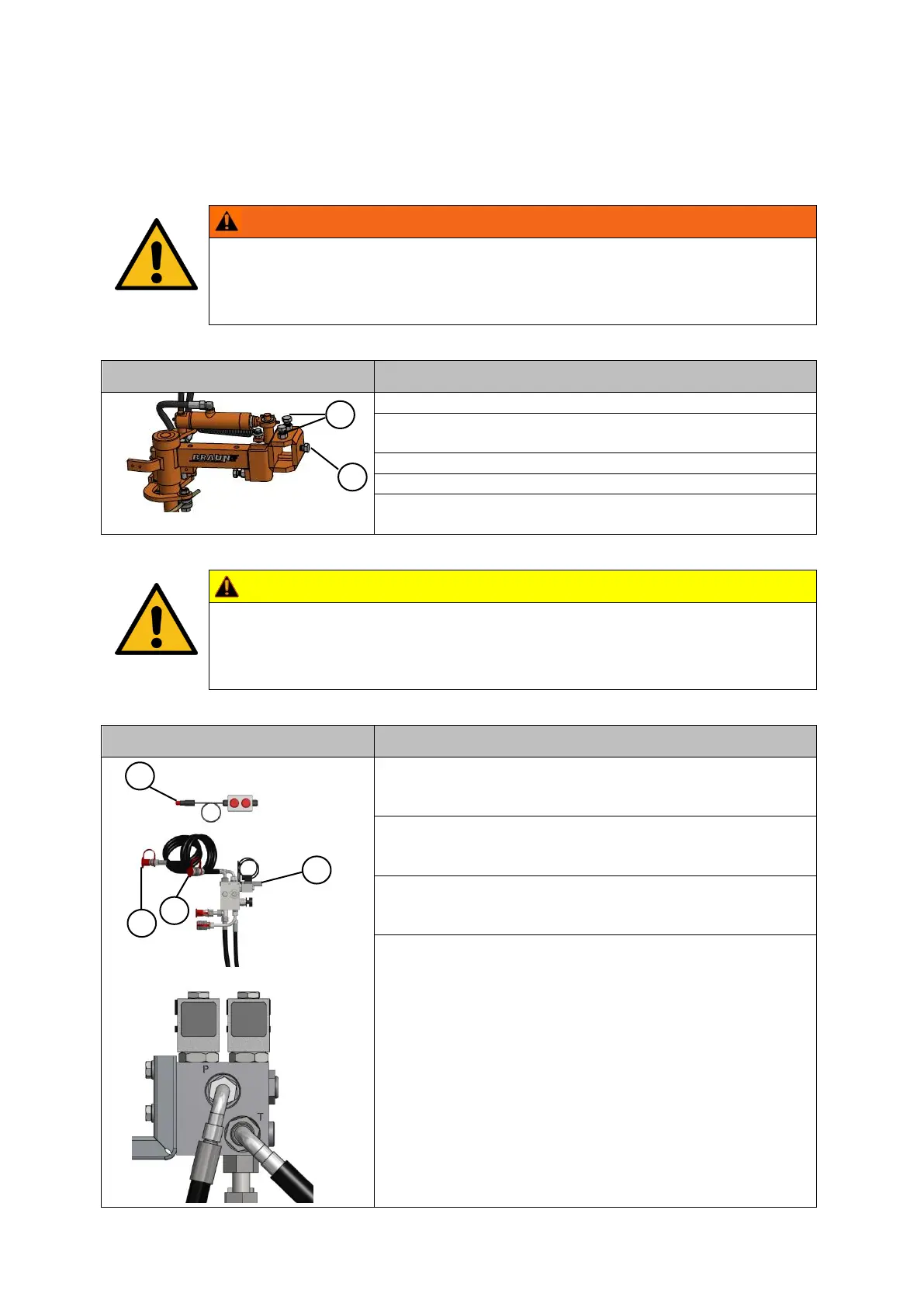

4 Before use
4.1 Installation
4.1.1 Installation description LUV
WARNING
The LUV can fall over
Your lower limbs could be crushed
 Wear safety shoes
 Handle heavy loads with lifting gear
Component
Installation steps
1. Push the LUV recess onto the square 50 x 50
2. Push the LUV so that it is flush with the front
edge of the square
3. Insert the bolt (1)
4. Adjust and lock the adjusting bolts (2)
5. Firmly tighten up the bolt (1)
CAUTION
Slipping of the hydraulic couplings
Minor hand injuries
 Wear safety shoes
 Careful handling
Component
Assembly steps
1. Connect the hydraulic coupling (1) pressure
hose (control block marking P) to the control unit
of the tractor
2. Connect the hydraulic coupling (2) pressure
hose (control block marking T) to the
unpressurised return line of the tractor
3. Plug the square tube of the remote control into
the requisite holder and screw it up tight
4. Connect the 12 V plug (4) to the electrical
system of the tractor
