6 Servicing and cleaning / customer
6.1 Safety measures
 The operator must clean any dirt off the unit
o Rough cleaning, grass, etc.
 The operator must lubricate the unit
CAUTION
Sharp edges
Cuts on the hands
 Wear protective gloves
 Use a suitable tool for cleaning
6.2 Servicing by specialist technicians
6.2.1 Blade bolt
Check the blade bolt:
 each time before starting work.
 before using for the first time.
 one hour after using for the first time.
 depending on the intensity of the work and the soil properties.

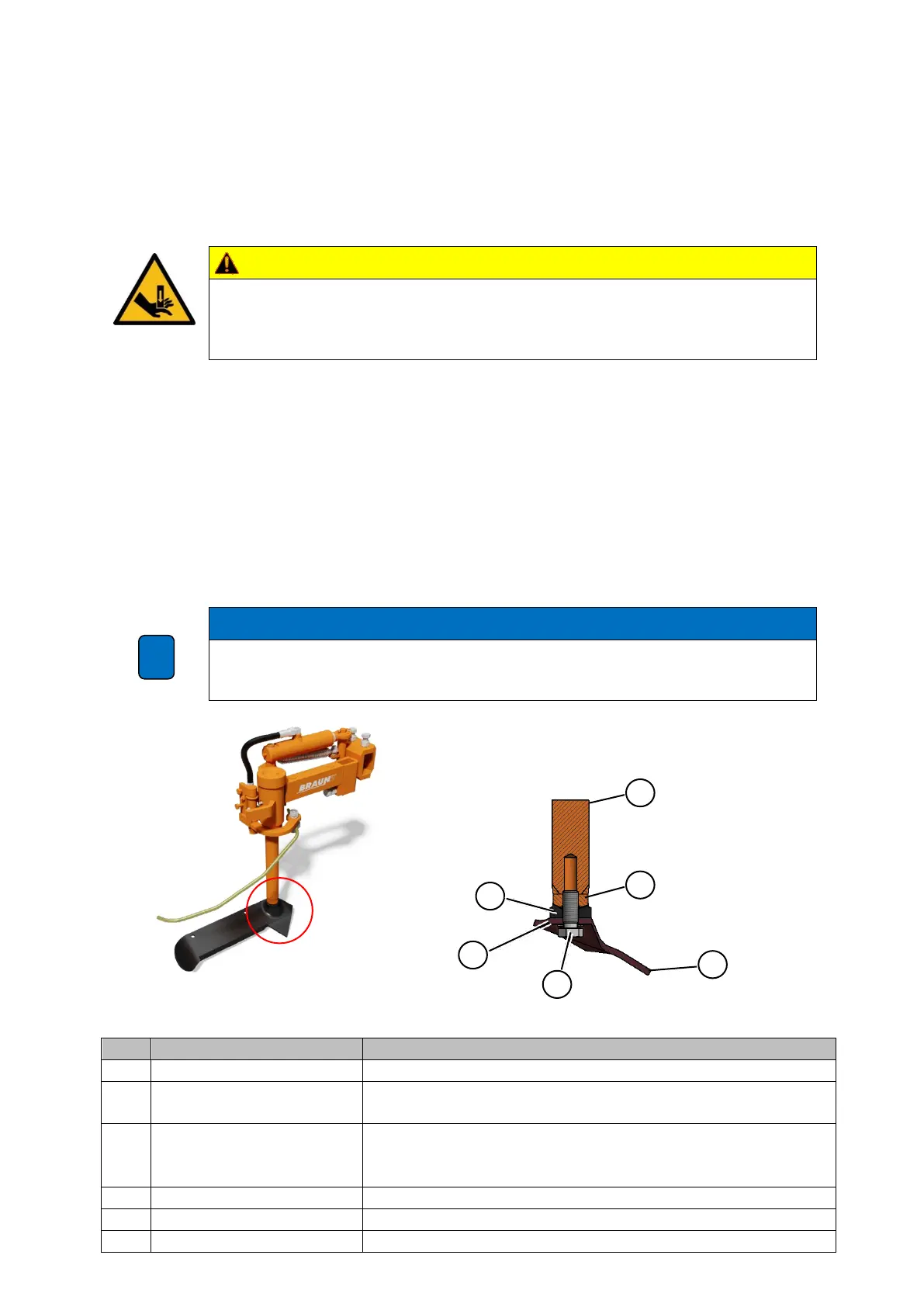

Figure 5: Blade bolt
Item
Designation
Spare part No.
1
Blade shaft
001481/0014811
2
Toothed disk to blade shaft
Upper part: 208011
Pair: 208013
3
Blades
Crow's foot blade toothed disk 350 mm: 00125151/00121511
Crow's foot blade toothed disk 350 mm: 001146/01147
Crow's foot blade toothed disk 500 mm: 001211301/001211311
4
Blade bolt
M16x50 10.9 101165021
5
Wedge locking screw
20517201
6
Toothed disk to blade shaft
208012
NOTE
Blade bolt can become loose
Toothed disk worn
 Tighten up blade bolt to 300 Nm
5
6
2
1
3
4
i
