Braun LUV PERFEKT - Threaded Pin Short Multi-Splined Shaft; Lubrication

20

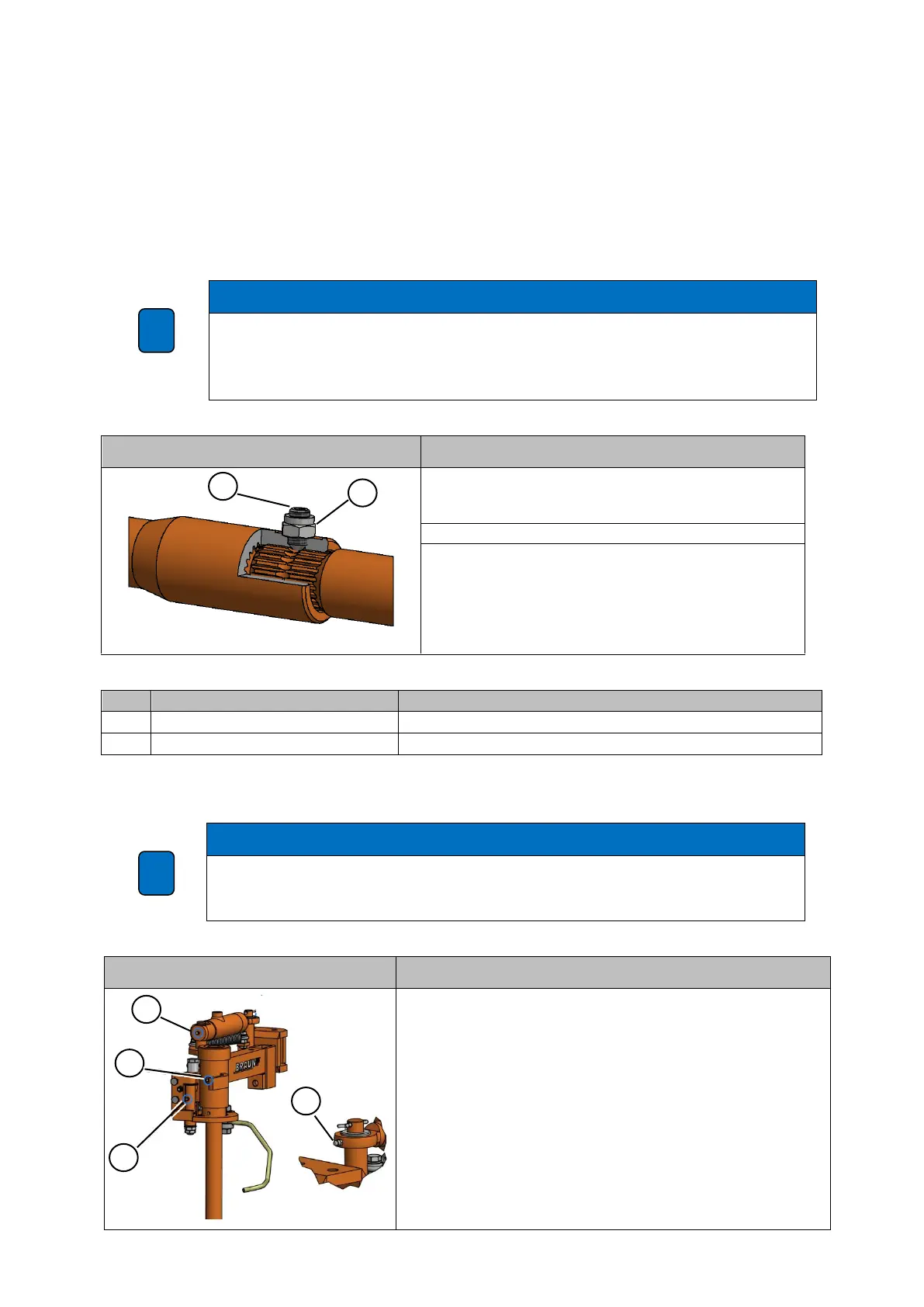

6.2.2 Threaded pin short multi-splined shaft
Checking the threaded pin:
 each time before starting work.
 before using for the first time.
 one hour after using for the first time.
 depending on the intensity of the work and the soil properties.
NOTE
Threaded pin can become loose
Multi-splined profile of the weed blade shaft is damaged
Tool can become loose
 Tighten up the threaded pin to 35 Nm and lock in place
Component
Adjustment steps
1. Position the threaded pin (1) in the groove
(Ensure that the threaded pin engages into
the groove)
2. Tighten up the threaded pin (1) to 35 Nm
3. Lock with the hexagonal nut (2)
Item
Designation
Spare part No.
1
Threaded pin
126122000
2
Hexagonal nut
15012101
6.2.3 Lubrication
NOTE
Components run dry
Bearing points worn
 Regularly ensure lubrication
Component
Lubrication steps
1. Lubricate the following lubrication points with acid-
free industrial every 50 hours of operation:
(1) Cylinder eye
(2) Feeler shaft
(3) Central LUV shaft
(4) Cylinder housing
i
i
1
4
3
2
1
2
