BRAY Series 70 Electric Actuator
Operation and Maintenance Manual
13

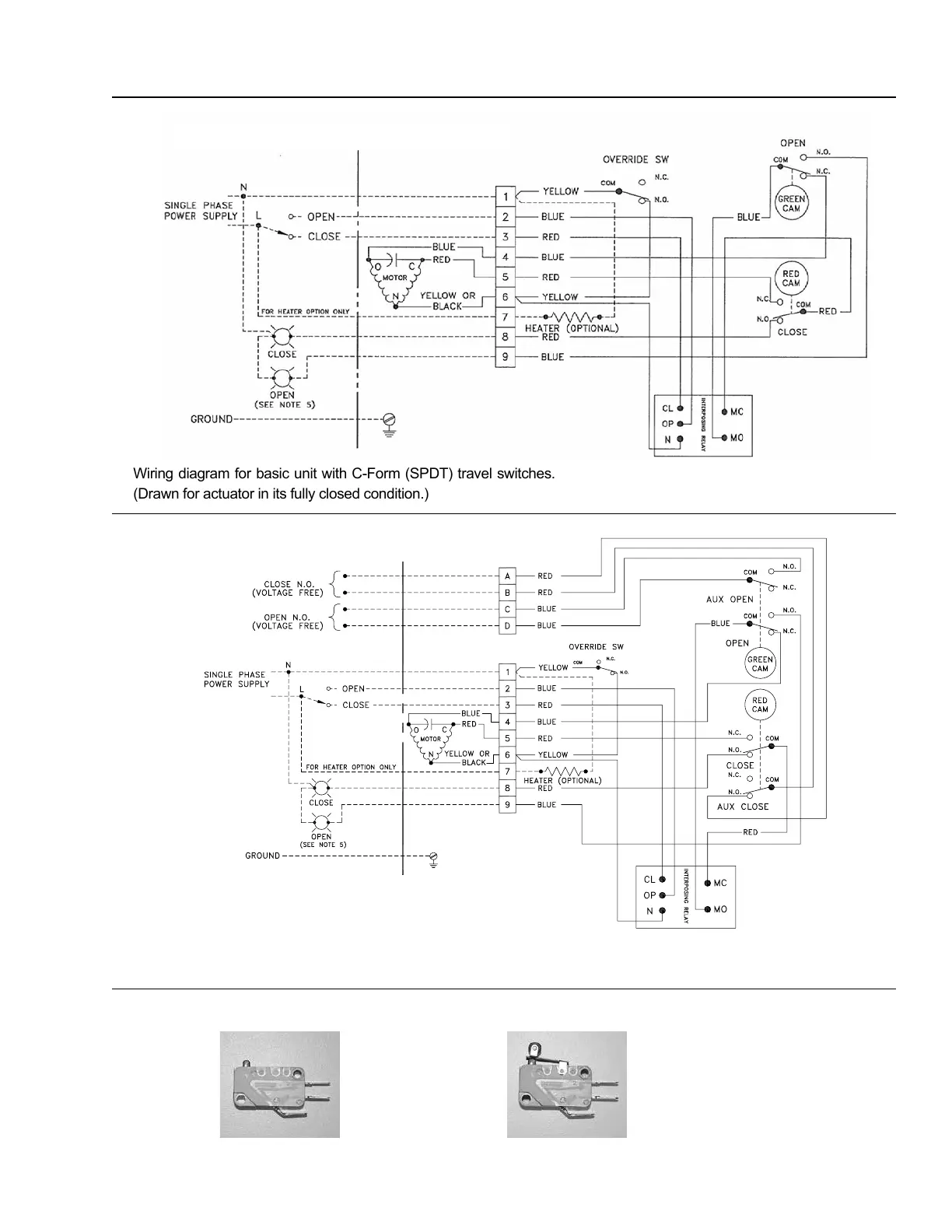

Wiring diagram for basic unit with C-Form (SPDT) travel switches.
(Drawn for actuator in its fully closed condition.)
Wiring diagram for unit with one set of “Voltage Free” C-Form (SPDT) Auxilary open/close travel switches.
(Drawn for actuator in its fully closed condition.)
Actuator ‘C’-Form Switches, SPDT
Field Wiring Actuator
Field Wiring Actuator
Housing Size:
12 & 30
V3-Sw with
Lever
COM.
N.C.
N.O.
Housing
Size: 6
V3-Sw
N.C.
N.O.
COM.
