BRAY Series 70 Electric Actuator
Operation and Maintenance Manual
24

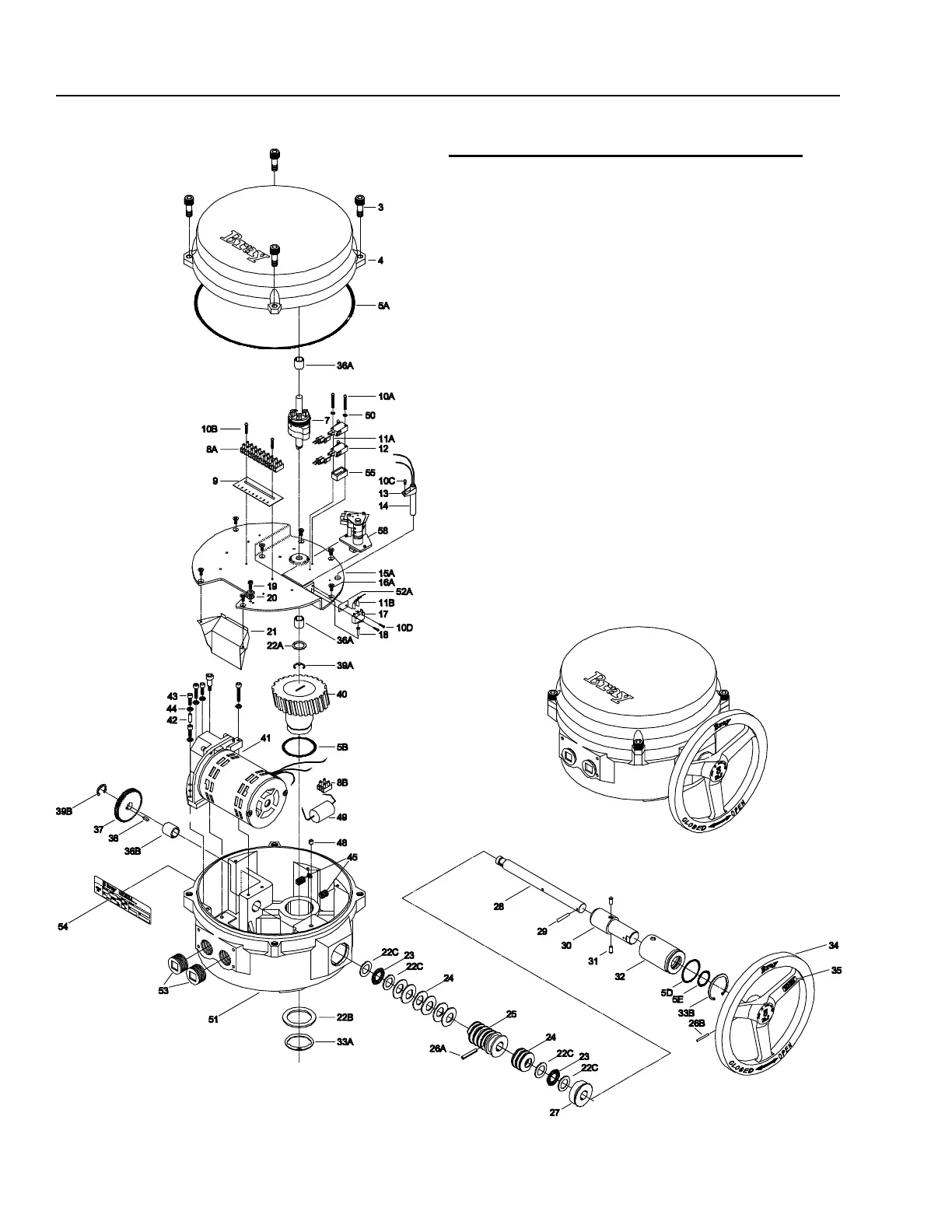

SerieS 70
HouSing Size 180 for 3:1 gear Box
ON / OFF
 1
 2
 3 COVERFASTENINGSCREWS
 4 COVER
 5 0-RING
 6
 7 CAMASSEMBLY
 8 TERMINALSTRIP
 9 TERMINALSTRIPTAG
 10 SCREW,PANHEAD
 11 WIREASSEMBLY
 12 LIMITSWITCH(SPDTFORMC)
 13 HEATERMOUNTINGBRACKET
 14 HEATER
 15 SWITCHPLATE
 16 FLATHEADSCREW
 17 OVERRIDESWITCH(SPDTFORMC)
 18 OVERRIDESWITCHTRIGGERPIN 
19 GREENGROUNDSCREW
 20 GREENCUPWASHER
 21 CONDUITWIREDEFLECTOR
 22 THRUSTWASHER
 23 THRUSTROLLERBEARING
 24 DISCSPRING
 25 WORM
 26 SPRINGPIN
 27 MANUALOVERRIDEBUSHING
 28 WORMSHAFT
 29 OVERRIDEDRIVEPIN
 30 MANUALOVERRIDESHAFT
 31 SPRINGPLUNGER
 32 MANUALOVERRIDESLEEVE
 33 RETAININGRING
 34 HANDWHEEL
 35 HANDWHEELWARNINGLABEL
 36 BUSHING
 37 DRIVEGEAR
 38 DRIVEGEARKEY
 39 E-RING
 40 OUTPUTWORMGEARSEGMENT
 41 GEARMOTOR
 42 DOWELPIN
 43 SOCKETHEADCAPSCREW
 44 LOCKWASHER
 45 TRAVELSTOPBOLT
 46
 47
 48 OVERRIDESPRINGPIN
 49 CAPACITOR
 50 FIBERWASHER
 51 BASE
 52 INSULATOR
 53 CONDUITPLUG
 54 NAMETAG
 55 SWITCHSPACER
 56
 57
 58 TORQUESWITCHASSEMBLY
Items 13, 14 and 10C are optional.
