Bray 70 Series Operation And Maintenance Manual

BRAY Series 70 Electric Actuator
Operation and Maintenance Manual
25
SerieS 70

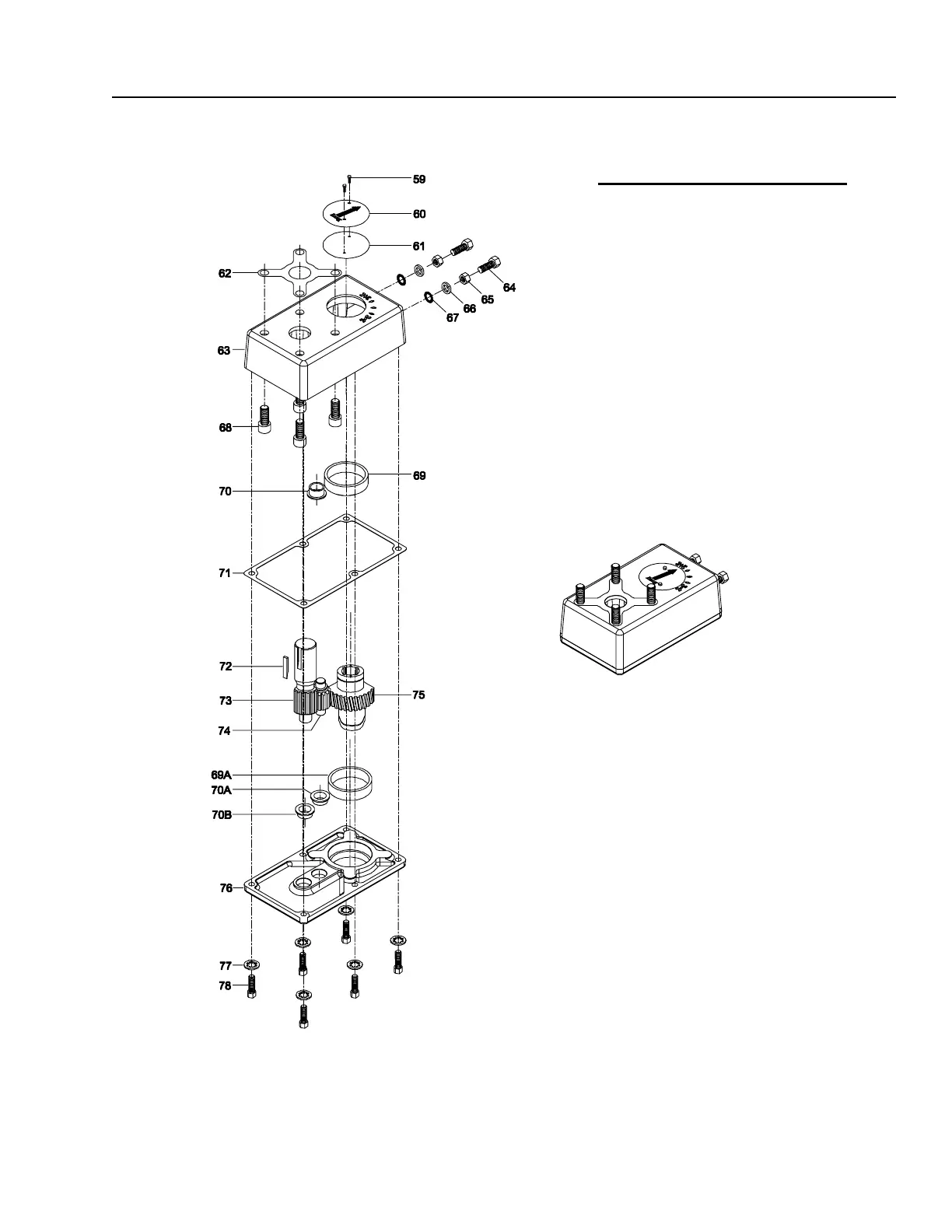

3:1 gear Box
ON / OFF
 59 INDICATORFASTENINGSCREW
 60 POSITIONINDICATORPLATE
 61 POSITIONINDICATORGASKET
 62 ACTUATOR/GEARBOXGASKET
 63 COVER
 64 TRAVELSTOPBOLT
 65 LOCKNUT
 66 NYLONFLATWASHER
 67 O-RING
 68 ACTUATOR/GEARBOXFASTENINGSCREW
 69 OUTPUTGEARBEARING
 70 IDLER/INPUTGEARBEARING
 71 COVERGASKET
 72 INPUTGEARKEY
 73 INPUTGEAR
 74 IDLERGEAR
 75 OUTPUTGEAR
 76 BASE
 77 LOCKWASHER
 78 BASEFASTENINGSCREW
