2.0 INSTALLATION
2.1 PREPARATION |
Factory packaging must be removed and some minor
assembly work is required prior to installation.
Foam protective blocks must be removed from blowers and
auger motor. This is a safety precaution. The circuit board/
control panel must be unplugged and installed in the side
flashing {with insert installation). Free the power cord.
NOTE: Normally, your dealer will perform these functions.
2.2 CLEARANCES
The Breckwell P23 has been tested and listed for installation
in residential, mobile home, and alcove applications.
ThB P23 is approved for installation into masonry fireplaces.
FLOOR PROTECTION
(Minimum 22" wide x 31" deep)

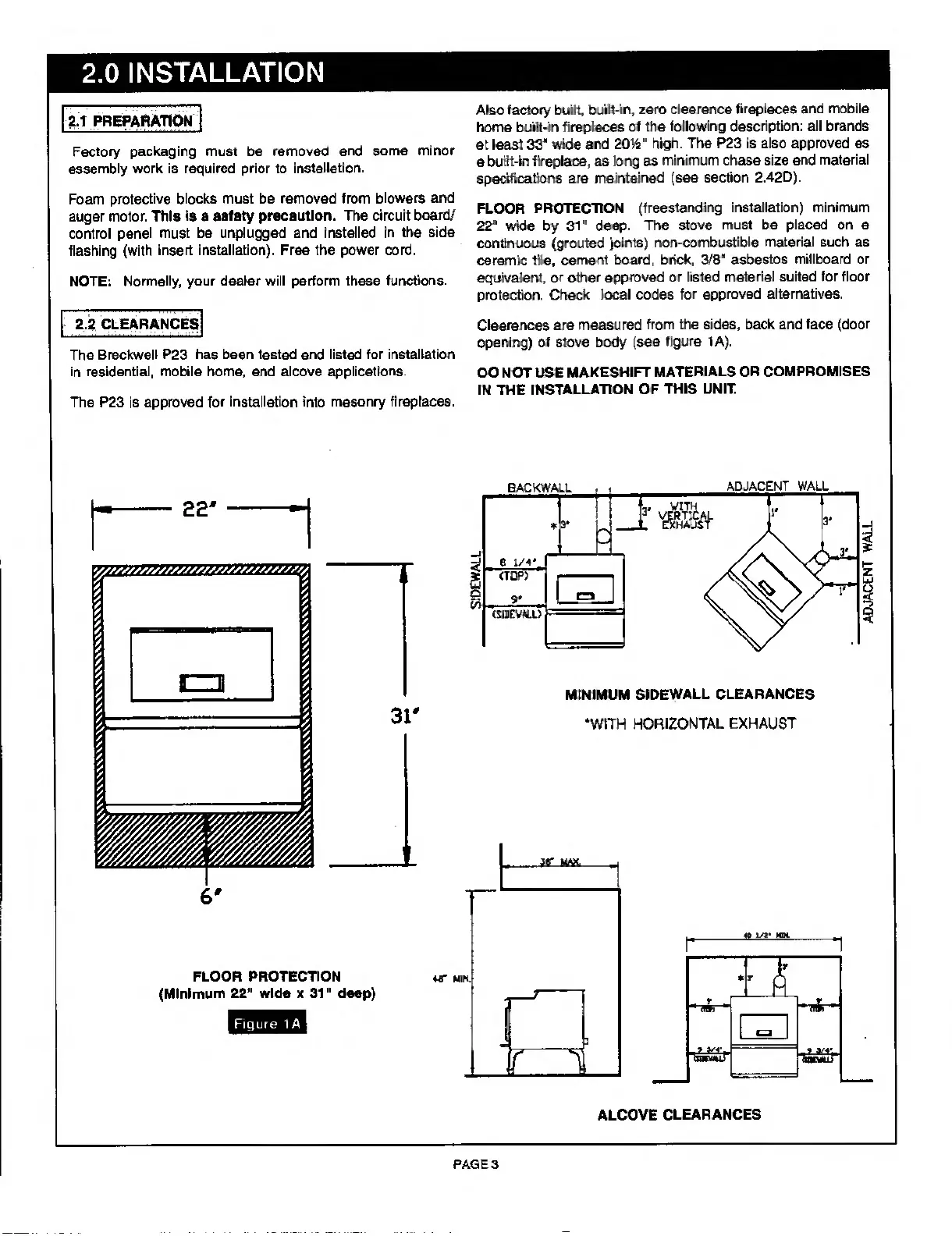

Figure 1A
SIDEWALL
Also factory built, built-in, zero clearance fireplaces and mobile
home built-in fireplaces of the following description: all brands
at least 33" wide and 20%“ high. The P23 is also approved as
a built-in fireplace, as long as minimum chase size and material
specifications are maintained (see section 2.42D).
FLOOR PROTECTION (freestanding installation) minimum
22" wide by 31“ deep. The stove must be placed on a
continuous (grouted joints) non-combustible material such as
ceramic tile, cement board, brick, 3/8" asbestos millboard or
equivalent, or other approved or listed material suited for floor
protection. Check local codes for approved alternatives.
Clearances are measured from the sides, back and face (door
opening) of stove body (see figure 1A).
DO NOT USE MAKESHIFT MATERIALS OR COMPROMISES
IN THE INSTALLATION OF THIS UNIT.
MINIMUM SIDEWALL CLEARANCES
‘WITH HORIZONTAL EXHAUST
r -““—1
F
*
lA.
, ■
*wr*
[
a
TnuLuT
CSS
—
ALCOVE CLEARANCES
ttvw
iNSOvrav
