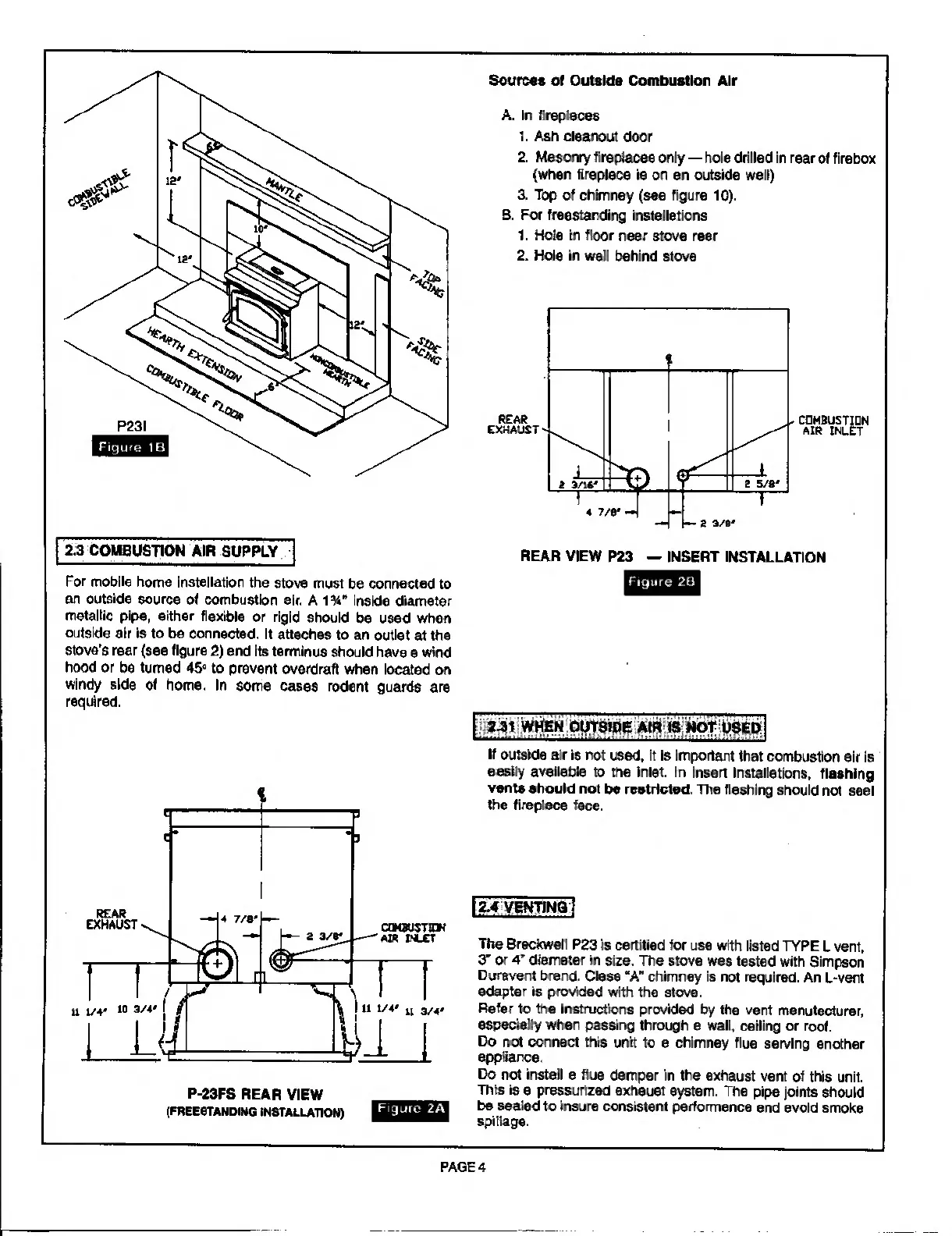

2.3 COMBUSTION AIR SUPPLY
For mobile home installation the stove must be connected to
an outside source of combustion air. A 1%” inside diameter
metallic pipe, either flexible or rigid should be used when
outside air is to be connected. It attaches to an outlet at the
stove’s rear {see figure 2) and its terminus should have a wind
hood or be turned 45° to prevent overdraft when located on
windy side of home. In some cases rodent guards are
required.
P-23FS REAR VIEW _____
(FREESTANDING INSTALLATION)
Sources of Outside Combustion Air
A. In fireplaces
1. Ash cleanout door
2. Masonry fireplaces only — hole drilled in rear of firebox
(when fireplace is on an outside wall)
3. Top of chimney (see figure 10).
B. For freestanding installations
1. Hole in floor near stove rear
2. Hole in wall behind stove
REAR VIEW P23 — INSERT INSTALLATION
Figure 2B
[ ' g-ai WHEN 0UT8IPE AIR IS NOT U$EP
If outside air is not used, it is important that combustion air is
easily available to the inlet. In insert installations, flashing
vents should not be restricted. The flashing should not seal
the fireplace face.
The Breckwell P23 is certified for use with listed TYPE L vent,
3" or 4" diameter in size. The stove was tested with Simpson
Duravent brand. Class “A" chimney is not required. An L-vent
adapter is provided with the stove.
Refer to the instructions provided by the vent manufacturer,
especially when passing through a wall, ceiling or roof.
Do not connect this unit to a chimney flue serving another
appliance.
Do not install a flue damper in the exhaust vent of this unit.
This is a pressurized exhaust system. The pipe joints should
be sealed to insure consistent performance and avoid smoke
spillage.
