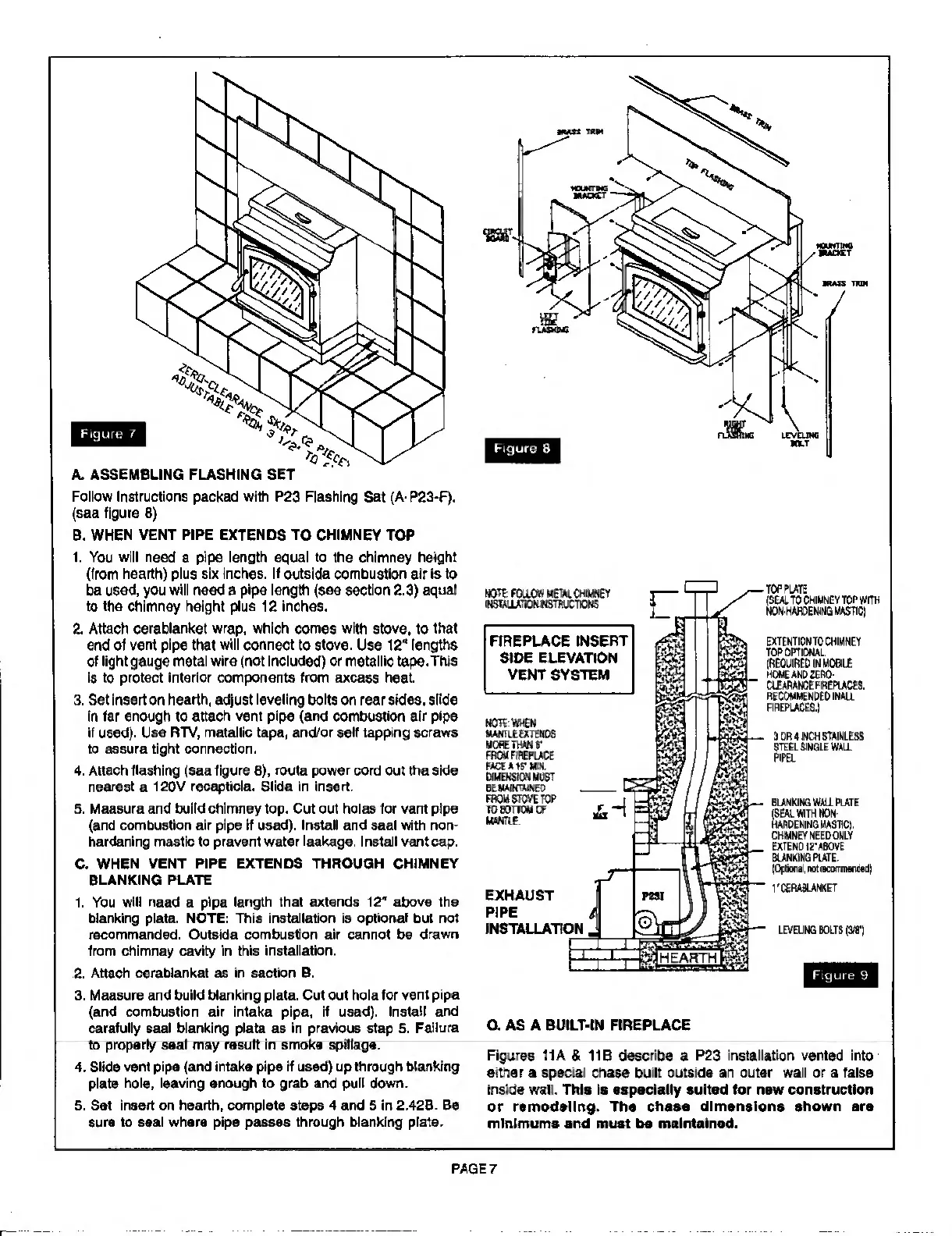

A.
ASSEMBLING
FLASHING
SET
Follow
instructions
packed
with
P23
Flashing
Set
(A-P23-F).
(see
figure
8)
B.
WHEN
VENT
PIPE
EXTENDS
TO
CHIMNEY
TOP
1.
You
will
need
a
pipe
length
equal
to
the
chimney
height
(from
hearth)
plus
six
inches.
If
outside
combustion
air
is
to
be
used,
you
will
need
a
pipe
length
(see
section
2.3)
equal
to
the
chimney
height
plus
12
inches.
2.
Attach
cerablanket
wrap,
which
comes
with
stove,
to
that
end
of
vent
pipe
that
will
connect
to
stove.
Use
12"
lengths
of
light
gauge
metal
wire
(not
included)
or
metallic
tape.
This
is
to
protect
interior
components
from
excess
heat.
3.
Set
insert
on
hearth,
adjust
leveling
bolts
on
rear
sides,
slide
in
far
enough
to
attach
vent
pipe
(and
combustion
air
pipe
if
used).
Use
RTV,
metallic
tape,
and/or
self
tapping
screws
to
assure
tight
connection.
4.
Attach
flashing
(see
figure
8),
route
power
cord
out
the
side
nearest
a
120V
recepticle.
Slide
in
insert.
5.
Measure
and
build
chimney
top.
Cut
out
holes
for
vent
pipe
(and
combustion
air
pipe
if
used).
Install
and
seal
with
non¬
hardening
mastic
to
prevent
water
leakage.
Install
vent
cap.
C.
WHEN
VENT
PIPE
EXTENDS
THROUGH
CHIMNEY
BLANKING
PLATE
1.
You
will
need
a
pipe
length
that
extends
12"
above
the
blanking
plate.
NOTE:
This
installation
is
optional
but
not
recommended.
Outside
combustion
air
cannot
be
drawn
from
chimney
cavity
in
this
installation.
2.
Attach
cerablanket
as
in
section
B.
3.
Measure
and
build
blanking
plate.
Cut
out
hole
for
vent
pipe
(and
combustion
air
intake
pipe,
if
used).
Install
and
carefully
seal
blanking
plate
as
in
previous
step
5.
Failure
to
properly
seal
may
result
in
smoke
spillage.
4.
Slide
vent
pipe
(and
intake
pipe
if
used)
up
through
blanking
plate
hole,
leaving
enough
to
grab
and
pull
down.
5.
Set
insert
on
hearth,
complete
steps
4
and
5
in
2.42B.
Be
sure
to
seal
where
pipe
passes
through
blanking
plate.
NOTE:
FOLLOW
METAL
CHIMNEY
INSTALLATION
INSTRUCTIONS
FIREPLACE
INSERT
SIDE
ELEVATION
VENT
SYSTEM
NOTE
WHEN
MANTLE
EXTENDS
MORE
THAN
6‘
FROM
FIREPLACE
FACE
A
IF
MIN.
DIMENSION
MUS
T
BE
MAINTAINED
FROM
STOVE
TOP
TO
BOTTOM
OP
MANTLE.
EXHAUST
PIPE
INSTALLATION
J
TOP
PLATE
(SEAL
TO
CHIMNEY
TOP
WITH
NON-HARDENING
MASTIC]
EXTENTIONTO
CHIMNEY
TOP
OPTIONAL
(REQUIRED
IN
MOBILE
HOME
ANO
ZERO-
CLEARANCEFIREPLACES.
RECOMMENDED
INAU
FIREPLACES.)
3
OR
4
INCH
STAINLESS
STEEL
SINGLE
WAU.
pipa
BUNKING
WAU
PLATE
(SEAL
WITH
NON¬
HARDENING
MASTIC).
CHIMNEY
NEEDONLY
EXTEND
12‘ABOVE
BLANKING
PUTE.
(Opforal,
notracommaided)
VCERA8UNKET
LEVEUNG
BOLTS
(M'J
Figure
9
D.
A
S
A
BUILT-IN
FIREPLACE
Figures
11A
&
11B
describe
a
P23
installation
vented
into-
either
a
special
chase
built
outside
an
outer
wall
or
a
false
inside
wall.
This
is
especially
suited
for
new
construction
or
remodeling.
The
chase
dimensions
shown
are
mlnlmums
and
must
be
maintained.
PAGE
7
