Bredel 20 - Pump Head Assembly Details

SPECIFICATIONS
56

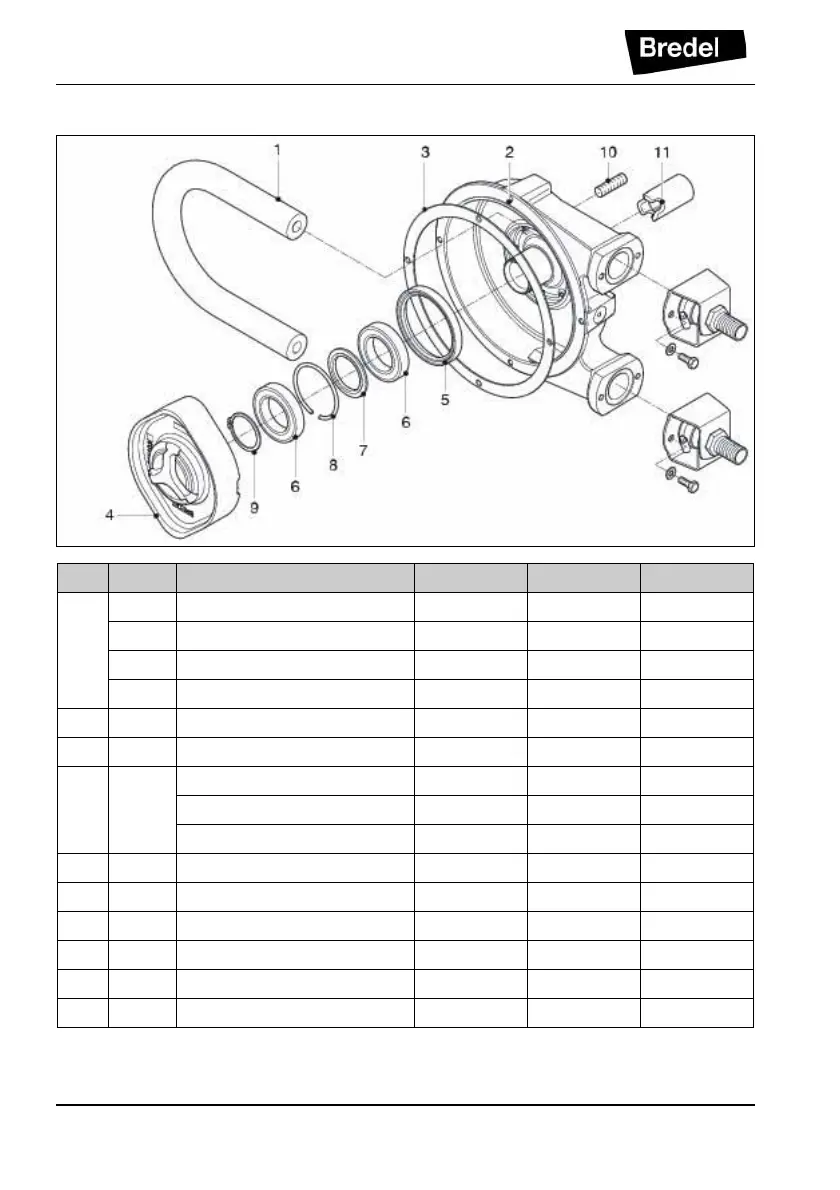

11.5.3 Pump head assembly
Pos. Qty. Description Bredel 10 Bredel 15 Bredel 20
1 1 Hose NR 010020 015020 020020
1 Hose NBR 010040 015040 020040
1 Hose EPDM 010075 015075 020075
1 Hose CSM 010070 015070 020070
2 1 Pump housing 210101 215101 215101
3 1 Gasket 210123 215123 215123
4 1 Rotor, low pressure 210103L 215103L 220103L
Rotor, medium pressure 210103H 215103H 220103H
Rotor, high pressure 210103X 215103X 220103X
5 1 Seal ring S211811 S211811 S211811
6 2 Bearing B141060 B141060 B141060
7 1 Spacer ring 29070201 29070201 29070201
8 1 Retaining ring 29080297 29080297 29080297
9 1 Circlip F343043 F343043 F343043
10 4 Stud F511001 F511001 F511001
