BRIG E340 - Console Equipment

— 17 —
Series "EAGLE" E340 E380 2378B.01

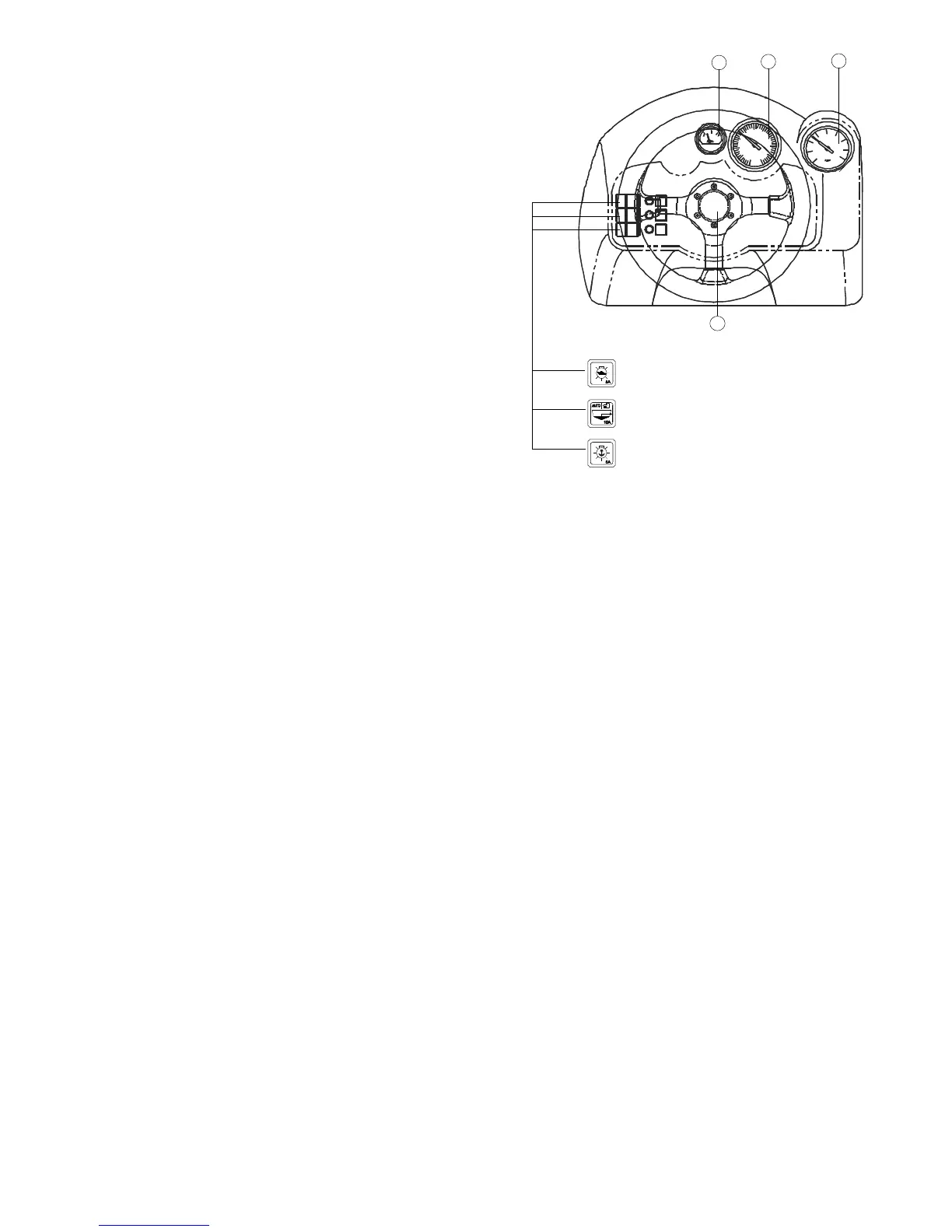

Console equipment (Fig. D6):
• steering system;
• steering system cable;
• steering wheel (1);
• analog fuel clock (2);
• speedometer (3);
• tachometer (4);
• switches and fuses:
– navigation lights and meter lamp switch (5);
– hull drain pump switch (6);
– masthead light switch (7).
Fig.D6
5
1
2
3
4
navigation lights and meter lamp switch
hull drain pump switch
masthead light switch
6
7
5
6
7
– open covers of the hatches (4) and (5), (Fig.D4);
– turn off three nuts M8 with washers 8x24 and arrester washers
8, (Fig.D5);
– hing up the overhead part of the console, (Fig.D5).
Before the exploitation of the boat hing down the overhead part of the
steering console and fix it to the lower part with the help of three nuts
M8 with washers 8x24 and arrester washers 8 (Fig.D5).
