— 16 — "BRIG" inflatable boats
Arrester washer 8
Washer 8õ24
Nut M8
Hinge
6
5
14
7
2
3
Round waterproof hatch (5) on the starboard of the console lower
part is intended to have access to fastening nuts and washers
fixing console overhead part (2) with the lower part (1). Stainless
steel handle (6) is mounted on the console overhead part. Outlet (7)
for remote control cables is located starboard near the console
lower part.
In order to have access to the inner part of the steering console
when mounting steering system, remote control box, additional
electrical equipment, etc. it is necessary:

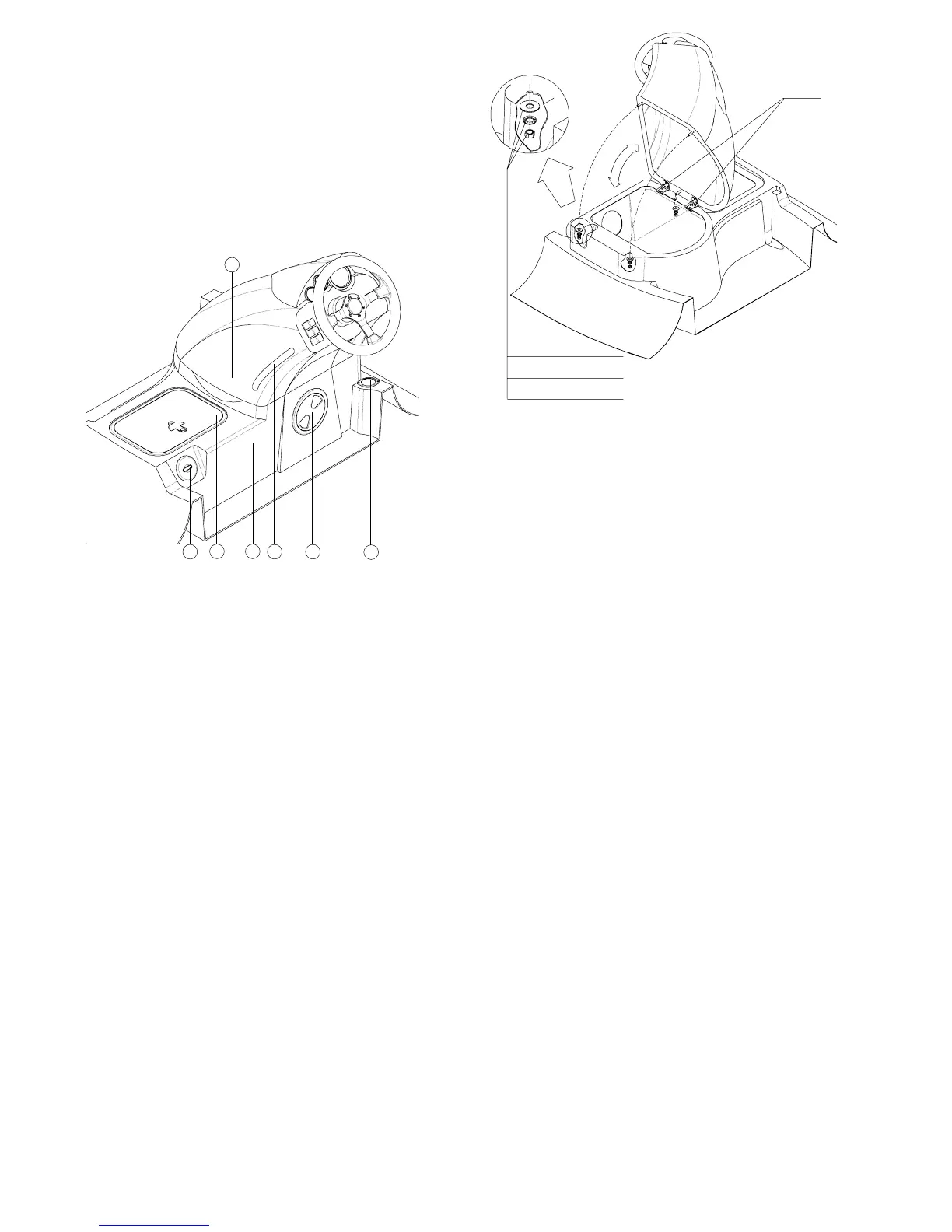

Fig.D4
Fig.D5.
Fiberglass plastic steering console is intended for plasing steering
system, remote controle box, electrical equipment. The console is
located on the starboard of the boat deck. The console consists of
the following components (Fig.D4):
– lower console part (1), integrated into the boat deck;
– moveable overhead part (2), hinged with the lower part and fixed
by means of three nuts with washers and arrester washers.
Inner compartment of the lower part of the console is provided for
plasing plastic fuel tank. On the port side of the lower part of the
console there is the fuei fill (3) and waterproof inspection hatch (4).
STEERING CONSOLE.
