Series "EAGLE" E340 E380 2378B.01
The main dimensions of E340 and E380 have tolerance of +/- 3%. All dimensions in meters.
The length of the boat with the engine can vary depending on the model of the engine and the angle of its deviation. (See Fig. T2)

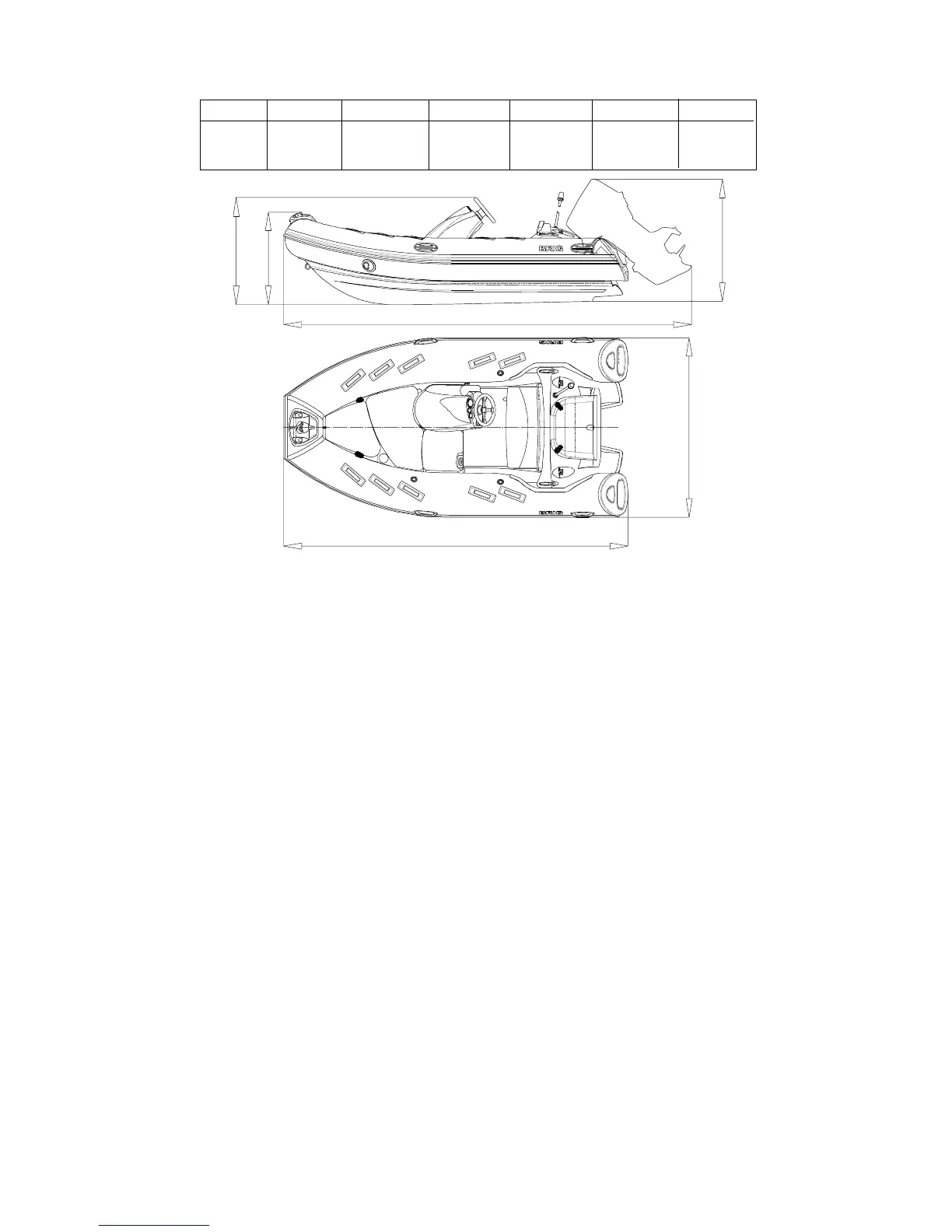

THE MAIN DIMENSIONS.
.
.
.
Fig.T1
H3
H2
H1
L2
L1
B1
L1 (m) L2 (m) H1 (m) H2 (m) H3 (m) B1 (m)
E340 4.05 3.40 1.12 0.91 1.35 1.78
E380 4.55 3.83 1.15 1.00 1.35 1.93
